Article No. 10860

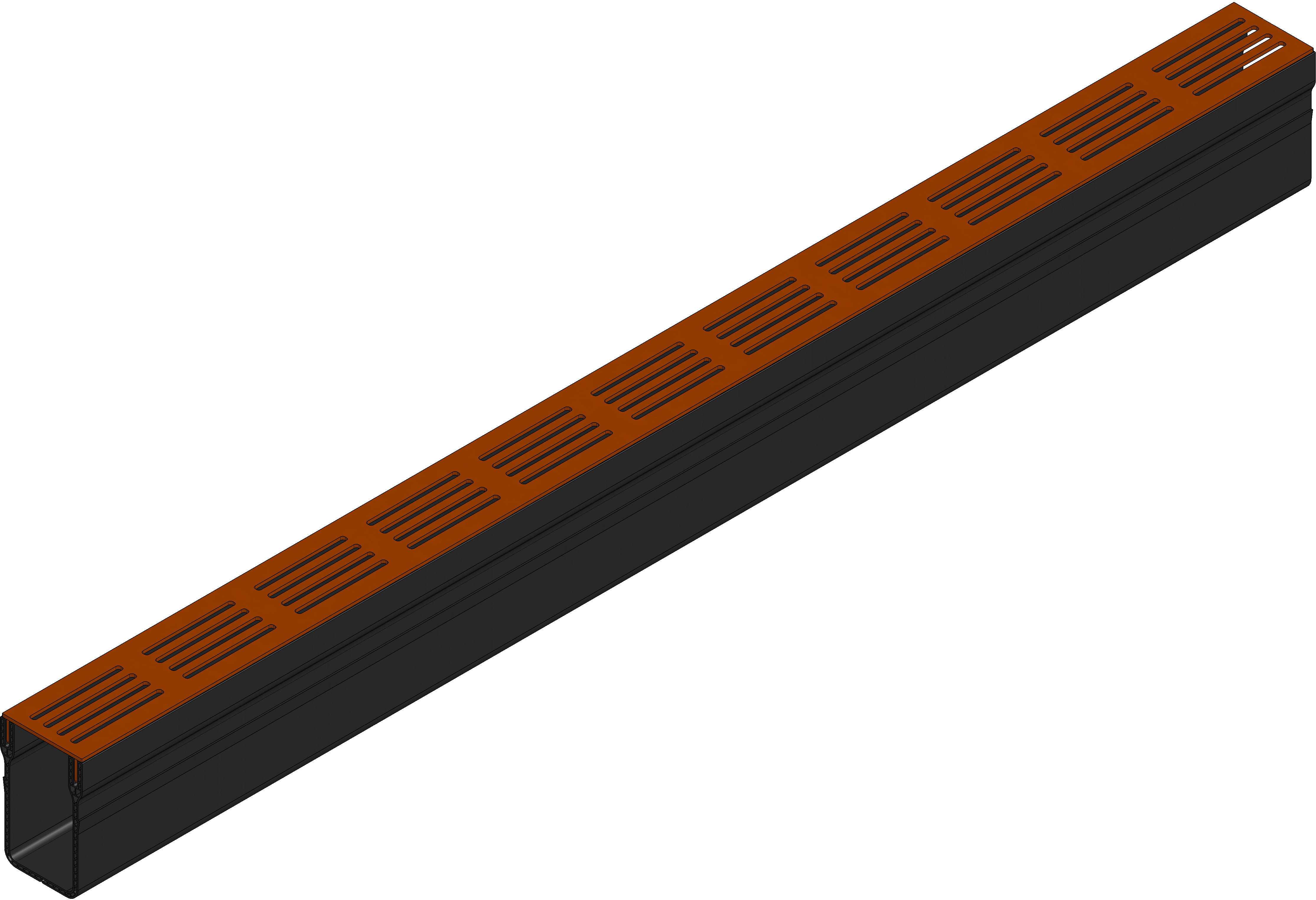

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10860
Longitud
1000 mm
Anchura
65 mm
Altura
100 mm
Peso
2.90 kg
Sección transversal de entrada
158.0 cm²/m
Ancho nominal
50
Texto comercial
HAURATON E-TEC 65 type 100 Channel made of PVC, black, with design slotted grating made of Corten steel, clipped, cl. A 15 (based on EN 1433), installation height 100 mm, 1 m
Descripción del producto
HAURATON E-TEC 65 type 100 - Channel made of PVC, black, with design slotted grating made of Corten steel, clipped, load class A 15 (based on EN 1433), LxWxH 1000x65x100 mm, item no. 10860
Unidad de embalaje
100
Tender Texts
Installation example
Installation example
