Article No. 10875

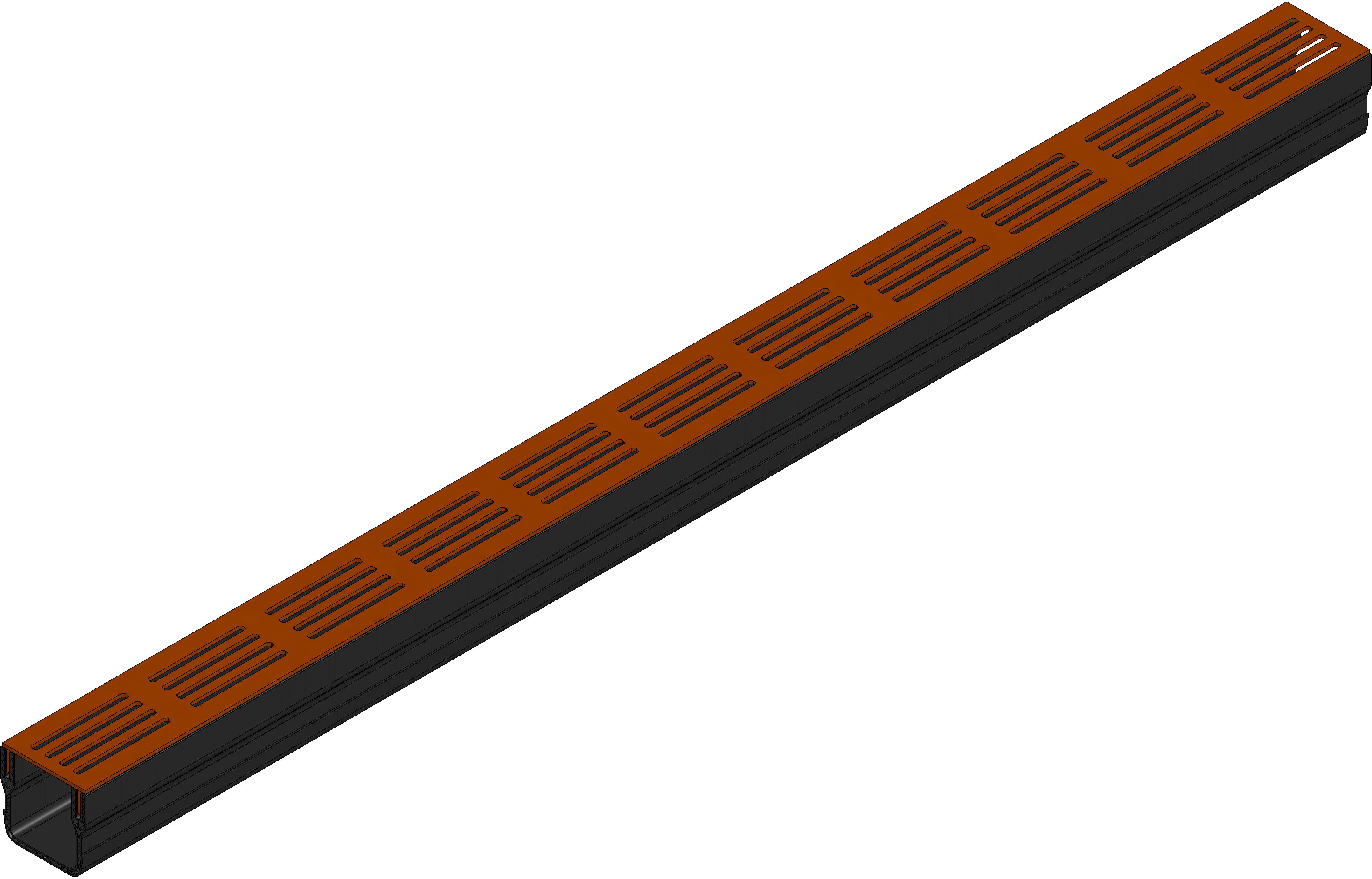

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
10875
Longitud
1000 mm
Anchura
65 mm
Altura
60 mm
Peso
2.40 kg
Sección transversal de entrada
158.0 cm²/m
Ancho nominal
50
Texto comercial
HAURATON E-TEC 65 type 60 Channel made of PVC, black, with design slotted grating made of Corten steel, clipped, cl. A 15 (based on EN 1433), installation height 60 mm, 1 m
Descripción del producto
HAURATON E-TEC 65 type 60 - Channel made of PVC, black, with design slotted grating made of Corten steel, clipped, load class A 15 ( based on EN 1433), LxWxH 1000x65x60 mm, item no. 10875
Unidad de embalaje
100
Tender Texts
Installation example
Installation example
