Article No. 12336
URBANTEC class A 15
Type 80 with heelsafe grating SW 6 mm, made of composite, black, 1.0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

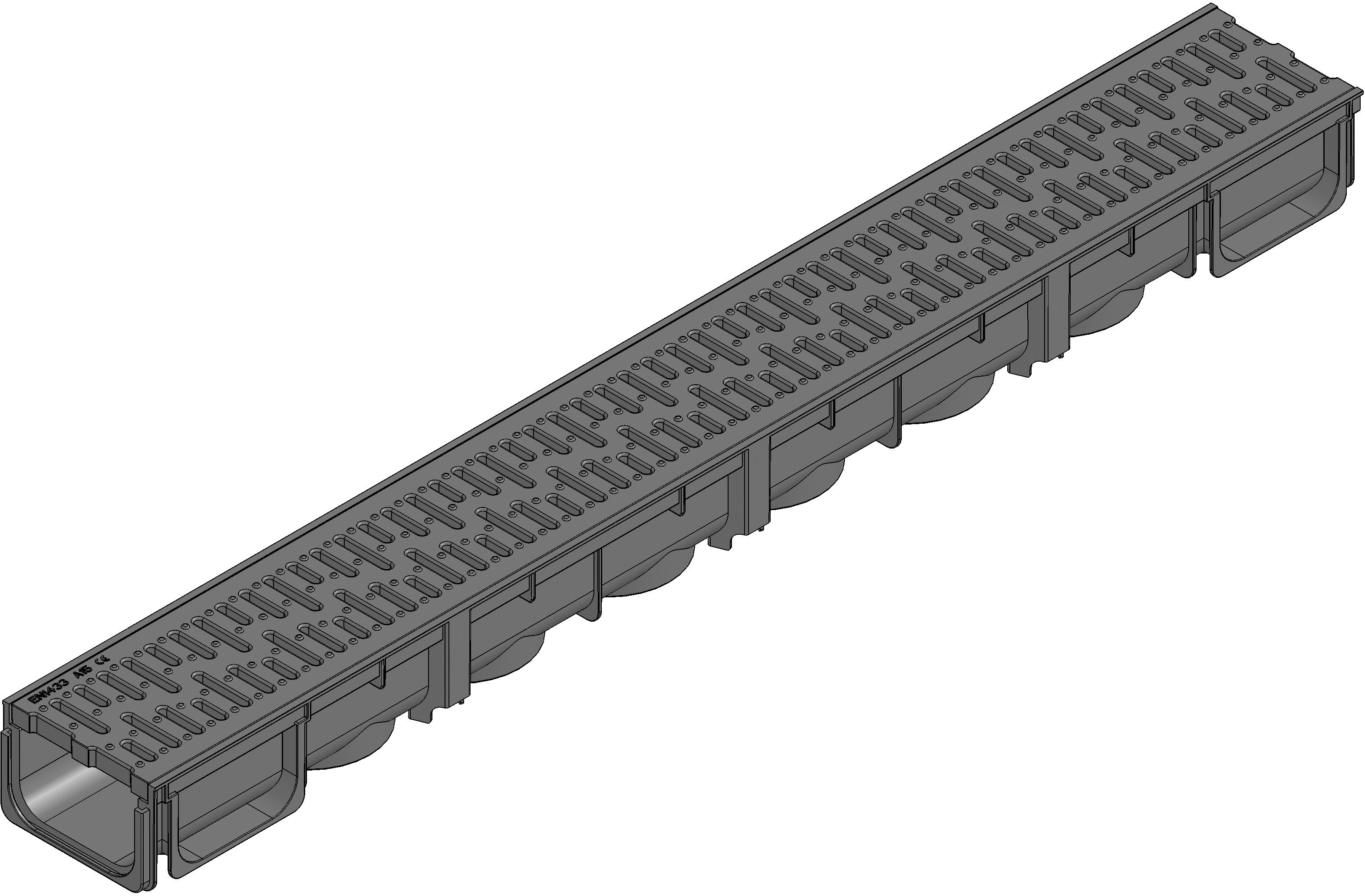

Product image

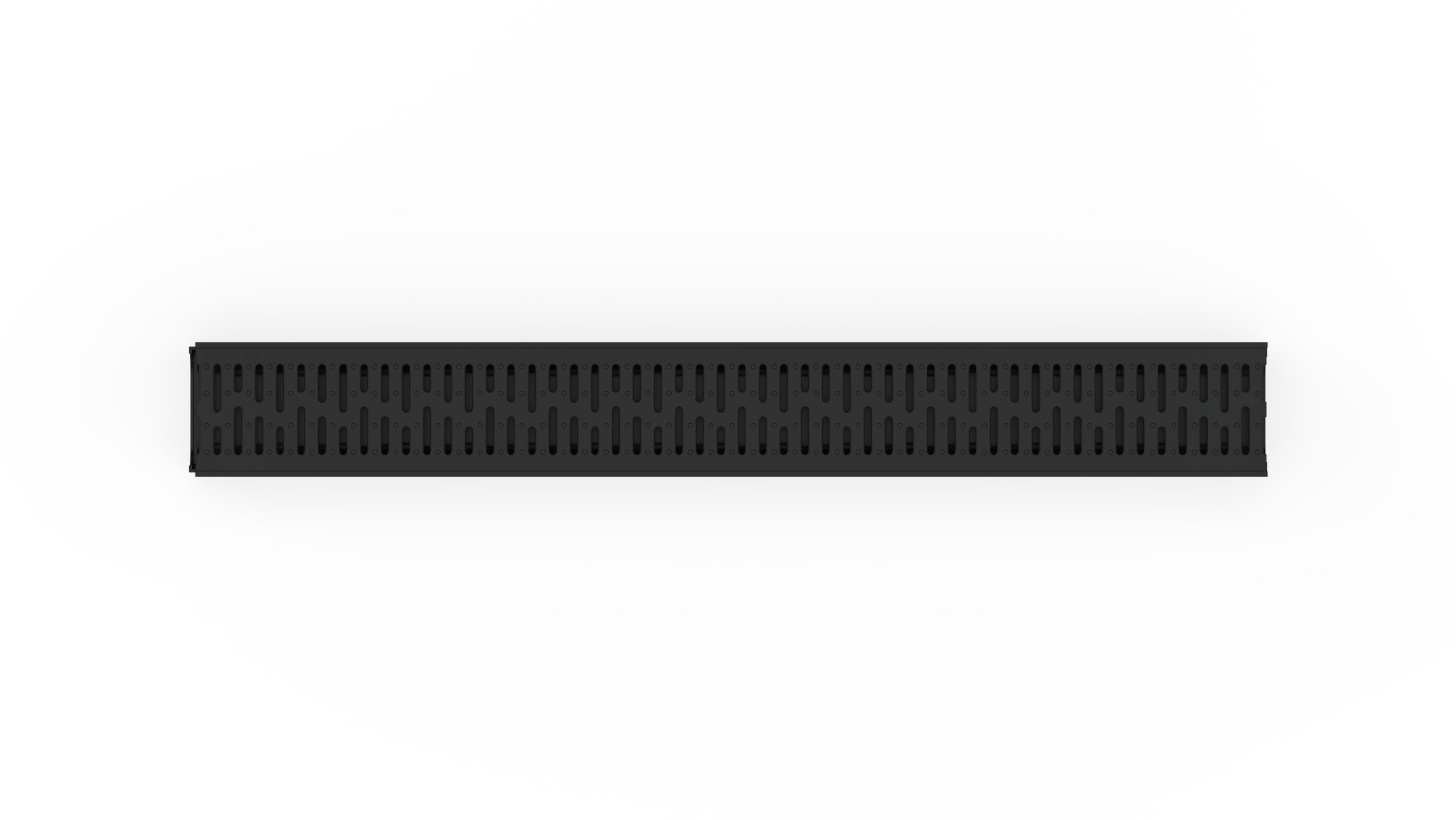

Top view

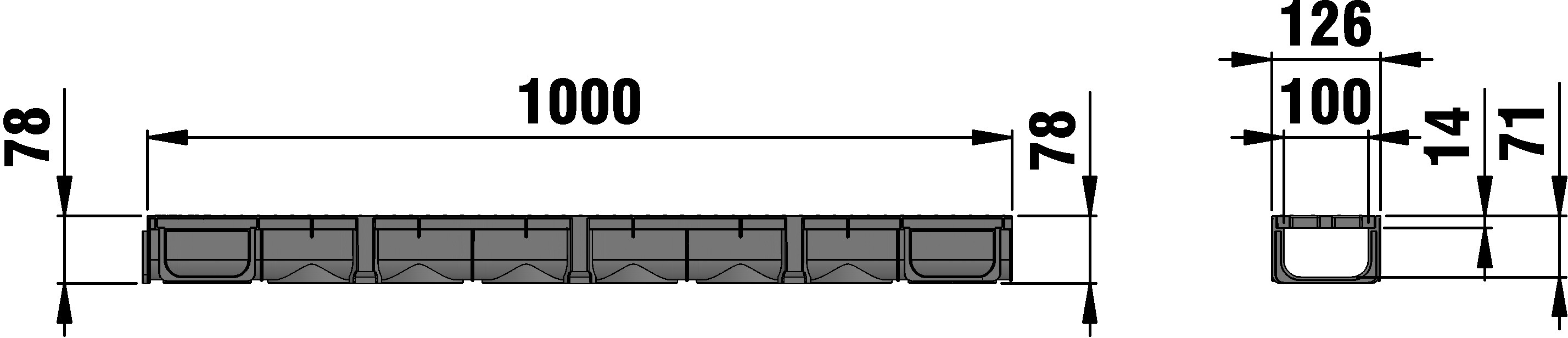

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
12336
Length
1000 mm
Width
126 mm
Height
78 mm
Weight
1.36 kg
Intake cross-section
204.0 cm²/m
Nominal size
100
Type according to DIN EN 1433
not specified
Sales text
URBANTEC 100 Channel type 80 with heelsafe grating SW 6 mm, made of composite, black, cl. A 15, 1 m
Product description
URBANTEC 100 Channel type 80 with heelsafe grating, slot width 6 mm, made of composite, black, cl. A 15, 1 m, item no. 12336
Packaging unit
-
