Article No. 12124
sump unit for partial flow treatment
for NW 400, 2-part, for partial flow treatment, with PVC-U socket DN/OD 200in the direction of the flow, with all-round edge frame made of galvanised steel, with silt bucket made of galvanised steel, 0.39 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

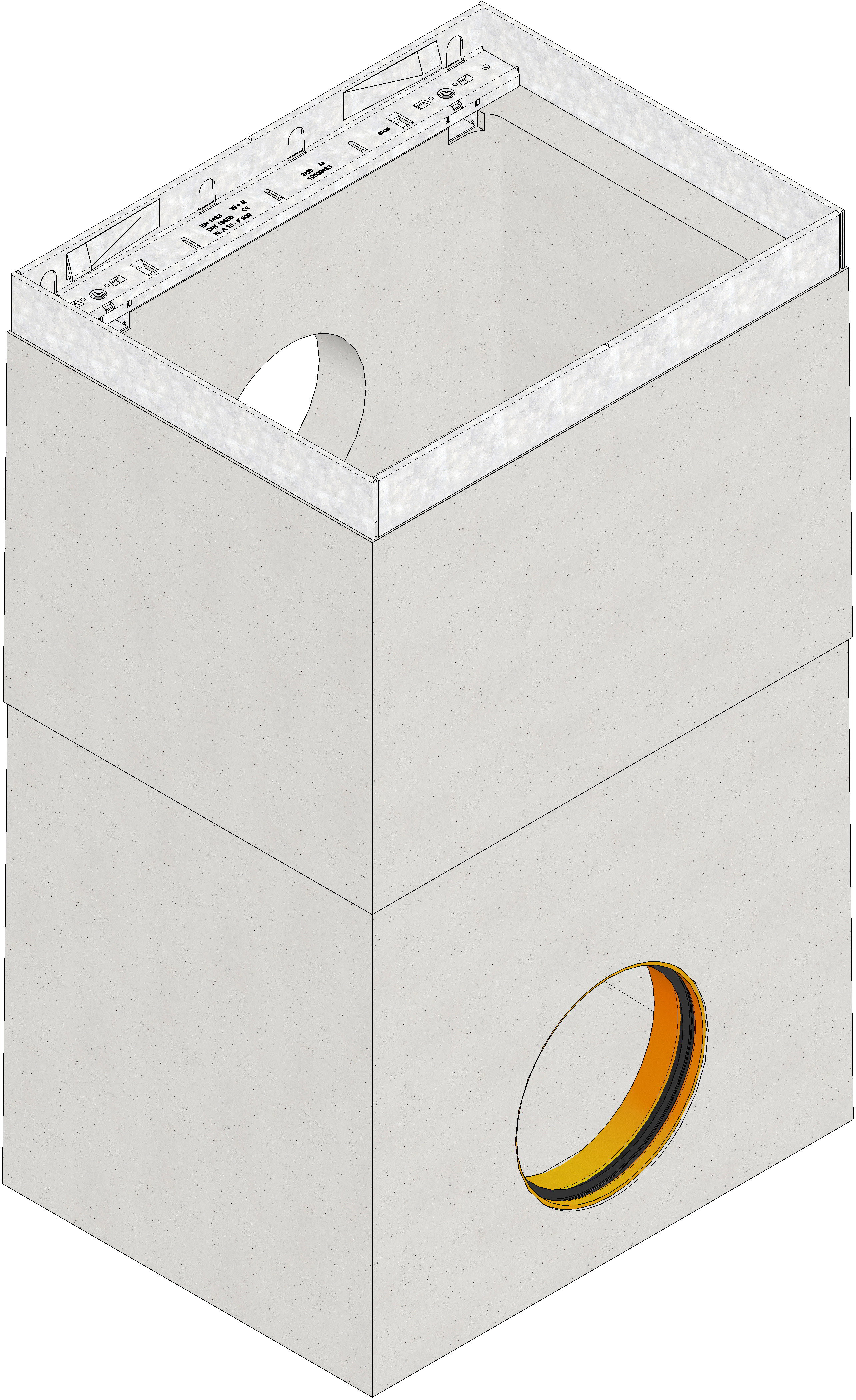

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
12124
Length
390 mm
Width
510 mm
Height
850 mm
Weight
180.64 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Nominal size
400
Sales text
Sump unit, 2-part, for partial flow treatment, with PVC-U socket DN/OD 200 in the direction of flow, with opening DN/OD 160 for PVC-U pipe outlet of the overflow, with all-round edge frame made of galvanised steel, with silt bucket made of galvanised stee
Product description
DRAINFIX CLEAN FSU 400 - Sump unit, 2-part, for partial flow treatment, with opening DN/OD 160 for PVC-U bent of the overflow, made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with all-round edge frame made of galvanised steel and boltless quick-locking system SIDE-LOCK, 4-fold locking, one-sided connection possibility with integrated PVC-U socket DN/OD 200 in the direction of flow, with removable silt bucket made of galvanised steel, suitable for both-sided connection of all channel types DRAINFIX CLEAN FSU 300, LxWxH 390x510x850 mm, item no. 12124
Packaging unit
-
