Article No. 12122
sump unit for partial flow treatment
for NW 300, 2-part, for partial flow treatment, with PVC-U socket DN/OD 200 in flow direction left, with all-round edge frame made of galvanised steel, with silt bucket made of galvanised steel, 0.51 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

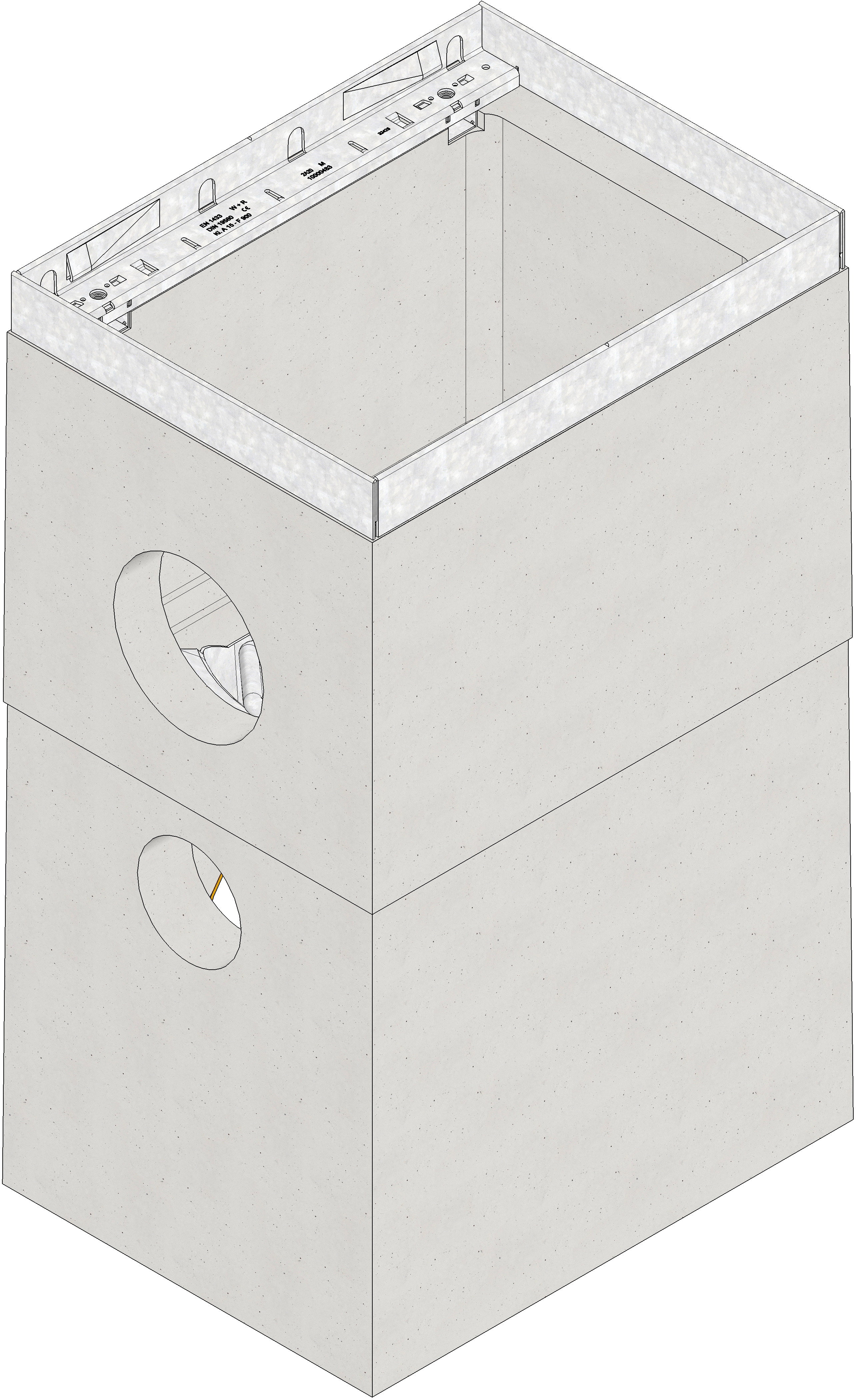

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
12122
Length
510 mm
Width
390 mm
Height
850 mm
Weight
180.64 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Nominal size
300
Sales text
Sump unit, 2-part, for partial flow treatment, with PVC-U socket DN/OD 200 in flow direction left, on the front side with opening DN /OD 160 for PVC-U pipe outlet of the overflow, with all-round edge frame made of galvanised steel, with silt bucket made o
Product description
DRAINFIX CLEAN FSU 300 - Sump unit, 2-part, for partial flow treatment, on the front side with opening DN/OD 160 for PVC-U bent of the overflow, made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with all-round edge frame made of galvanised steel and boltless quick-locking system SIDE-LOCK, 4-fold locking, one-sided connection possibility with integrated PVC-U socket DN/OD 200 in flow direction left, with removable silt bucket made of galvanised steel, suitable for both-sided connection of all channel types DRAINFIX CLEAN FSU 300, LxWxH 510x390x850 mm, item no. 12122
Packaging unit
-
