Article No. 97561
sump unit
for NW 500, 2-part, with edge frames made of galvanised steel and silt bucket made of galvanised steel, with ductile iron grating closed, KTL-coated, 1.0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

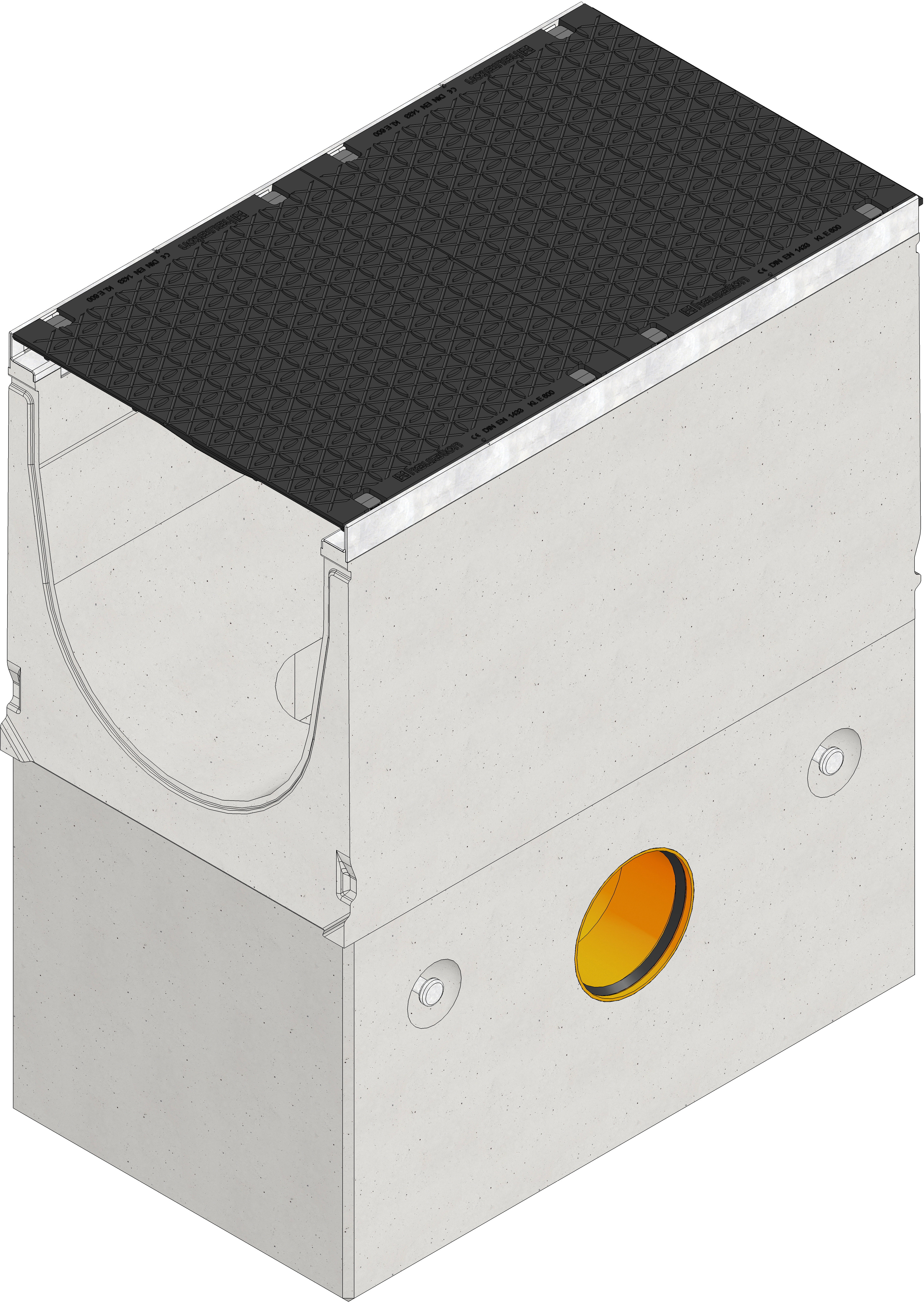

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
97561
Length
1000 mm
Width
590 mm
Height
1180 mm
Einlegetiefe
40 mm
Weight
1118.00 kg
Material
Ductile iron GJS 500-7, fibre-reinforced concrete, Steel with zinc-magnesium coating
Intake cross-section
0.0 cm²/m
Nominal size
500
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Sump unit, 2-part, with edge frames made of galvanised steel, with ductile iron grating closed, KTL-coated, cl. E 600, with silt bucket made of galvanised steel, DRAINFIX CLEAN FSU 500, 1 m
Product description
DRAINFIX CLEAN FSU 500 - Sump unit, 2-part, made of fibre-reinforced concrete, with edge frames made of galvanised steel, with removable silt bucket made of galvanised steel, one-sided connection possibility (lateral) with integrated PVC-U socket DN/OD 200, ductile iron grating, closed, made of spheroidal ductile iron GJS 500-7, KTL-coated, load class A 15 - E 600 according to EN 1433, with longitudinal slide protection, 4-fold locking, suitable for both-sided connection of channels type DRAINFIX CLEAN FSU 500 type 01, LxWxH 1000x590x1180 mm, item no. 97561
Packaging unit
-
