Article No. 14054
sump unit
for NW 300, 2-part, with edge frames made of galvanised steel and silt bucket made of galvanised steel, with PVC-U pipe DN/OD 200, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

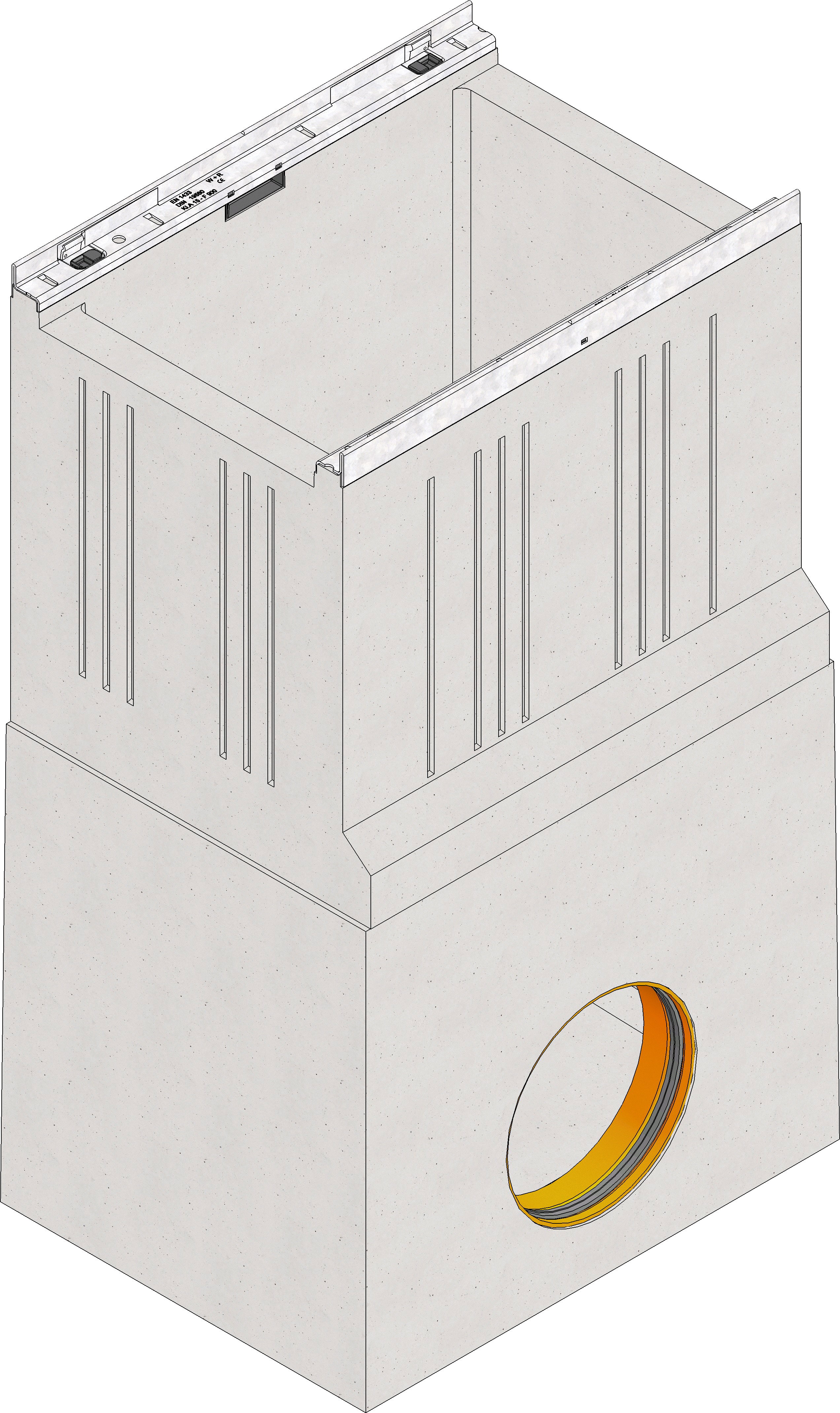

Product image
Technical drawing
Drawing
Drawing (CAD)
Technical information and metrics
Article No.
14054
Length
500 mm
Width
360 mm
Height
881 mm
Weight
178.50 kg
Material
fibre-reinforced concrete, strip galvanized steel
Nominal size
300
Regulations
EN 1433, DIN 19580
Sales text
Sump unit, 2-part, with edge frames made of galvanised steel, with silt bucket made of galvanised steel, FASERFIX KS 300, 0.5 m
Product description
FASERFIX KS 300 - Sump unit, 2-part, made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with edge frames made of galvanised steel and boltless quick-locking system SIDE-LOCK for quick and easy installation of the grating , 4-fold locking, one-sided connection possibility with integrated PVC-U socket DN/OD 200, with removable silt bucket made of galvanised steel, suitable for both-sided connection of all channel types FASERFIX KS 300, LxWxH 500x360x881 mm, item no. 14054
Packaging unit
6
