Article No. 40080
sump unit
for NW 300, with edge framed made of galvanised steel and silt bucket made of recycled PP, with GUGI ductile iron mesh grating MS 15 /25 mm, black, class C 250, locked, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

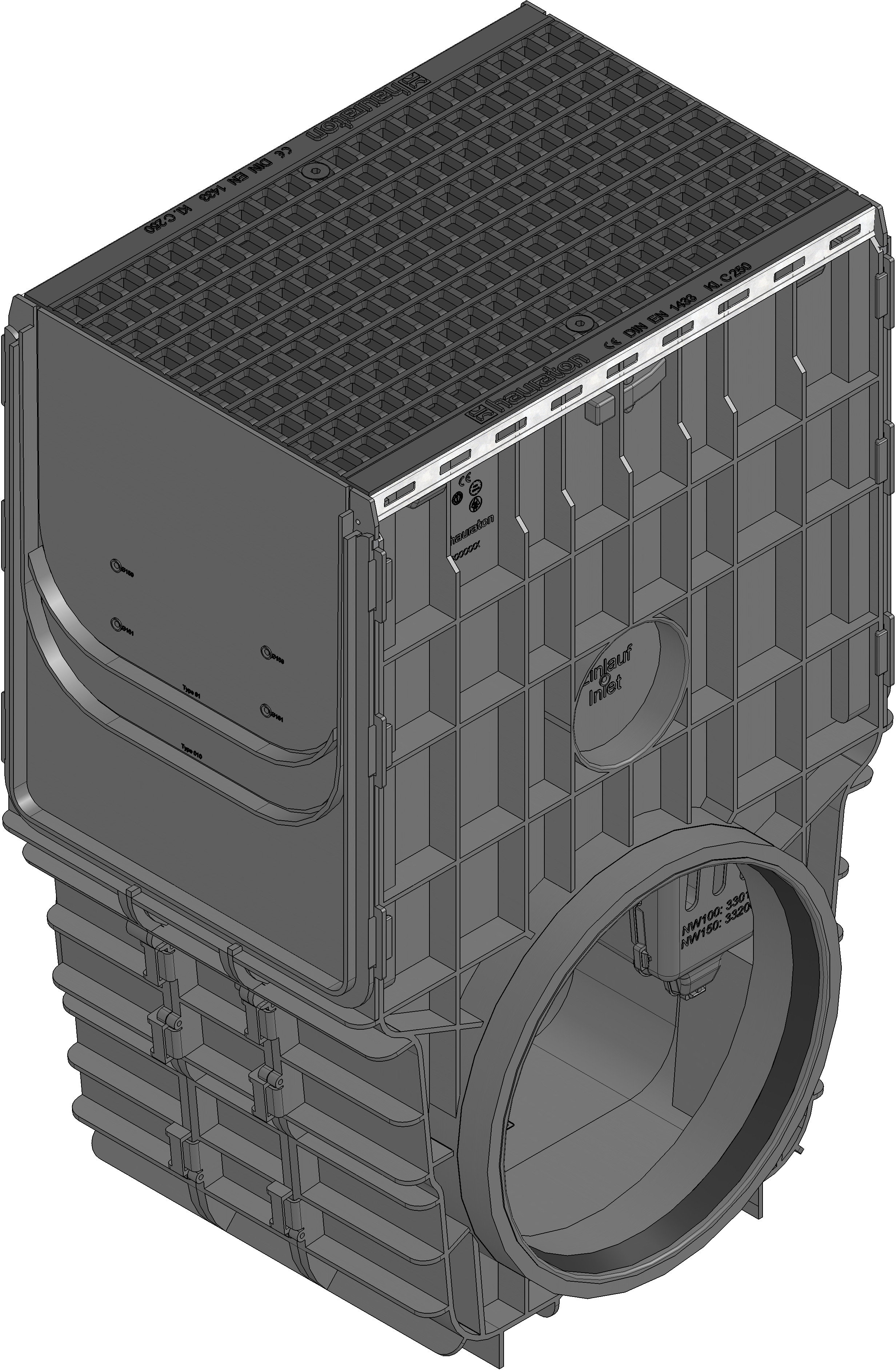

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
40080
Length
500 mm
Width
362 mm
Height
801 mm
Einlegetiefe
6 mm
Weight
23.88 kg
Material
Ductile iron GJS 500-7, recycled polypropylene, Steel black galvanised, strip galvanized steel
Intake cross-section
1325.0 cm²/m
Nominal size
300
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with edge frames made of galvanised steel, GUGI-ductile iron mesh grating MS 15/25 mm, black, cl. C 250, locked, with silt bucket made of recycled PP, with 2 end caps made of recycled PP, RECYFIX PLUS 300, 0.5 m
Product description
RECYFIX PLUS 300 - Sump unit made of recycled polypropylene, with edge frame made of galvanised steel, on both sides preformed pipe connection element DN/OD 315, with removable silt bucket made of recycled polypropylene, with 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX PLUS 300, GUGI-ductile iron mesh grating MS 15/25 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 500x362x801 mm, item no. 40080
Packaging unit
4
