Article No. 10719
sump unit
for NW 300, for Type 020, 2-part, with edge frames made of galvanised steel and silt bucket made of galvanised steel, with opening Ø 282 mm in top part, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

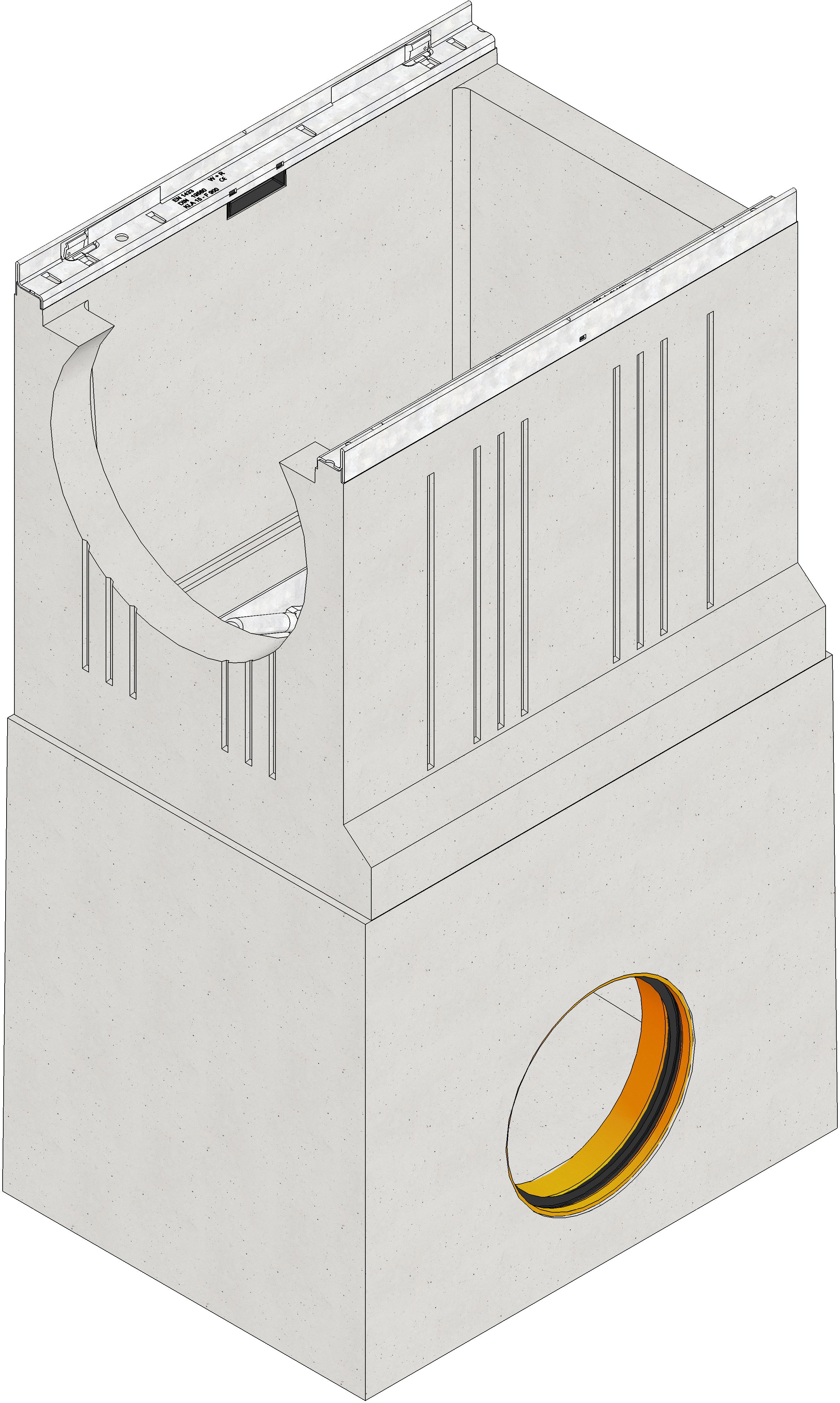

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10719
Length
500 mm
Width
360 mm
Height
881 mm
Weight
164.89 kg
Material
fibre-reinforced concrete, hot-dip galvanised steel, strip galvanized steel
Nominal size
300
Sales text
Sump unit type 010, 2-part, with edge frames made of galvanised steel, with silt bucket made of galvanised steel, with opening Ø 282 mm in top part for connection of channel FASERFIX KS 300 type 010, 0.5 m
Product description
FASERFIX KS 300 type 010 - Sump unit, 2-part, made of fibre-reinforced concrete, with opening Ø 282 mm for connection of channel FASERFIX KS 300 type 010, load class A 15 - F 900 according to EN 1433, CE compliant, with edge frames made of galvanised steel and boltless quick-locking system SIDE-LOCK, 4-fold locking, one-sided connection possibility with integrated PVC-U socket DN/OD 200, with removable silt bucket made of galvanised steel, LxWxH 500x360x881 mm, item no. 10719
