Article No. 10730
sump unit
for NW 200, for Type 110 / 150 / 200 and Type 01 - 010, with edge frames made of galvanised steel and silt bucket made of recycled PP, with PVC-U pipe outlet DN/OD 315, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

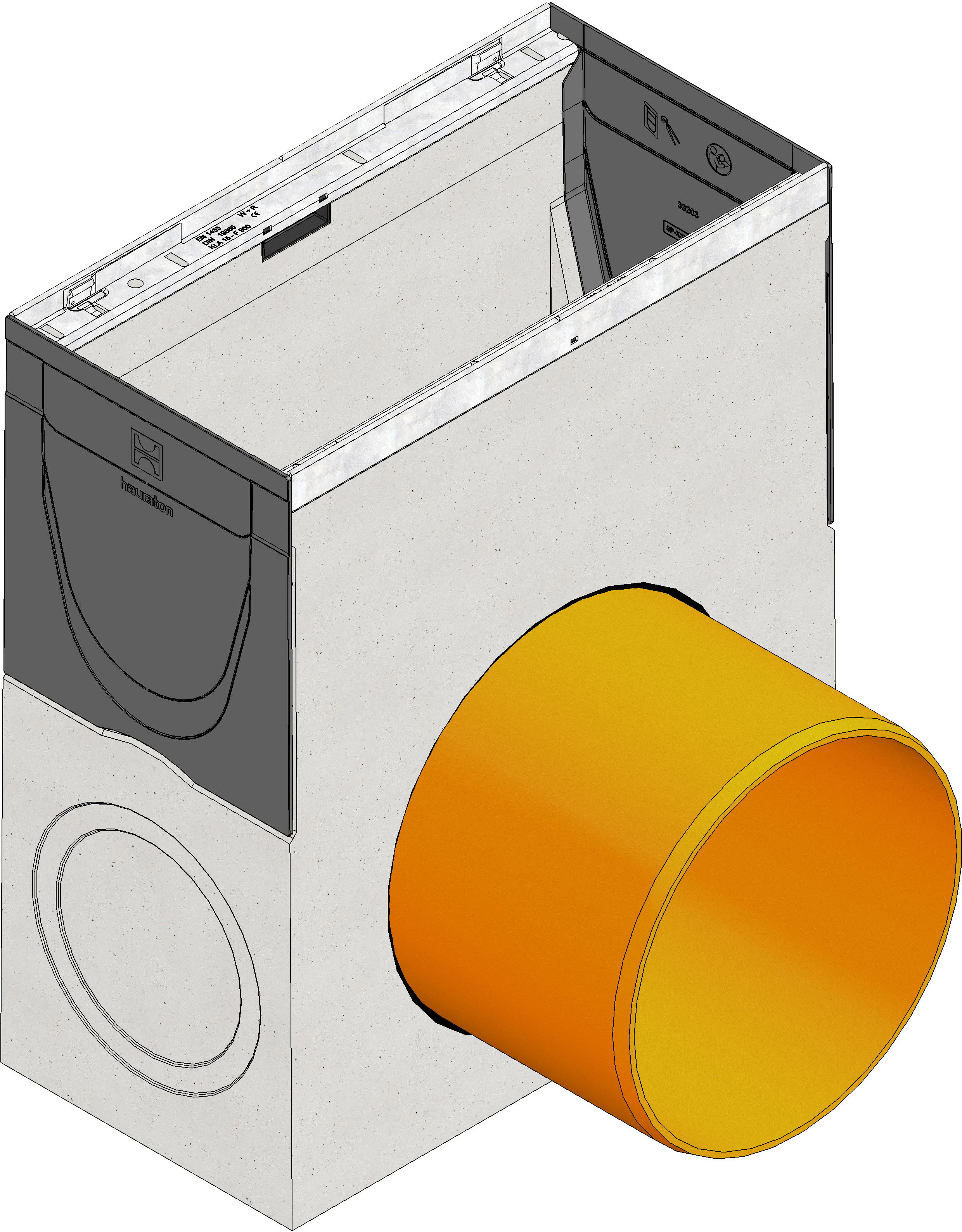

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10730
Length
500 mm
Width
260 mm
Height
603 mm
Weight
70.80 kg
Material
fibre-reinforced concrete, PVC-U, strip galvanized steel
Nominal size
200
Sales text
Sump unit with edge frames made of galvanised steel, lateral with integrated PVC-U pipe outlet DN/OD 315, with silt bucket made of recycled PP and two end caps made of recycled PP, for channels type 110/150/200 as well as for type 01 - 010 FASERFIX KS 200
Product description
FASERFIX KS 200 type 010 - Sump unit made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with edge frames made of galvanised steel and boltless quick-locking system SIDE-LOCK, 4-fold locking, connection possibility DN/OD 160/200 on front and end side and lateral with integrated PVC-U pipe outlet DN/OD 315, with silt bucket made of recycled polypropylene and two end caps made of recycled polypropylene, suitable for both-sided connection of channel types 110/150/200 and 01 - 010, easy to assemble on site, LxWxH 500x260x603 mm, item no. 10730
Packaging unit
4
