Article No. 10547
sump unit
for NW 150, for type 110 / 150 / 200 and type 01 - 010, treated with WHG-approved sealant, lateral with PE-HD socket DN/OD 160, with edge framed made of galvanised steel and silt bucket made of recycled PP, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

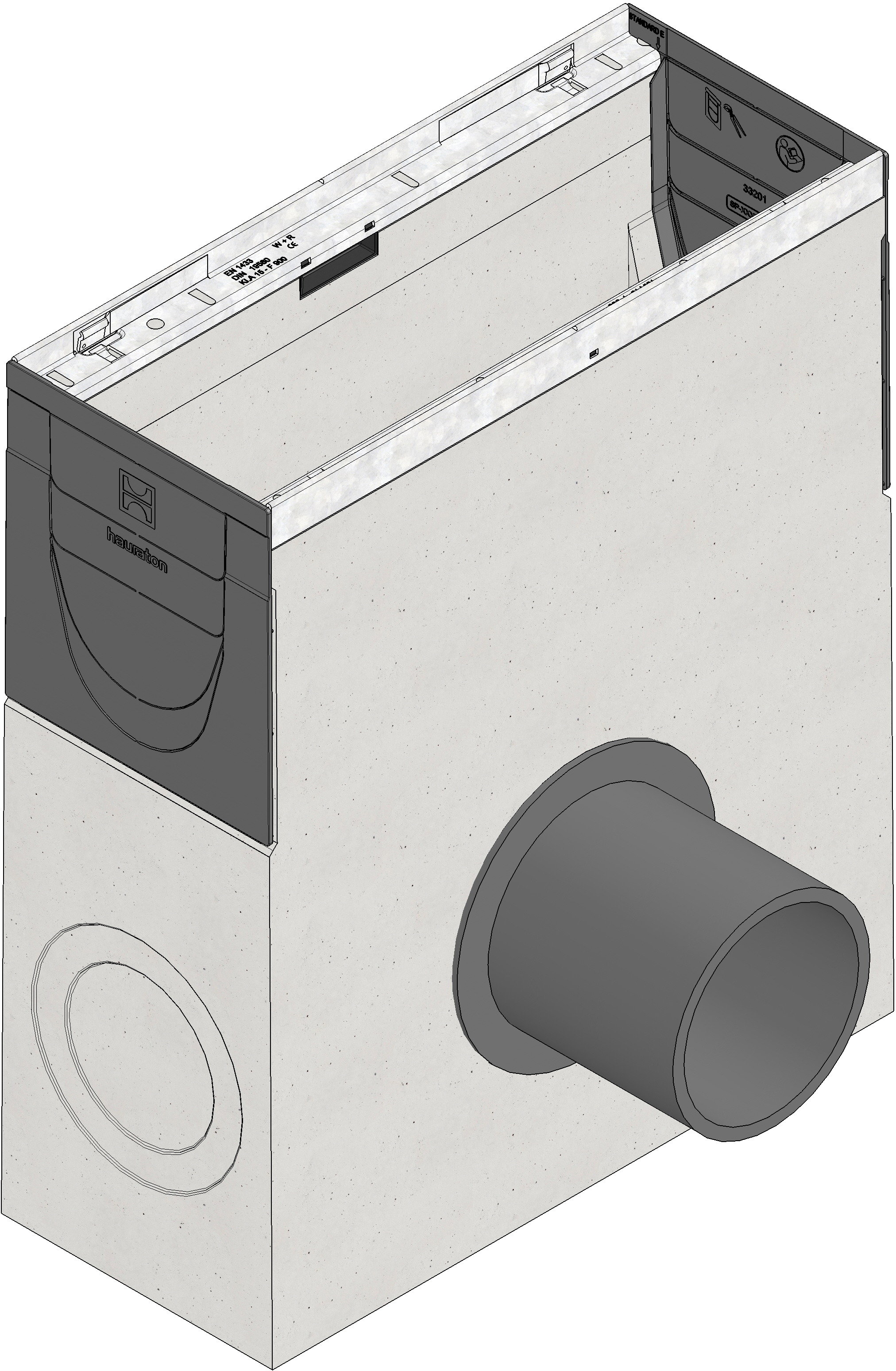

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10547
Length
500 mm
Width
210 mm
Height
603 mm
Weight
-
Material
fibre-reinforced concrete, strip galvanized steel
Nominal size
150
Sales text
Sump unit with edge frames made of galvanised steel, treated with WHG-approved sealant, lateral with PE-HD-outlet DN/OD 160, with silt bucket made of recycled PP and two end caps made of recycled PP, for channels type 110/150/200 as well as type 01 - 010,
Product description
FASERFIX KS 150 - Sump unit type 010 made of fibre-reinforced concrete, treated with WHG-approved sealant, load class A 15 - F 900 according to EN 1433, CE compliant, with edge frames made of galvanised steel and boltless quick-locking system SIDE-LOCK, 4-fold locking, on both front sides connection possibility DN/OD 110 and DN/OD 160 and on the side with integrated PE-HD pipe outlet DN/OD 160, with silt bucket made of recycled polypropylene and 2 end caps made of recycled polypropylene suitable for both-sided connection of channel types 110/150/200 and type 01 - 010, easy to assemble on site, LxWxH 500x220x603 mm, item no. 10547
Packaging unit
-
