Article No. 48058
sump unit
for NW 100, with silt bucket made of recycled PP, with mesh grating, MS 30/10 mm, class B 125, locked, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

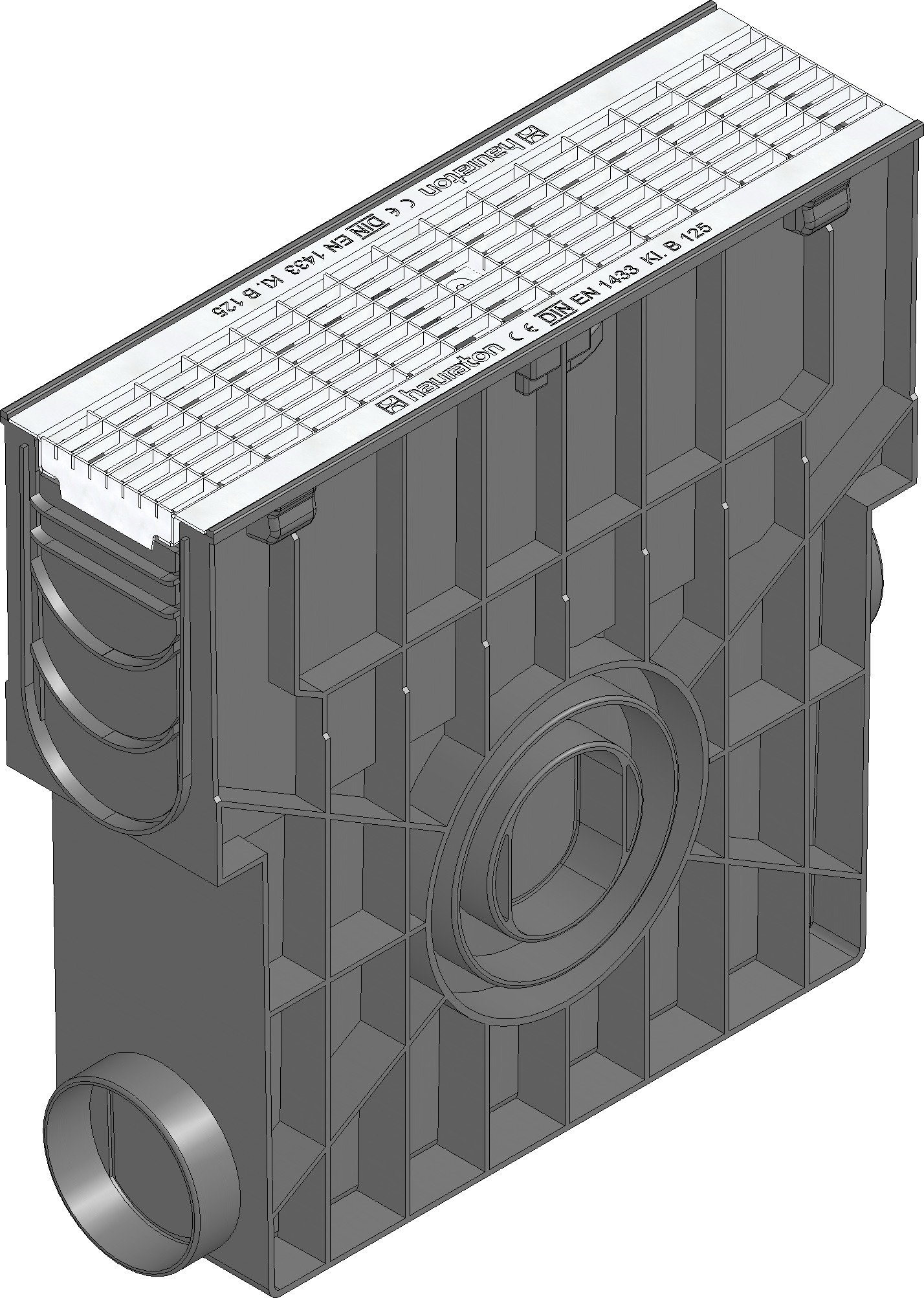

Product image
Technical drawing
Drawing
Drawing (CAD)
Top view
Technical information and metrics
Article No.
48058
Length
500 mm
Width
150 mm
Height
488 mm
Einlegetiefe
2 mm
Weight
5.57 kg
Material
recycled polypropylene, RECYFIX Material (recycled PA), Stainless steel 1.4301
Intake cross-section
735.0 cm²/m
Nominal size
100
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with mesh grating MS 30/10 mm, stainless steel, cl. B 125, locked, with silt bucket made of recycled PP, RECYFIX STANDARD 100 , 0.5 m
Product description
RECYFIX STANDARD 100 - Sump unit, made of recycled polypropylene, according to EN 1433, 4-sided connection possibility (on the front side DN/OD 110, on the side DN/OD 110/160), with removable silt bucket made of recycled polypropylene, suitable for both-sided connection of all channel types RECYFIX STANDARD 100, with mesh grating MS 30/10 mm, stainless steel CNS 1.4301, overlying, with locking, load class B 125 according to EN 1433, LxWxH 500x150x488 mm, item no. 48058
Packaging unit
28
