Article No. 48059
sump unit
for NW 100, with silt bucket made of recycled PP, with mesh grating MS 30/10 mm, cl. B 125, locked, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

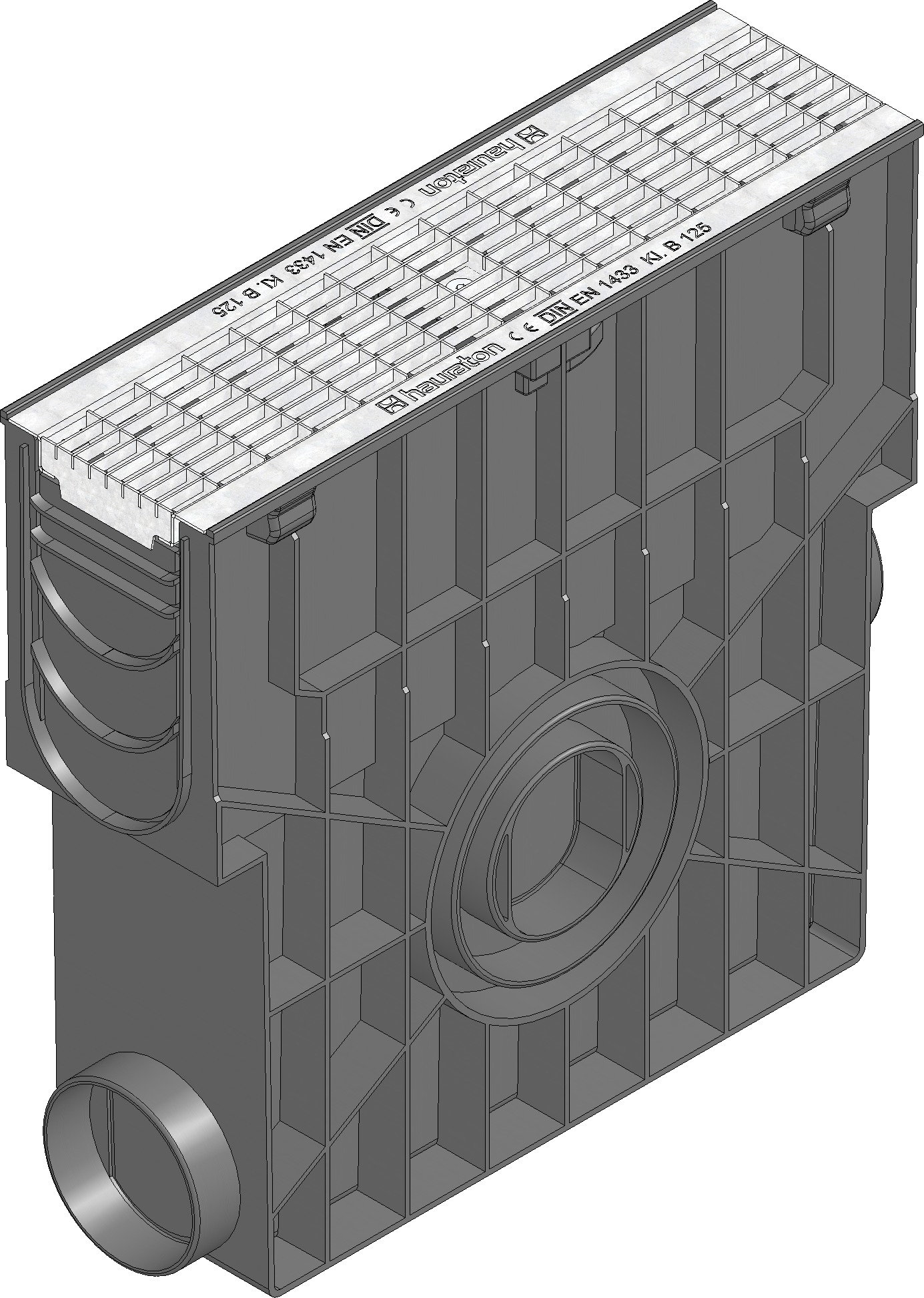

Product image
Technical drawing
Drawing
Drawing (CAD)
Top view
Technical information and metrics
Article No.
48059
Length
500 mm
Width
150 mm
Height
488 mm
Einlegetiefe
2 mm
Weight
5.80 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled polypropylene, RECYFIX Material (recycled PA)
Intake cross-section
735.0 cm²/m
Nominal size
100
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with mesh grating MS 30/10 mm, galvanised, cl. B 125, locked, RECYFIX STANDARD 100, 0.5 m
Product description
RECYFIX STANDARD 100 - Sump unit, made of recycled polypropylene, according to EN 1433, 4-sided connection possibility (on the front side DN/OD 110, on the side DN/OD 110/160), with removable silt bucket made of recycled polypropylene, suitable for both-sided connection of all channel types RECYFIX STANDARD 100, with mesh grating MS 30/10 mm, galvanised, overlying, with locking, load class B 125 according to EN 1433, LxWxH 500x150x488 mm, item no. 48059
Packaging unit
28
