Article No. 48054
sump unit
for NW 100, with silt bucket made of recycled PP, with ductile iron grating SW 80/6 mm, black, class C 250, locked, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

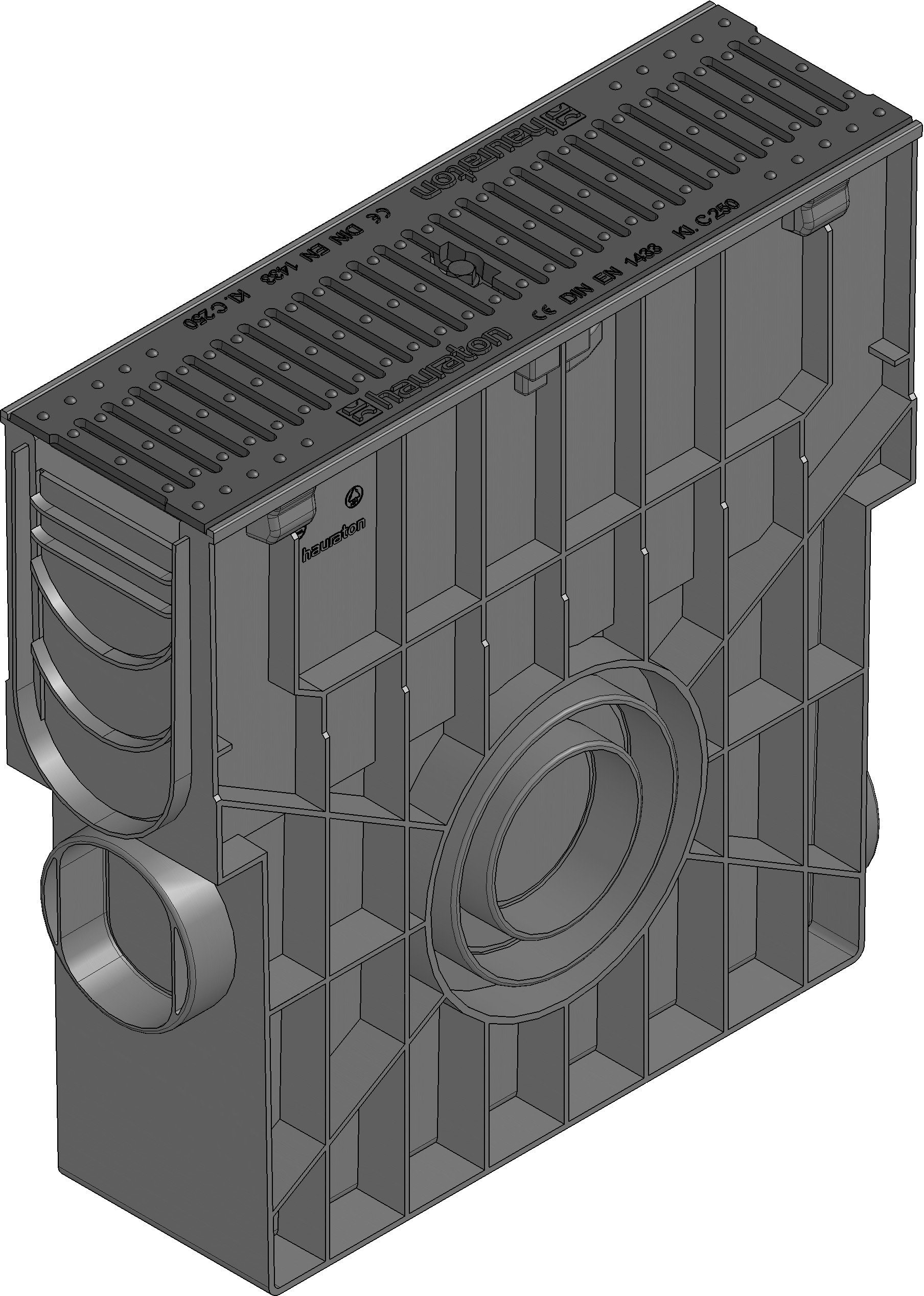

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
48054
Length
500 mm
Width
150 mm
Height
488 mm
Einlegetiefe
6 mm
Weight
7.45 kg
Material
Ductile iron GJS 500-7, recycled polypropylene, RECYFIX Material (recycled PA), Steel black galvanised
Intake cross-section
254.0 cm²/m
Nominal size
100
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 51130, AS 4586, DIN 19580, EN 16165
Sales text
Sump unit with ductile iron grating SW 80/6 mm, black, cl. C 250, locked, with silt bucket made of recycled PP, RECYFIX STANDARD 100 , 0.5 m
Product description
RECYFIX STANDARD 100 - Sump unit, made of recycled polypropylene, according to EN 1433, 4-sided connection possibility (on the front side DN/OD 110, on the side DN/OD 110/160), with removable silt bucket made of recycled polypropylene, suitable for both-sided connection of all channel types RECYFIX STANDARD 100, with ductile iron grating SW 80/6 mm, made of spheroidal ductile iron GJS 500-7, black, overlying, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 500x150x488 mm, item no. 48054
Packaging unit
28
