Article No. 41454
sump unit
for NW 100, with edge frames made of galvanised steel and silt bucket made of recycled PP, with perforated grating Ø 6 mm, galvanised, class A 15, locked, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

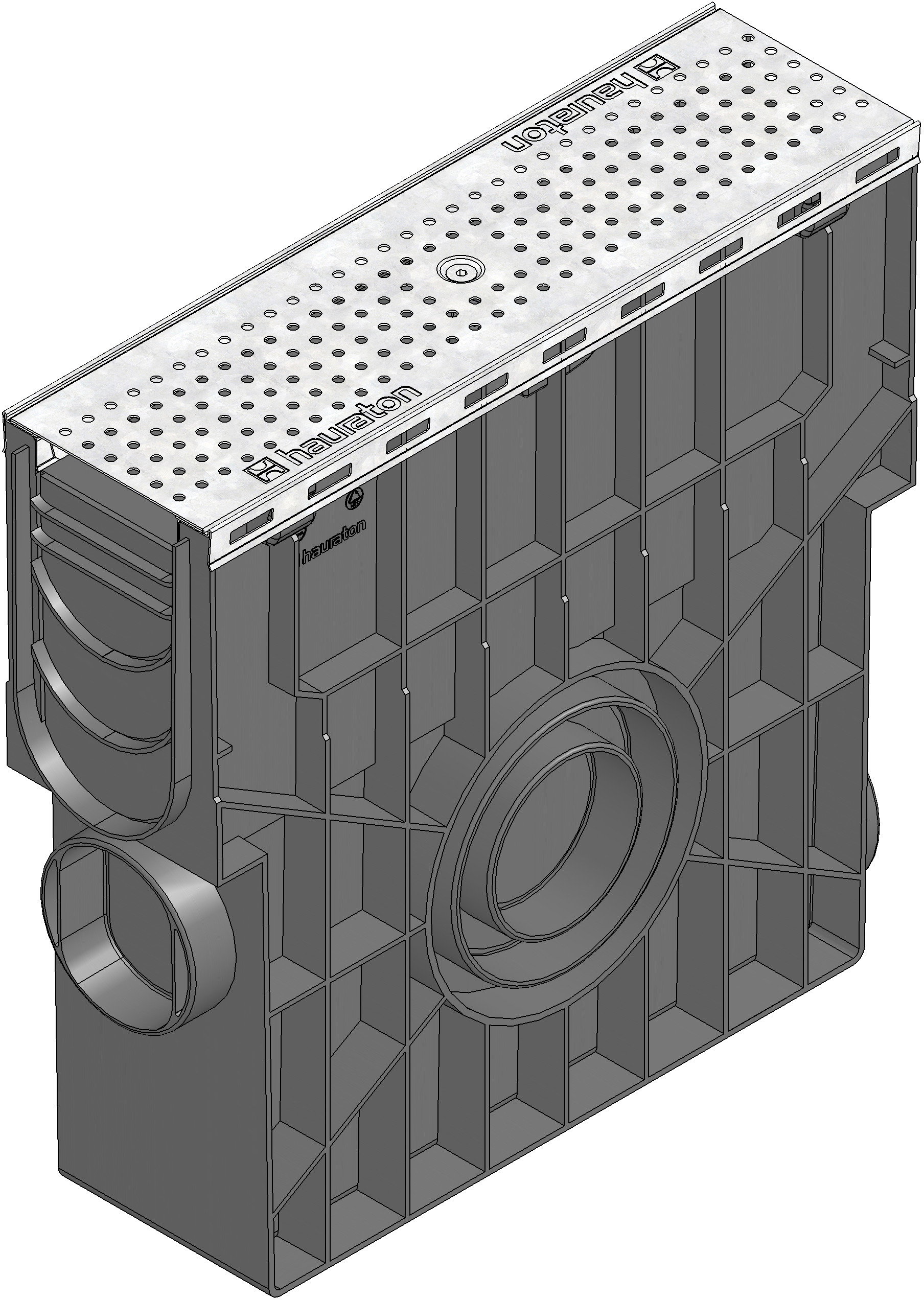

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
41454
Length
500 mm
Width
147 mm
Height
489 mm
Einlegetiefe
3 mm
Weight
5.87 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled polypropylene, RECYFIX Material (recycled PA), strip galvanized steel
Intake cross-section
100.0 cm²/m
Nominal size
100
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with edge frames made of galvanised steel, with perforated grating Ø 6 mm, galvanised, cl. A 15, locked, with silt bucket made of recycled PP, RECYFIX PLUS 100, 0.5 m
Product description
RECYFIX PLUS 100 - Sump unit made of recycled polypropylene, with edge frames made of galvanised steel, 4-sided connection possibility (on the front sides DN/OD 110, on the sides DN/OD 110/160), with removable silt bucket made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX PLUS 100, with perforated grating Ø 6 mm, galvanised, with locking, load class A 15 according to EN 1433, LxWxH 500x147x489 mm, item no. 41454
Packaging unit
28
