Article No. 33450
sump unit
for NW 100, for type 10 - 020, with edge frames made of galvanised steel and silt bucket made of recycled PP, with PVC-U socket DN/ OD 160, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

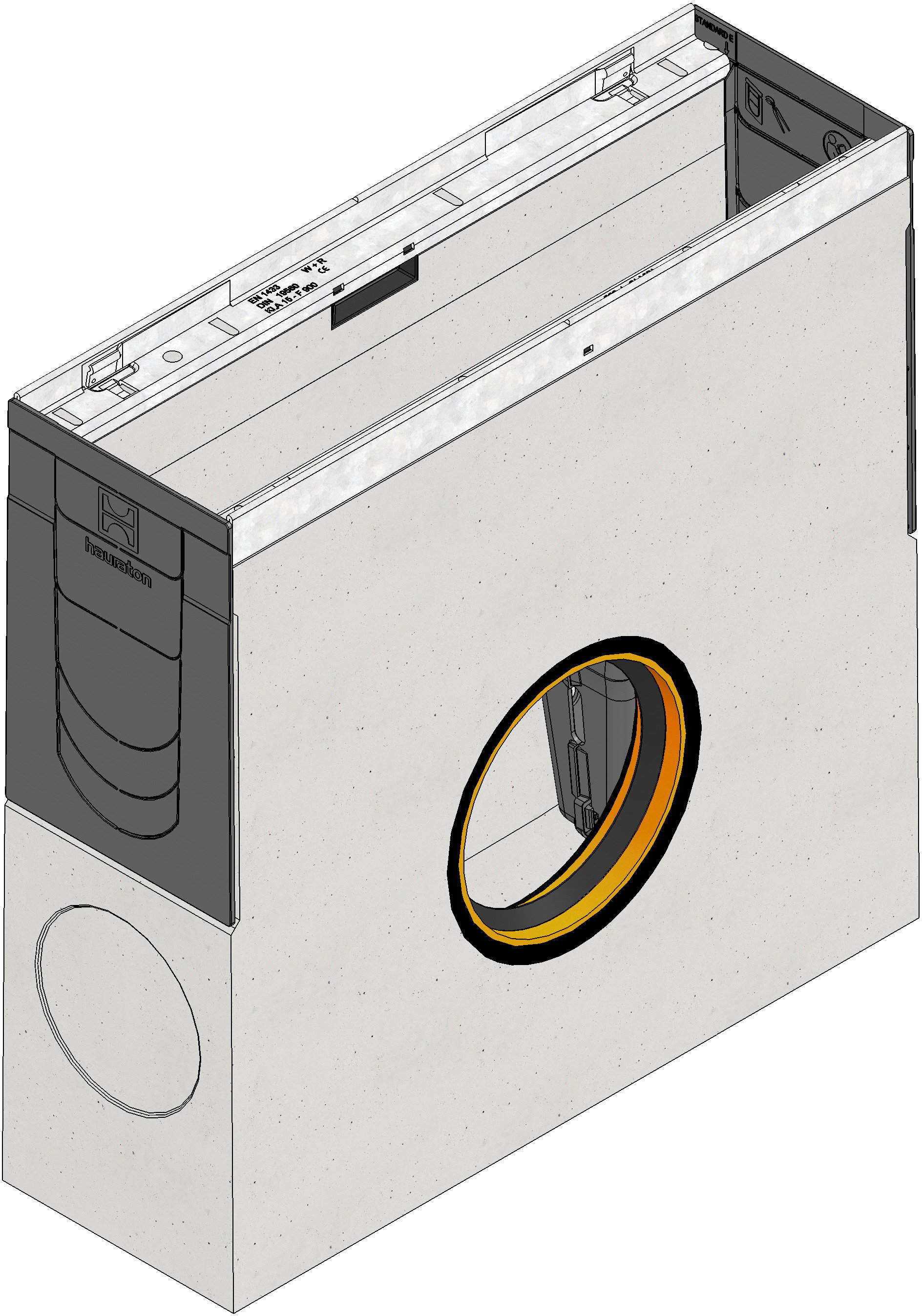

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
33450
Length
500 mm
Width
160 mm
Height
503 mm
Weight
52.94 kg
Material
fibre-reinforced concrete, strip galvanized steel
Nominal size
100
Sales text
Sump unit with edge frames made of galvanised steel, lateral with integrated PVC-U socket DN/OD 160, with silt bucket made of recycled PP and two end caps made of recycled PP, for channels type 10 - 020, FASERFIX KS 100, 0.5 m
Product description
FASERFIX KS 100 type020 - Sump unit made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with edge frames made of galvanised steel and boltless quick-locking system SIDE-LOCK, for quick and easy installation of the grating, 4-fold locking, on both front sides connection possibility DN/OD 110 and on the side with integrated PVC-U socket DN/OD 160 , with silt bucket made of recycled polypropylene and 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types 10 - 020, easy to assemble on site, LxWxH 500x160x503 mm, item no. 33450
Packaging unit
16
