Article No. 10653
sump unit
for NW 100, with silt bucket made of recycled PP, with ductile iron grating SW 80/8 mm, black, cl. B 125, locked, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

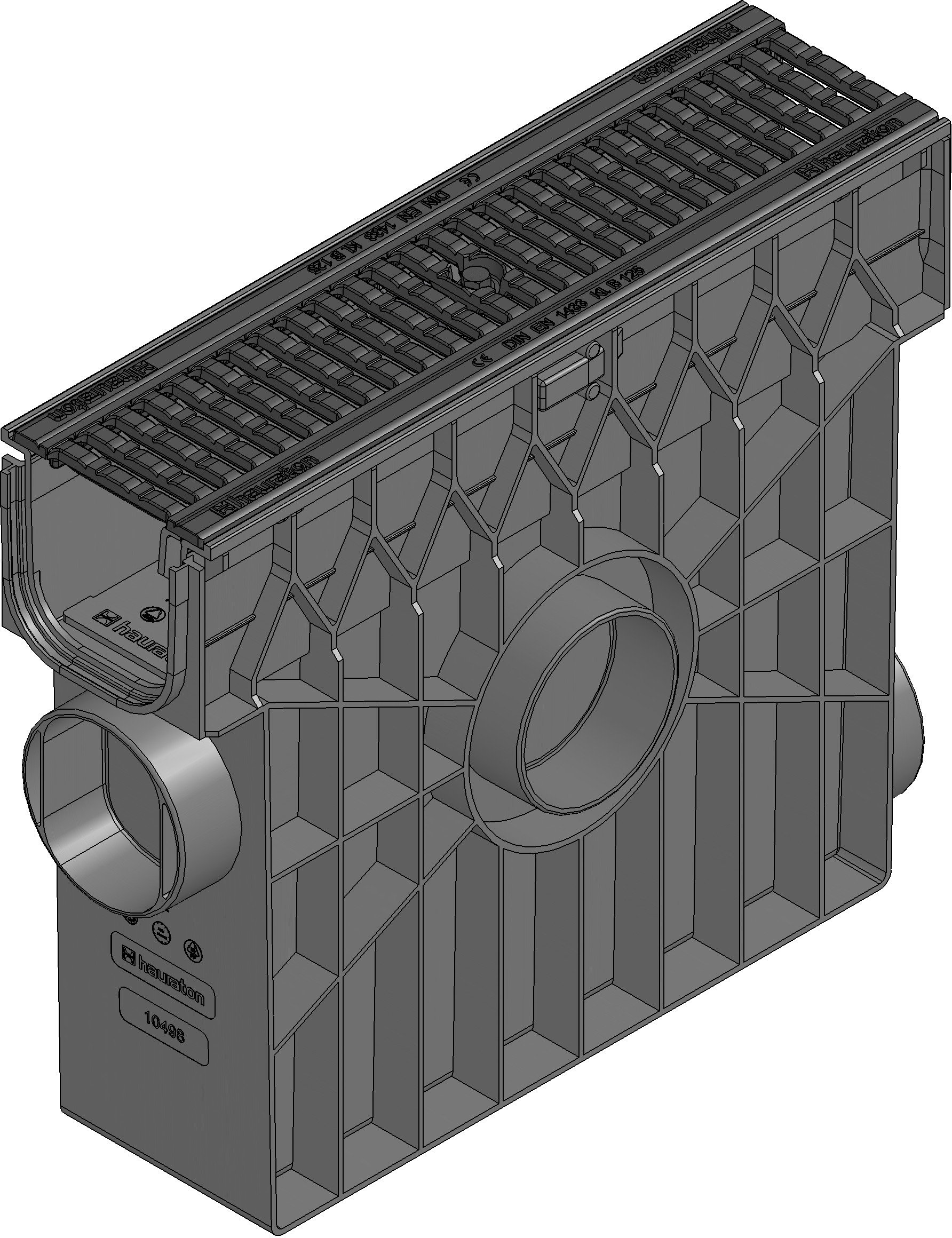

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
10653
Length
500 mm
Width
141 mm
Height
424 mm
Einlegetiefe
6 mm
Weight
5.94 kg
Material
Ductile iron GJS 500-7, recycled polypropylene, RECYFIX Material (recycled PA), Steel black galvanised
Intake cross-section
320.0 cm²/m
Nominal size
100
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with ductile iron grating SW 80/8 mm, black, cl. B 125, locked, with silt bucket made of recycled PP, DRIVETEC ST 100, 0.5 m
Product description
DRIVETEC ST 100 - Sump unit made of recycled polypropylene, 4-sided preformed pipe connection element (on the front sides and on the sides DN/OD 110), with removable silt bucket made of recycled polypropylene, suitable for both-sided connection of channel types DRIVETEC ST 100, with ductile iron grating SW 80/8 mm, made of spheroidal ductile iron EN-GJS, black, overlying, with locking, load class A 15 according to EN 1433, LxWxH 500x141x424 mm, item no. 10653
Packaging unit
28
