Article No. 10656
sump unit
for NW 100, with silt bucket made of recycled PP, with slotted mesh grating made of PA, MS 12/7 mm, black, class B 125, locked, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

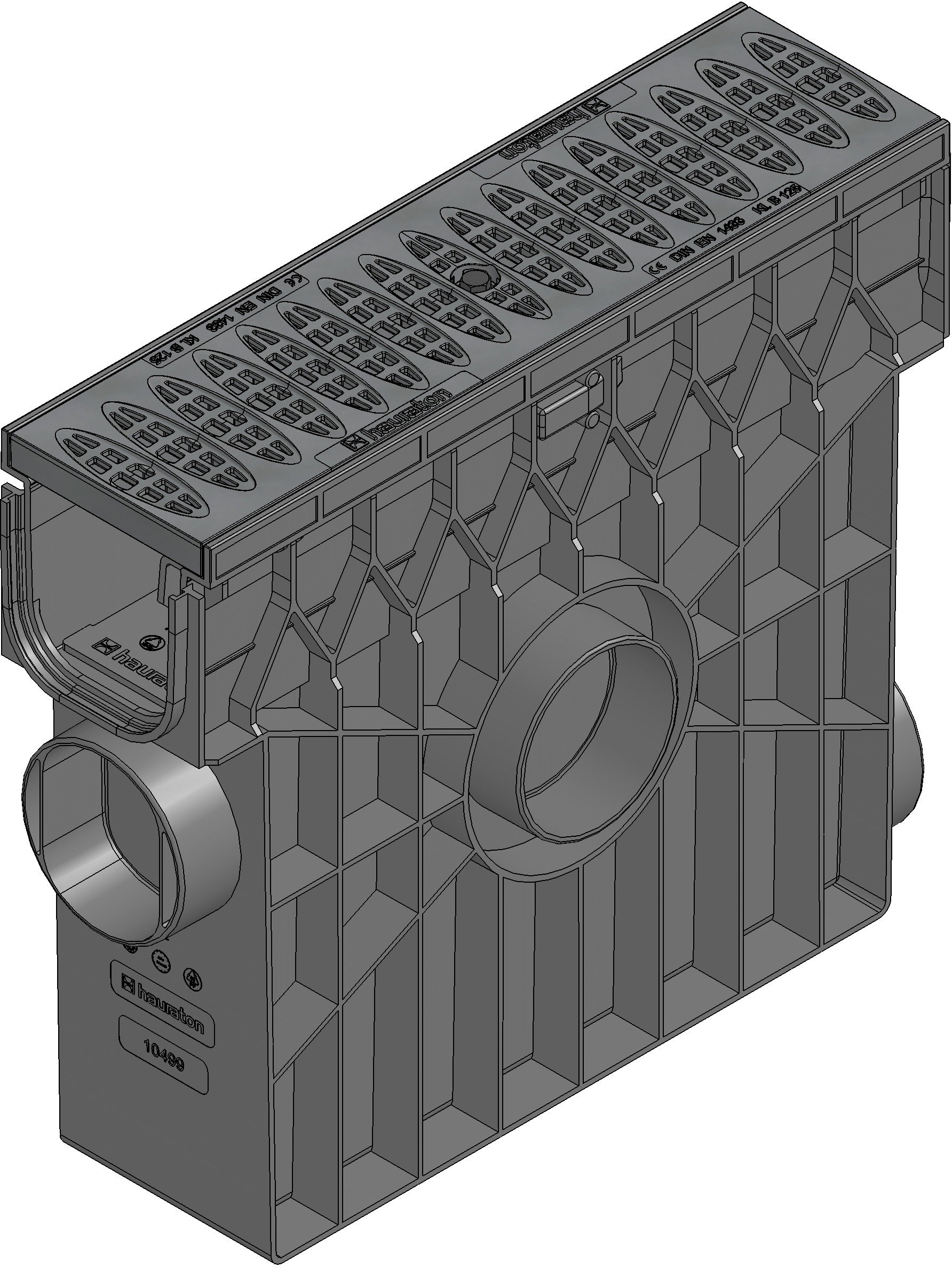

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
10656
Length
500 mm
Width
141 mm
Height
440 mm
Einlegetiefe
20 mm
Weight
3.90 kg
Material
recycled polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
212.0 cm²/m
Nominal size
100
Material grating
reinforced Polyamide
Sales text
Sump unit with integrated edge frames, with slotted mesh grating heelsafe made of PA, MS 12/7 mm, black, cl. B 125, locked, with silt bucket made of recycled PP, DRIVETEC PA 100, 0.5 m
Product description
DRIVETEC PA 100 - Sump unit made of recycled polypropylene, with integrated edge frames, 4-sided preformed pipe connection element ( on the front sides and on the sides DN/OD 110), with removable silt bucket made of recycled polypropylene, suitable for both-sided connection of channel types DRIVETEC PA 100, with slotted mesh grating heelsafe MS 12/7 mm, made of polyamide, black, with locking, load class A 15 - B 125 according to EN 1433, LxWxH 500x141x440 mm, item no. 10656
Packaging unit
28
