Article No. 66031

STEELFIX REGULAR 255, height 45 mm

Type 45, drain element, galvanised, 1.0 m

Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

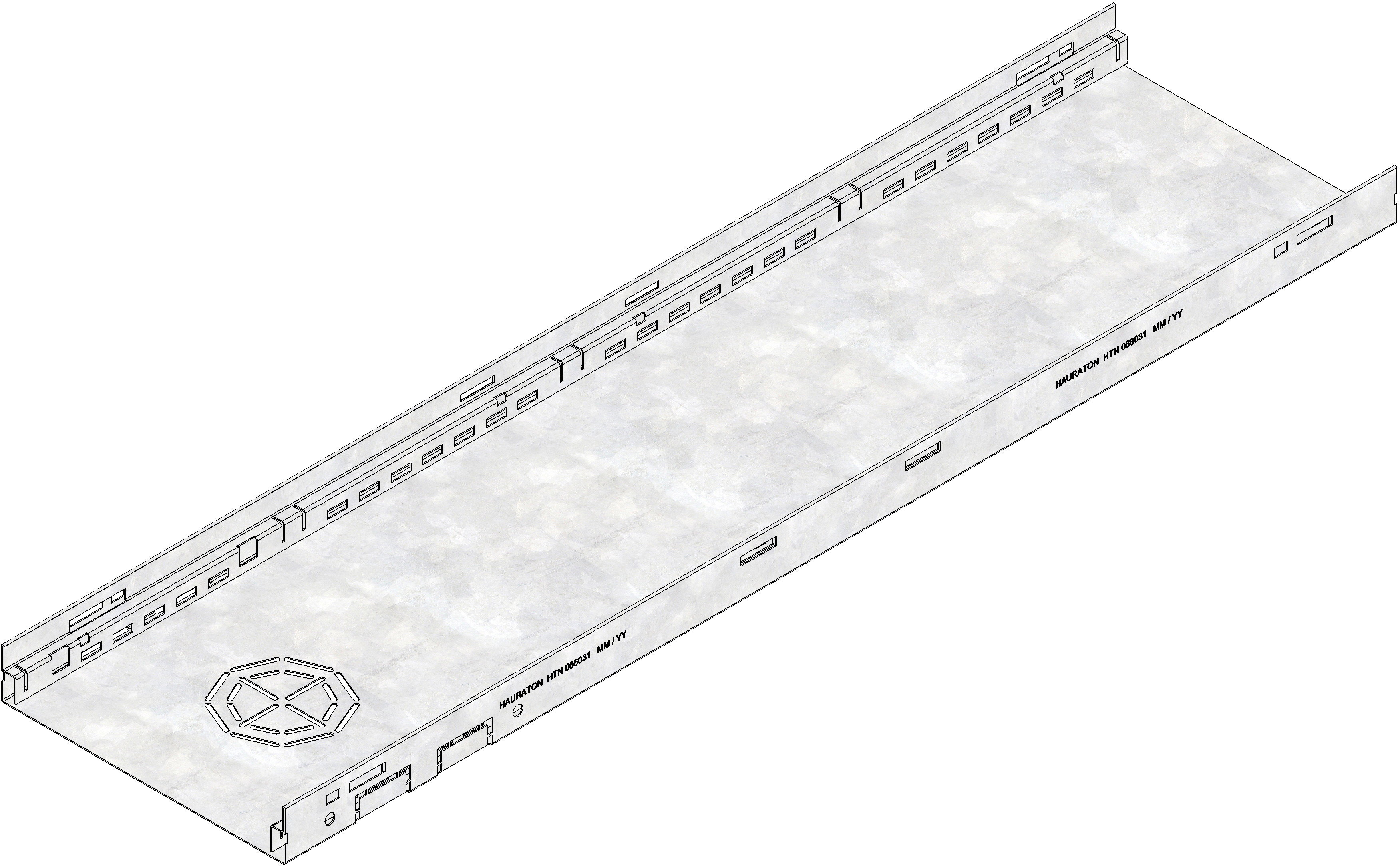

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
66031
Length
1000 mm
Width
255 mm
Height
45 mm
Weight
3.24 kg
Material
strip galvanized steel
Height of angle housing
20 mm
Nominal size
255
Internal channel cross-section
55 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
strip galvanized steel
Sales text
STEELFIX REGULAR 255 Channel body type 45 - drain element, galvanised, installation height 45 mm, 1 m
Product description
STEELFIX REGULAR 255 type 45 - Channel body, made of corrosion-protected galvanised steel, pedestrian and wheelchair-accessible, grating support tilted inwards, channel base and sides closed, but with perforation in the channel base as connection possibility for pipe outlet connection DN/OD 75 or DN/OD 100 and connection possibility with STEELFIX REGULAR sump unit, LxWxH 1000x255x45 mm, item no. 66031
Packaging unit
-
