Article No. 69018
STEELFIX REGULAR 205
Mesh grating MS 30/10 mm, stainless steel, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

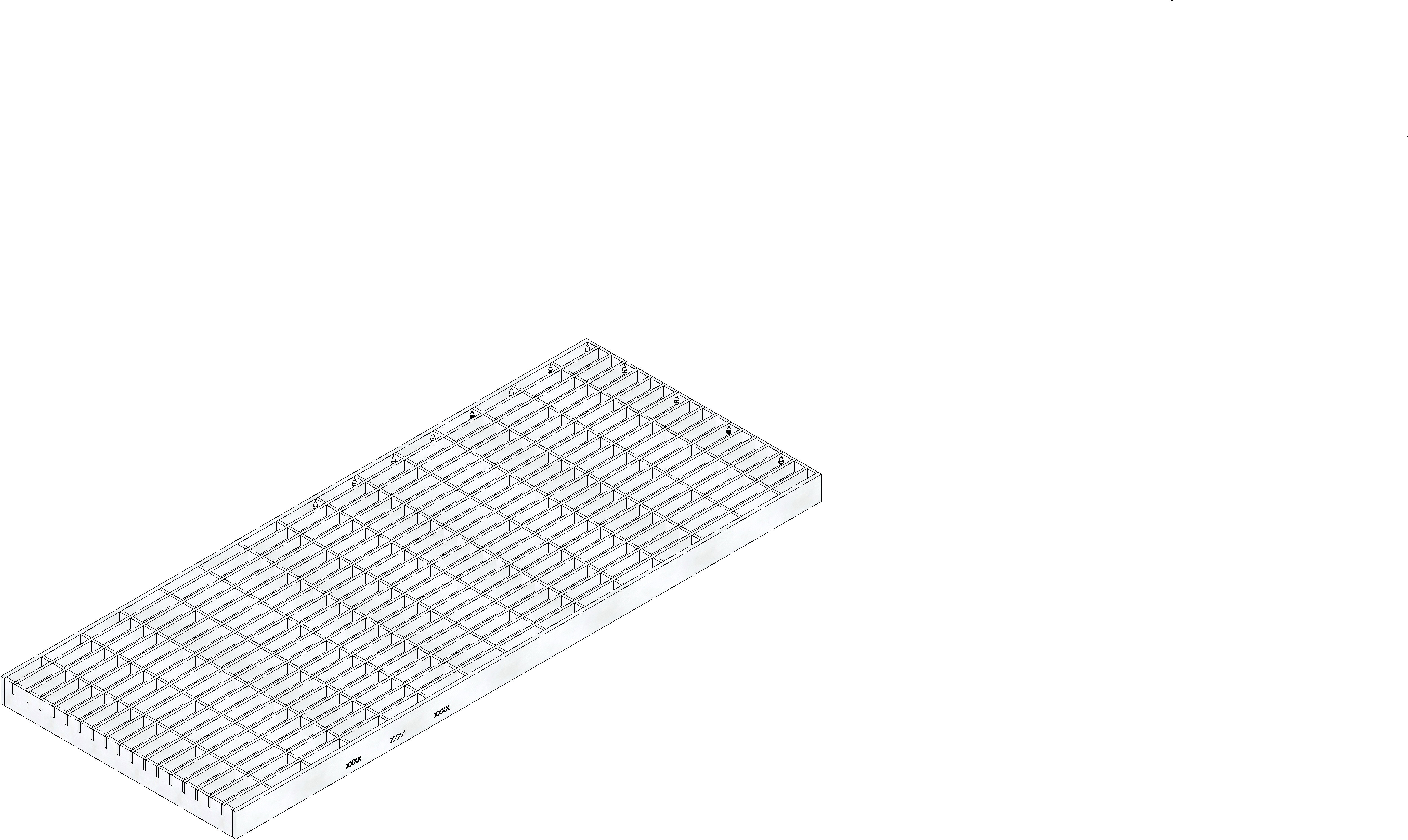

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
69018
Length
500 mm
Width
200 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
2.36 kg
Material
Stainless steel 1.4301
Intake cross-section
1468.0 cm²/m
Nominal size
205
Inlet opening
10
Fixing type
Locking handle
Material grating
Stainless steel 1.4301
Sales text
Mesh grating MS 30/10 mm, stainless steel, cl. A 15, 1-fold screwable, DACHFIX STEEL/STEELFIX REGULAR 205, 0.5 m
Product description
DACHFIX STEEL/STEELFIX REGULAR 205 -Mesh grating MS 30/10 mm, made of stainless steel CNS 1.4301, load class A 15, 1-fold bolting possibility, installation length 500 mm, item no. 69018
Packaging unit
360
