Article No. 69008
STEELFIX REGULAR 205
Mesh grating MS 30/10 mm, galvanised, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

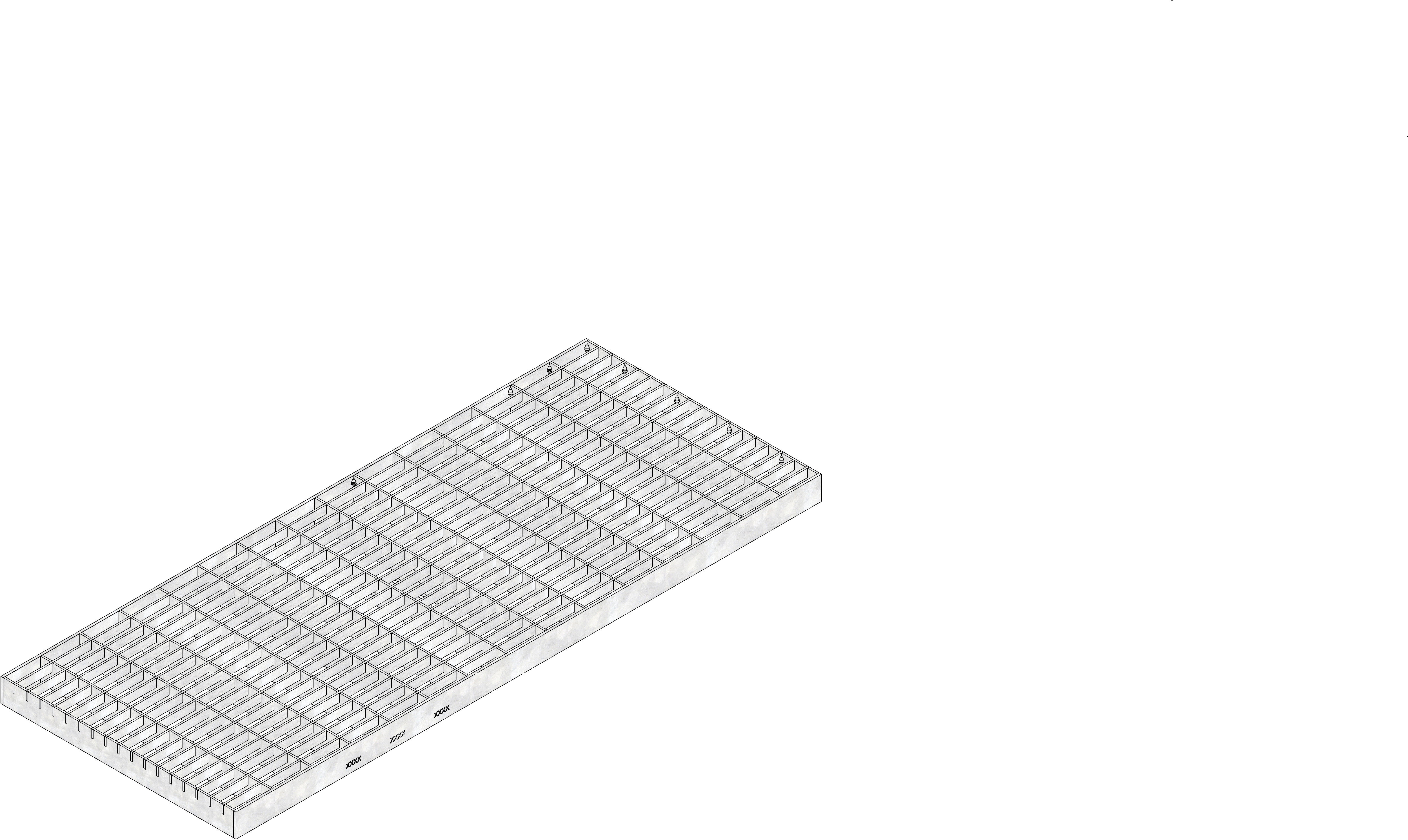

Product image
Technical drawing
Drawing
Drawing (CAD)
Top view
Data Sheet
Technical information and metrics
Article No.
69008
Length
500 mm
Width
200 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
1.84 kg
Material
hot-dip galvanised steel
Intake cross-section
1468.0 cm²/m
Nominal size
205
Inlet opening
10
Fixing type
Locking handle
Material grating
hot-dip galvanised steel
Sales text
Mesh grating MS 30/10 mm, galvanised, cl. A 15, 1-fold screwable, DACHFIX STEEL/STEELFIX REGULAR 205, 0.5 m
Product description
DACHFIX STEEL/STEELFIX REGULAR 205 -Mesh grating MS 30/10 mm made of galvanised steel, load class A 15, 1-fold bolting possibility, installation length 500 mm, item no. 69008
Packaging unit
360
