Article No. 69039
STEELFIX REGULAR 155
Perforated grating Ø 6 mm, galvanised, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

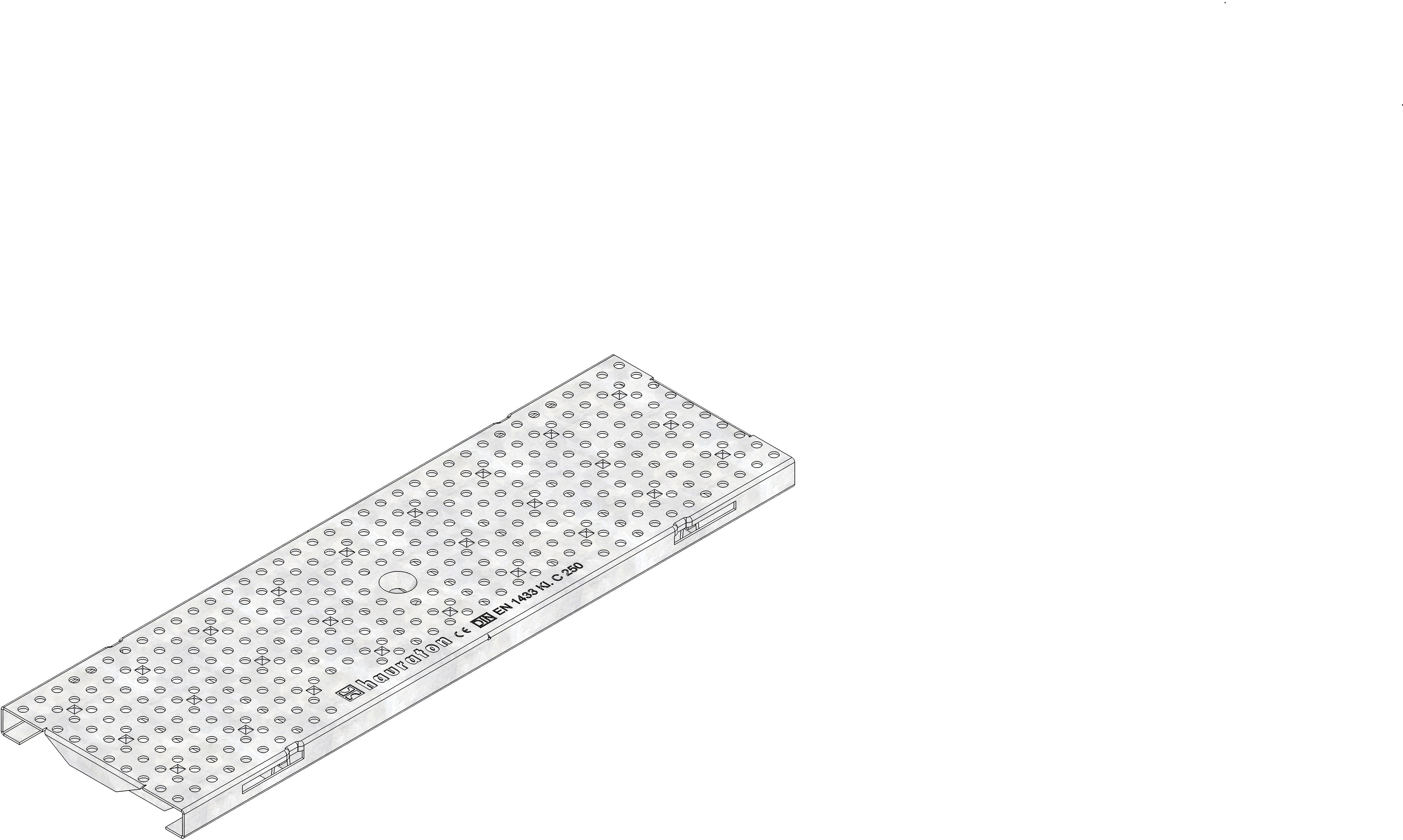

Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
69039
Length
500 mm
Width
149 mm
Height
27 mm
Einlegetiefe
20 mm
Weight
2.60 kg
Material
strip galvanized steel
Intake cross-section
191.0 cm²/m
Nominal size
155
Inlet opening
0
Fixing type
Locking handle
Material grating
strip galvanized steel
Regulations
DIN 51130, EN 16165
Sales text
Perforated grating Ø 6 mm, galvanised, cl. A 15, 1-fold screwable, DACHFIX STEEL/STEELFIX REGULAR 155, 0.5 m
Product description
DACHFIX STEEL/STEELFIX REGULAR 155 -Perforated grating Ø 6 mm made of galvanised steel, load class A 15, 1-fold screwable, installation length 500 mm, item no. 69039
Packaging unit
384
