Article No. 10376
STEELFIX REGULAR 155
Longitudinal grating Filigree, bar distance 8 mm, stainless steel, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Top view

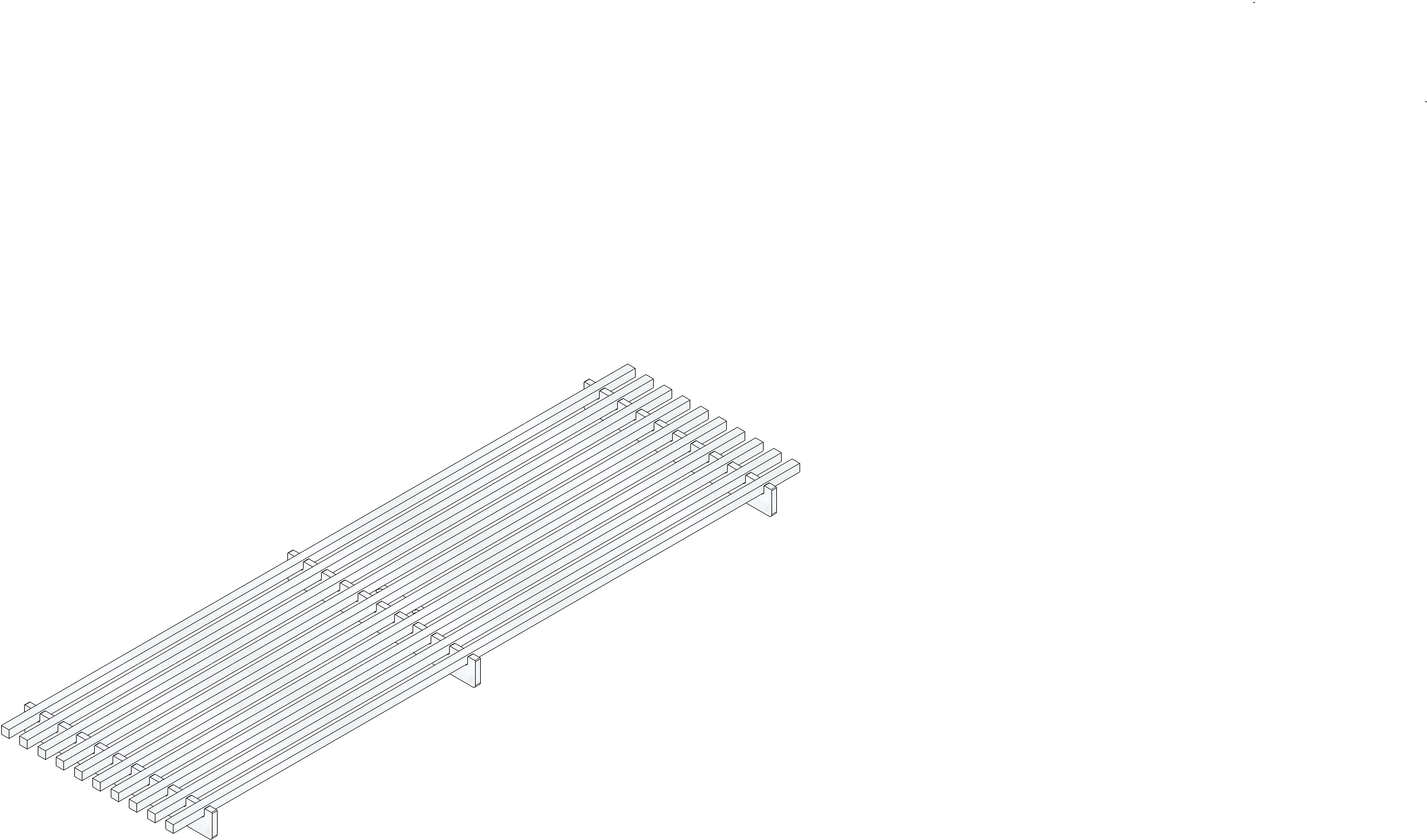

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
10376
Length
500 mm
Width
149 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
1.62 kg
Material
Stainless steel 1.4301
Intake cross-section
904.0 cm²/m
Nominal size
155
Inlet opening
0
Fixing type
Loose blatant, Locking handle
Material grating
Stainless steel 1.4301
Sales text
Longitudinal grating Filigree bar distance 8 mm, stainless steel, cl. A 15, DACHFIX STEEL/STEELFIX REGULAR 155, 0.5 m
Product description
DACHFIX STEEL/STEELFIX REGULAR 155 -Longitudinal grating Filigree, bar distance 8 mm, made of stainless steel CNS 1.4301, load class A 15, installation length 500 mm, item no. 10376
Packaging unit
-
