Article No. 69035
STEELFIX REGULAR 135
Perforated grating Ø 6 mm, galvanised, 1.0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

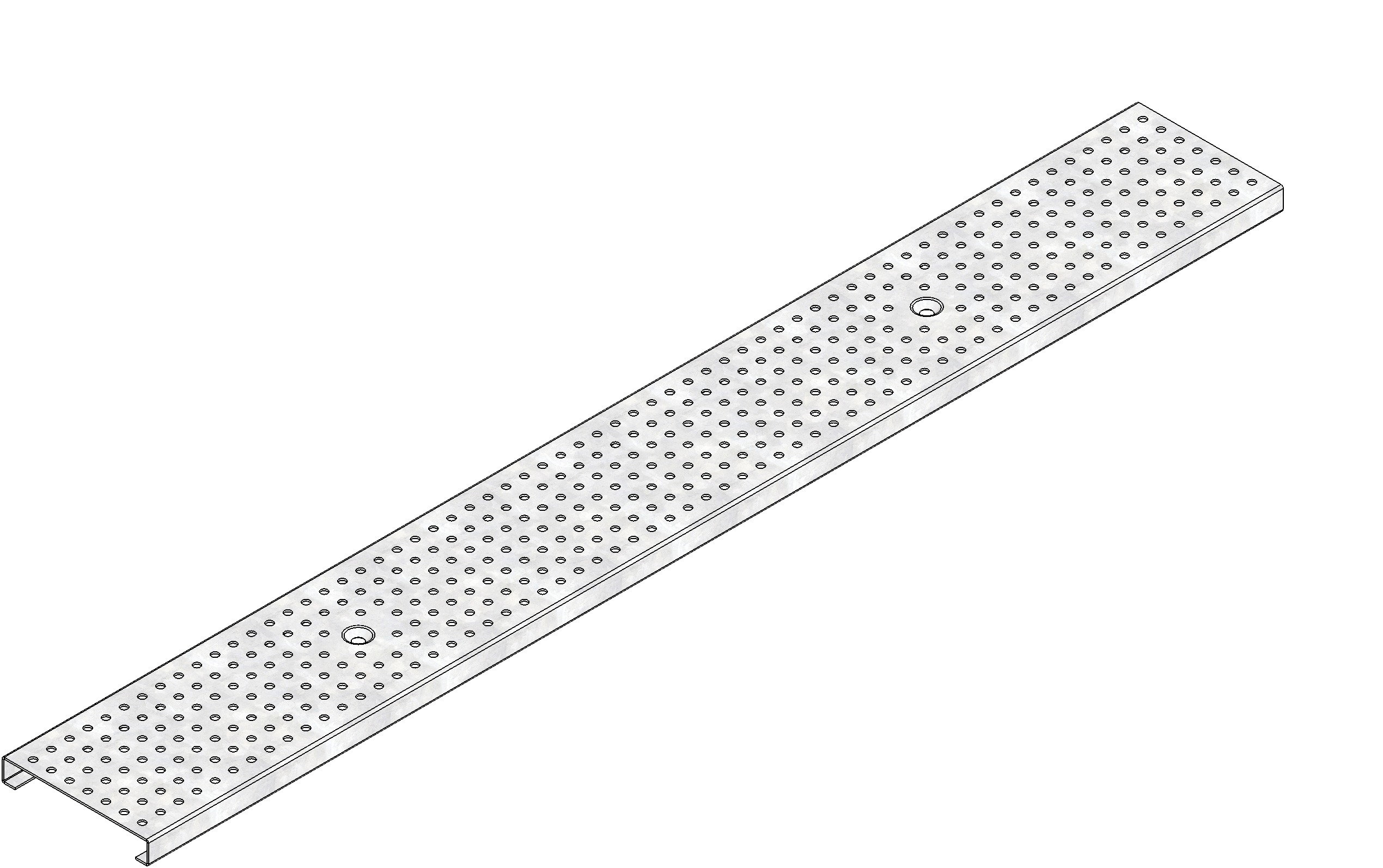

Product image
Top view
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
69035
Length
1000 mm
Width
129 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
1.93 kg
Material
strip galvanized steel
Intake cross-section
120.0 cm²/m
Nominal size
135
Inlet opening
0
Fixing type
Locking handle
Material grating
strip galvanized steel
Sales text
Perforated grating Ø 6 mm, galvanised, cl. A 15, 2-fold screwable, DACHFIX STEEL/STEELFIX REGULAR 135, 1 m
Product description
DACHFIX STEEL/STEELFIX REGULAR 135 -Perforated grating Ø 6 mm made of galvanised steel, load class A 15, 2-fold screwable, installation length 1000 mm, item no. 69035
Packaging unit
-
