Article No. 66085

STEELFIX REGULAR 135, height 150 mm

Type 150, drain element, galvanised, 1.0 m

Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

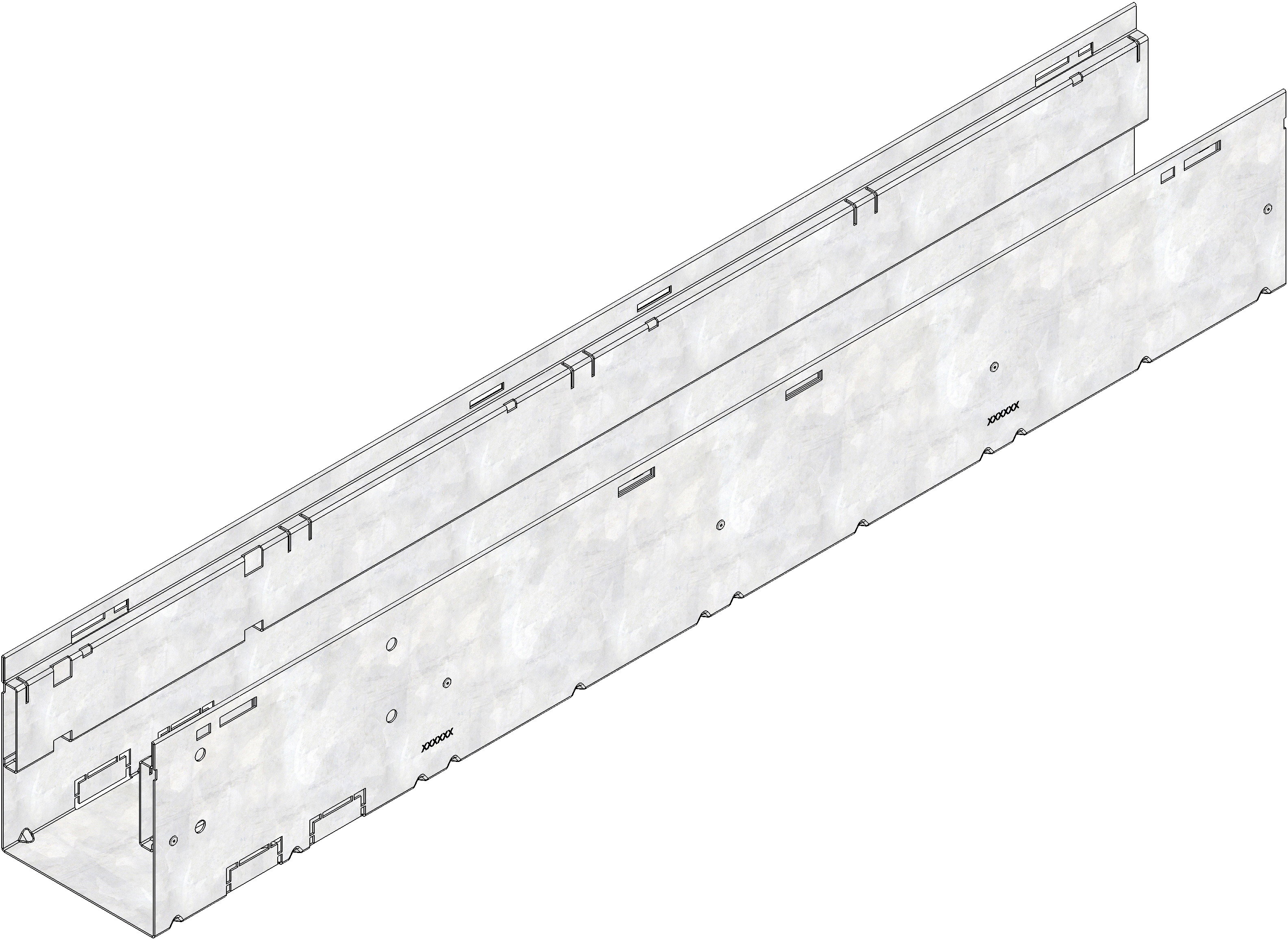

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
66085
Length
1000 mm
Width
135 mm
Height
150 mm
Weight
6.20 kg
Material
strip galvanized steel
Height of angle housing
20 mm
Nominal size
135
Internal channel cross-section
155 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
strip galvanized steel
Sales text
STEELFIX REGULAR 135 Channel body type 150 -drain element, galvanised, installation height 150 mm, 1 m
Product description
STEELFIX REGULAR 135 type 150 - Channel body, made of corrosion-protected galvanised steel, pedestrian and wheelchair-accessible, grating support tilted inwards, channel base and sides closed, but with perforation in the channel base as connection possibility for pipe outlet connection DN/OD 75 or DN/OD 100 and connection possibility with STEELFIX REGULAR sump unit, LxWxH 1000x135x150 mm, item no. 66085
Packaging unit
-
