Article No. 33371
SLOTTED COVERS 200, neck height 200 mm, class D 400
asymmetric, SW 14 mm, stainless steel, 1.0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

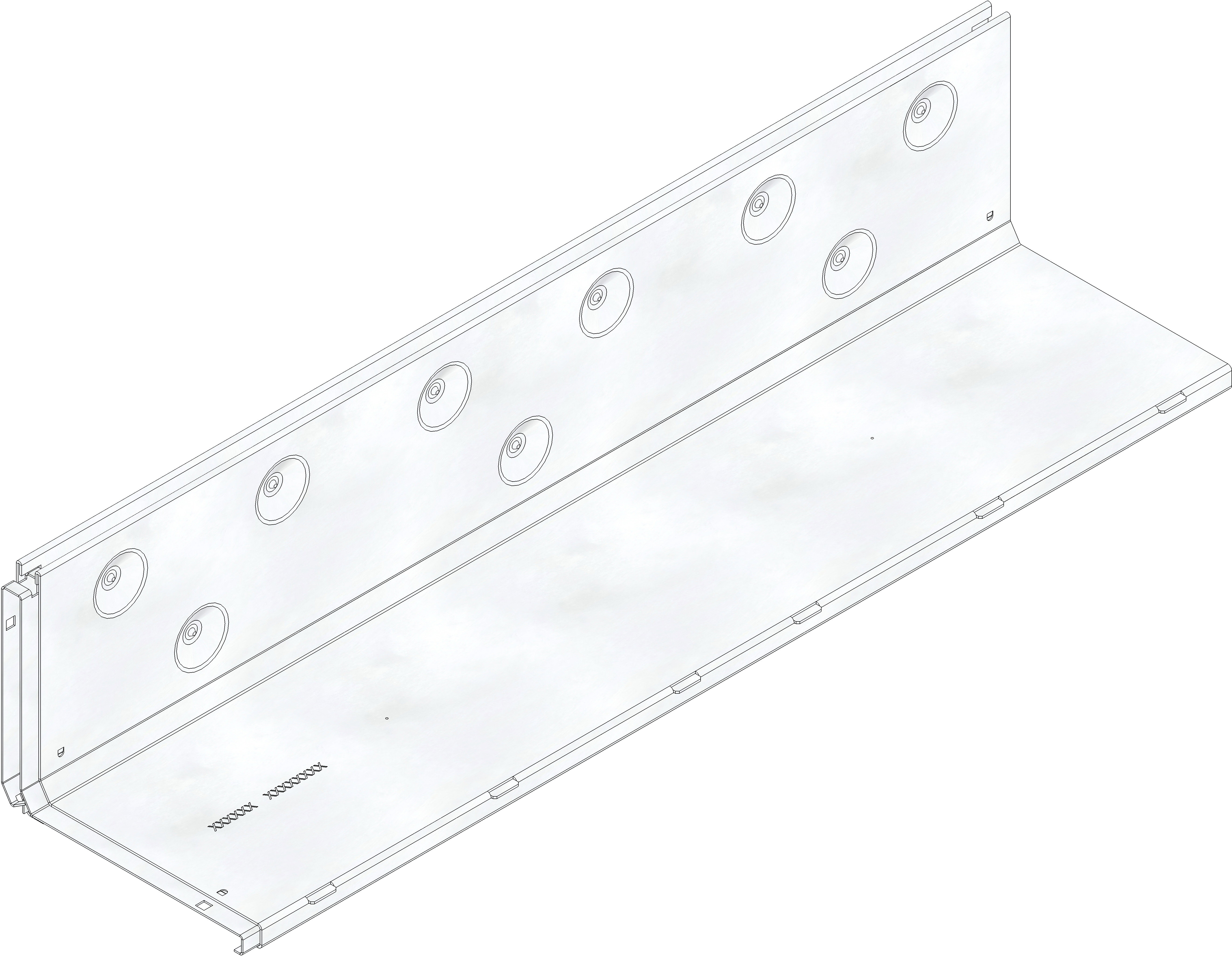

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
33371
Length
1000 mm
Width
256 mm
Height
229 mm
Einlegetiefe
222 mm
Weight
13.58 kg
Material
Stainless steel 1.4301
Intake cross-section
140.0 cm²/m
Nominal size
200
Inlet opening
14
Regulations
EN 1433, DIN 19580
Sales text
Slotted cover SW 14 mm, neck height 200 mm, stainless steel, asymmetric, with integrated, full-surface connector, cl. D 400, FASERFIX KS/ RECYFIX PRO 200, 1 m
Product description
FASERFIX KS/ RECYFIX PRO 200 -Slotted cover SW 14 mm, neck height 200 mm, asymmetric, stainless steel CNS 1.4301, with integrated full-surface connector, load class A 15 - D 400 according to EN 1433, length 1000 mm, item no. 33371
Packaging unit
-
Tender Texts
Installation example
Pavement class C 250,
Asphalt class D 400,
Asphalt class D 400,
Pavement class D 400,
