Article No. 33389
SLOTTED COVERS 200, neck height 200 mm, class D 400
Access cover, SW 14 mm, stainless steel, asymmetric, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

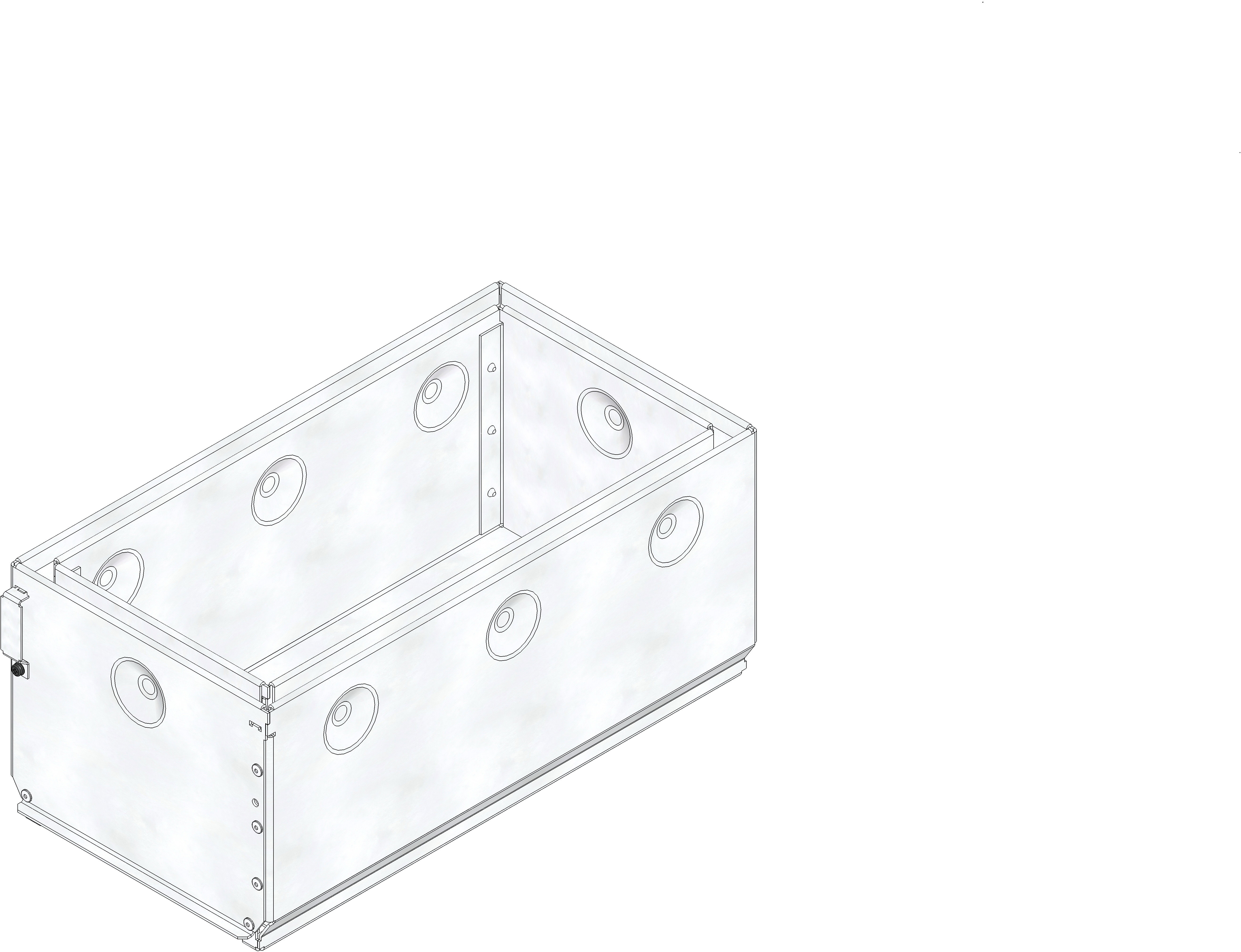

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
33389
Length
500 mm
Width
263 mm
Height
222 mm
Einlegetiefe
222 mm
Weight
13.03 kg
Material
Stainless steel 1.4301
Intake cross-section
398.0 cm²/m
Nominal size
200
Inlet opening
14
Material grating
Stainless steel 1.4301
Sales text
Access cover SW 14 mm, neck height 200 mm, stainless steel, asymmetric, cl. D400, FASERFIX KS/ RECYFIX PRO 200, 0.5 m
Product description
FASERFIX KS/ RECYFIX PRO 200 - Access cover for slotted cover SW 14 mm, neck height 200 mm, asymmetric, stainless steel CNS 1.4301, load class A 15 - D 400 according to EN 1433, length 500 mm, item no. 33389
Packaging unit
-
