Article No. 33369
SLOTTED COVERS 200, neck height 160, class C 250
Access cover, SW 12 mm, stainless steel, asymmetric, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

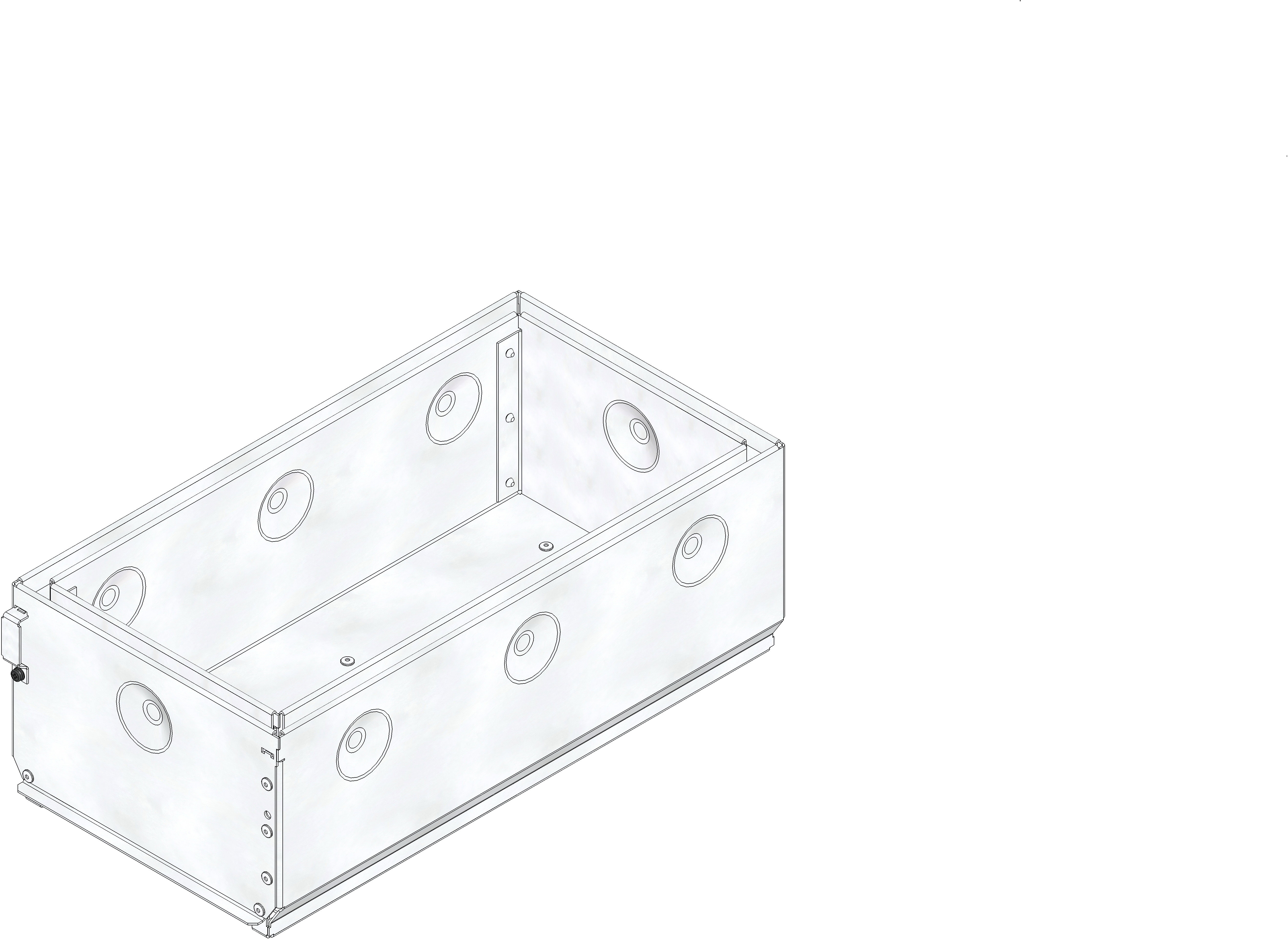

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
33369
Length
500 mm
Width
263 mm
Height
181 mm
Einlegetiefe
181 mm
Weight
8.86 kg
Material
Stainless steel 1.4301
Intake cross-section
345.0 cm²/m
Nominal size
200
Inlet opening
12
Material grating
Stainless steel 1.4301
Sales text
Access cover SW 12 mm, neck height 160 mm, stainless steel, asymmetric, cl. C 250, FASERFIX KS/ RECYFIX PRO 200, 0.5 m
Product description
FASERFIX KS/ RECYFIX PRO 200 -Access cover for slotted cover SW 12 mm, neck height 160 mm, asymmetric, stainless steel CNS 1.4301, load class A 15 - C 250 according to EN 1433, length 500 mm, item no. 33369
Packaging unit
-
