Article No. 33341
SLOTTED COVERS 100, neck height 105 mm, class D 400
Asymmetrical SW 10 mm, stainless steel, 1.0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

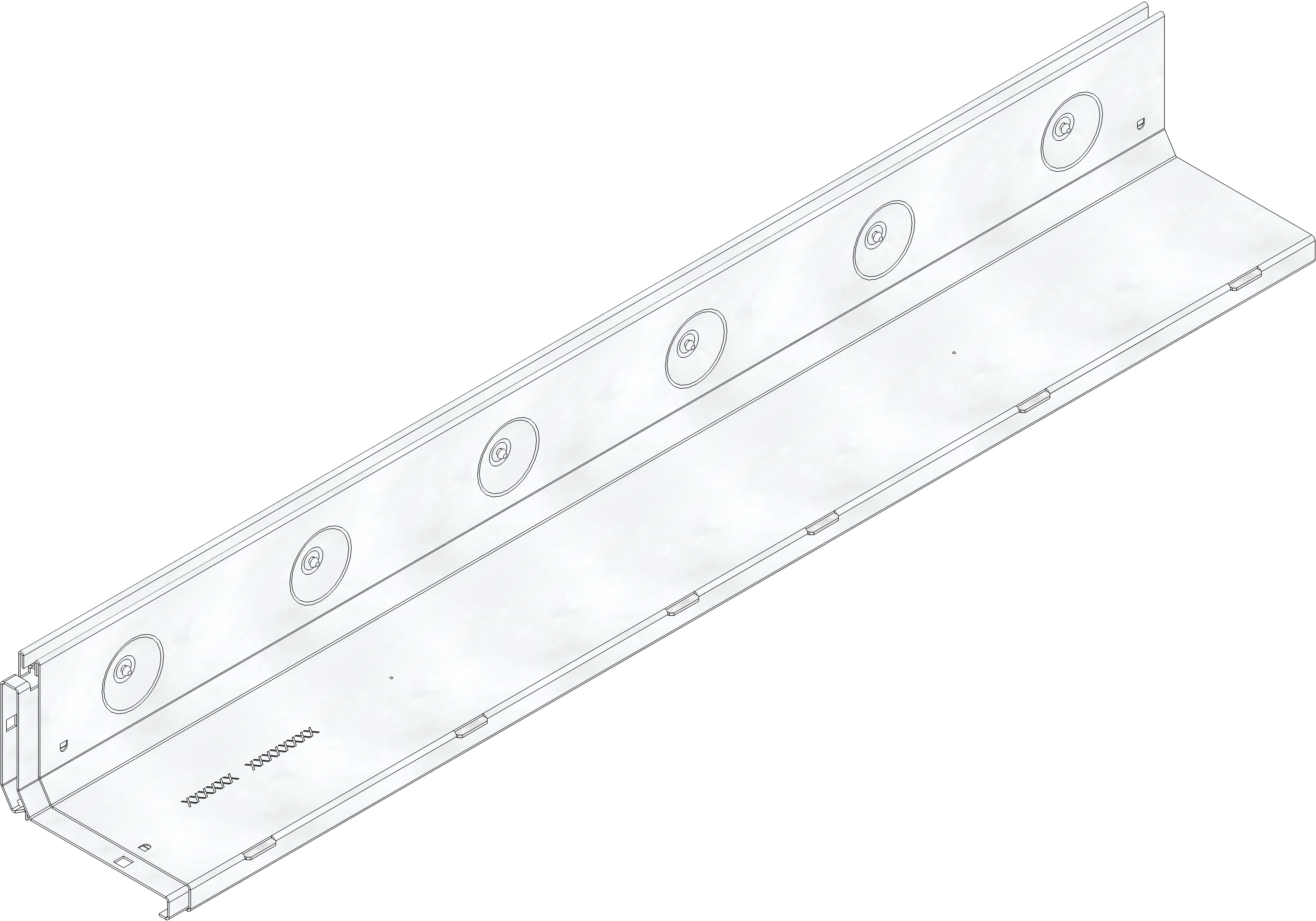

Product image

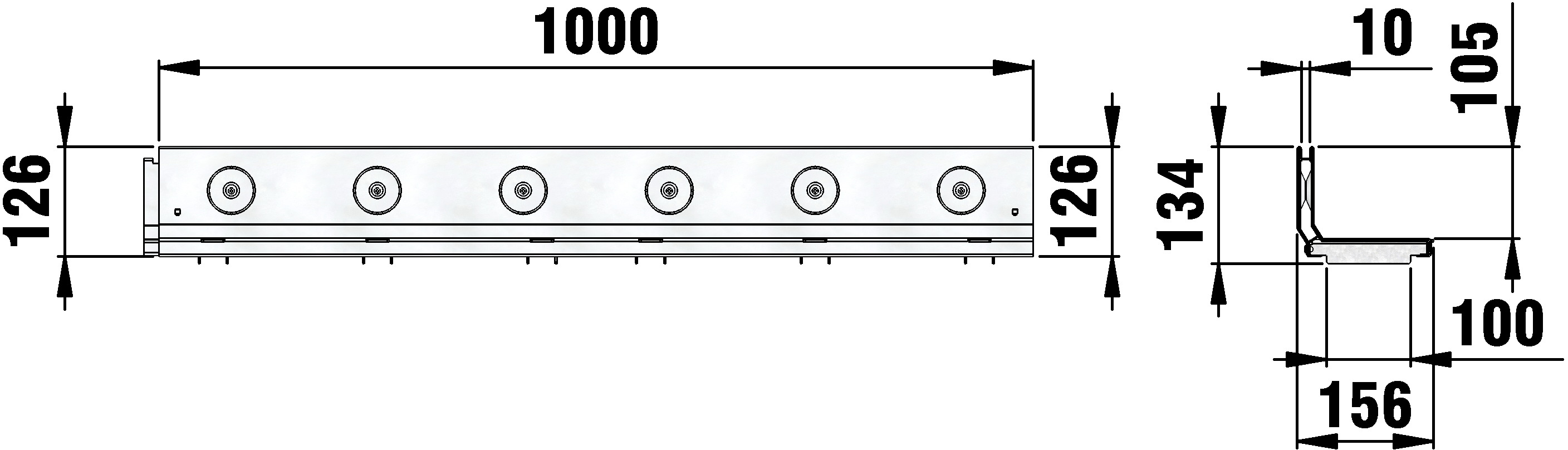

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
33341
Length
1000 mm
Width
156 mm
Height
134 mm
Einlegetiefe
126 mm
Weight
6.19 kg
Material
Stainless steel 1.4301
Intake cross-section
100.0 cm²/m
Nominal size
100
Inlet opening
10
Regulations
in accordance with EN 1433
Sales text
Slotted cover SW 10 mm, neck height 105 mm, stainless steel, asymmetric, with integrated, full-surface connector, cl. D 400, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, 1 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100 -Slotted cover SW 10 mm, neck height 105 mm, asymmetric, stainless steel CNS 1.4301, with integrated full-surface connector, load class A 15 - D 400 according to EN 1433, length 1000 mm, item no. 33341
Packaging unit
80
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15,
Pavement class B 125,
Pavement class C 250,
Pavement class C 250,
Asphalt class D 400,
Asphalt class D 400,
Pavement class D 400,
