Article No. 32958
SLOTTED COVERS 100, neck height 105 mm, class D 400
asymmetric, duo slot, SW 2 x 6 mm, galvanised, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

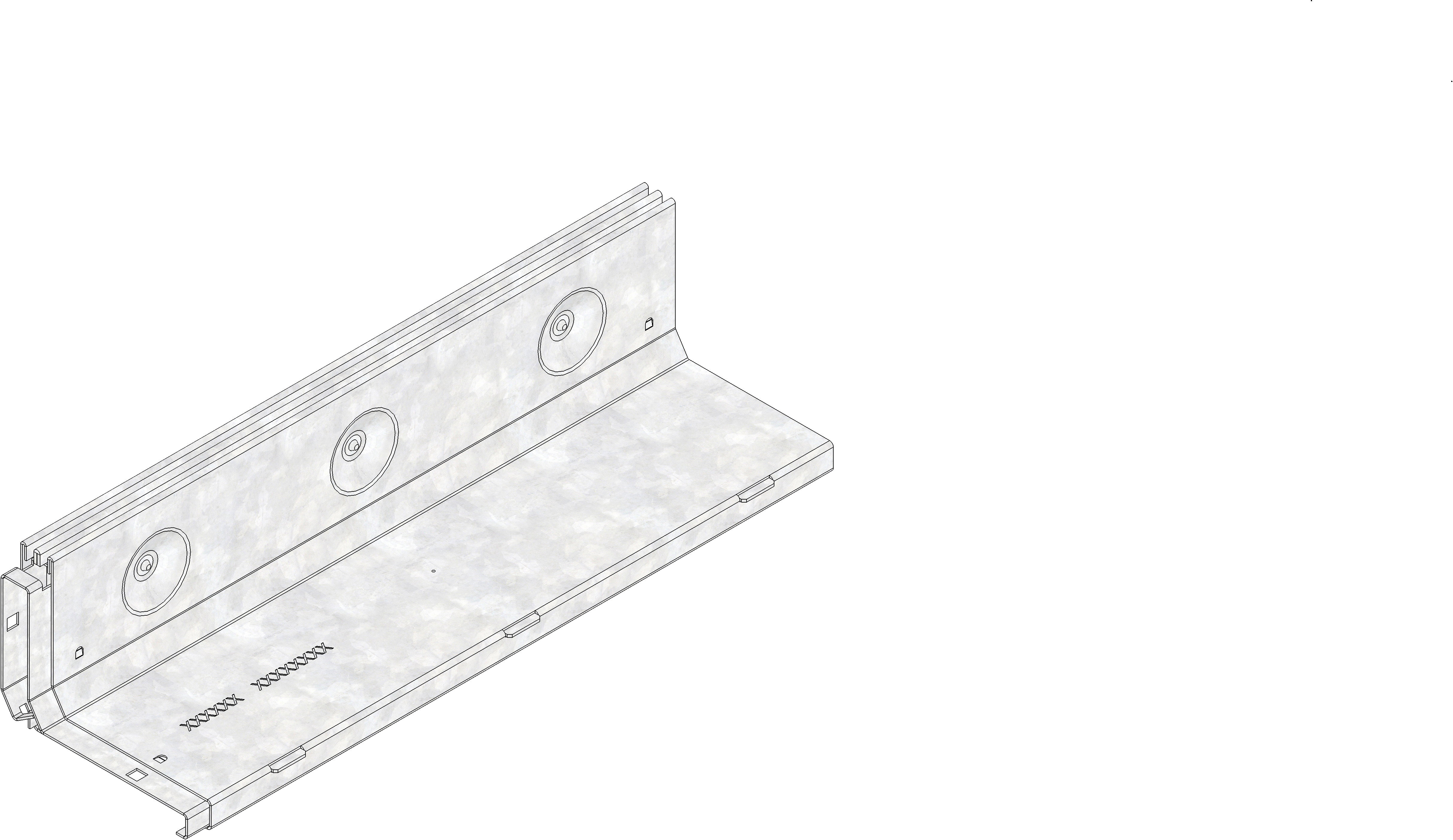

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32958
Length
500 mm
Width
156 mm
Height
134 mm
Einlegetiefe
126 mm
Weight
4.22 kg
Material
strip galvanized steel
Intake cross-section
120.0 cm²/m
Nominal size
100
Inlet opening
6
Material grating
strip galvanized steel
Regulations
EN 1433
Sales text
Duo slotted cover SW 2x6 mm, neck height 105 mm, galvanised, asymmetric, with integrated, full-surface connector, cl. D 400, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, 0.5 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100 -Duo slotted cover SW 2x6 mm, neck height 105 mm, asymmetric, galvanised, with integrated full-surface connector, load class A 15 - D 400 according to EN 1433, length 500 mm, item no. 32958
Packaging unit
160
Declaration of Performance
