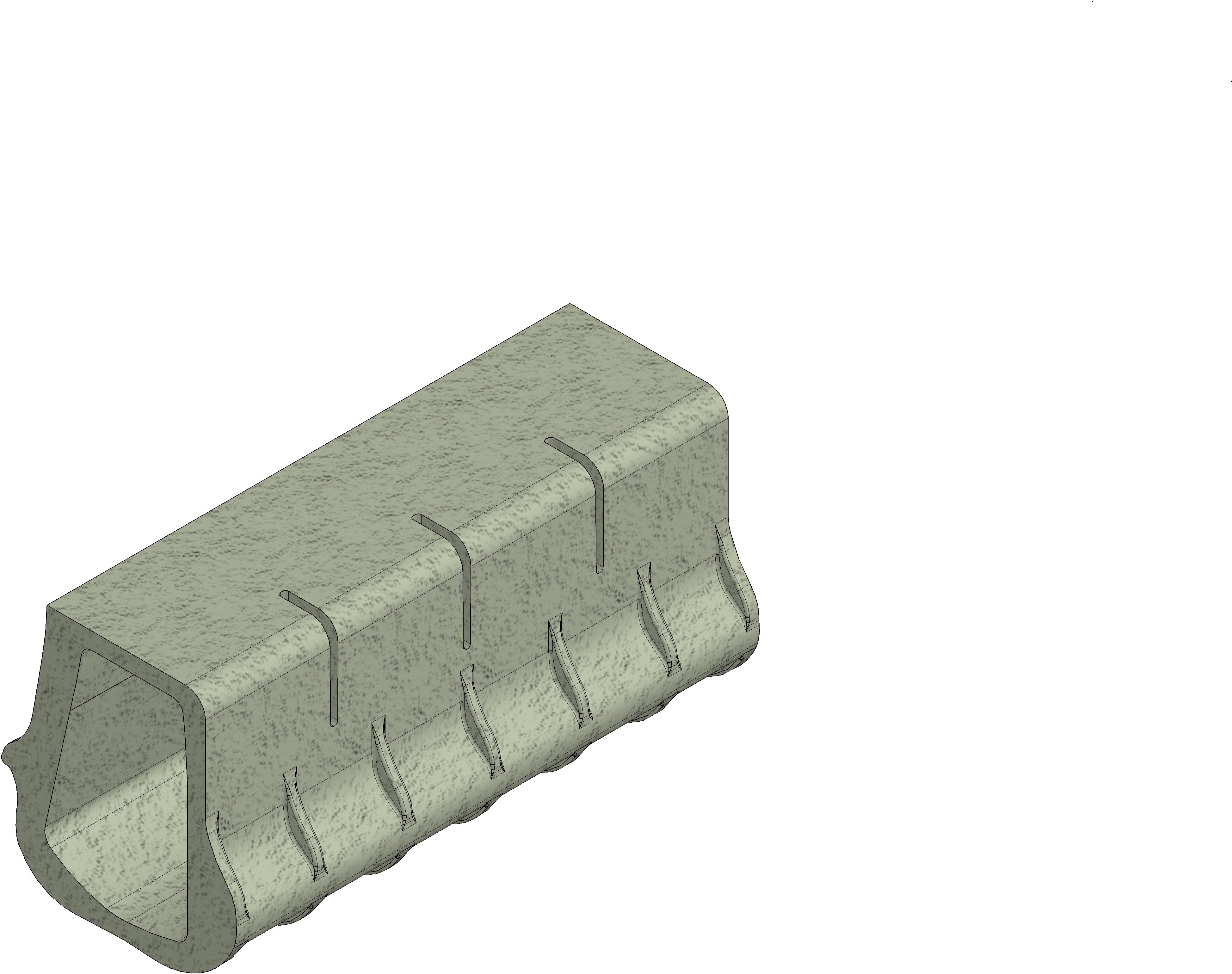

Product image

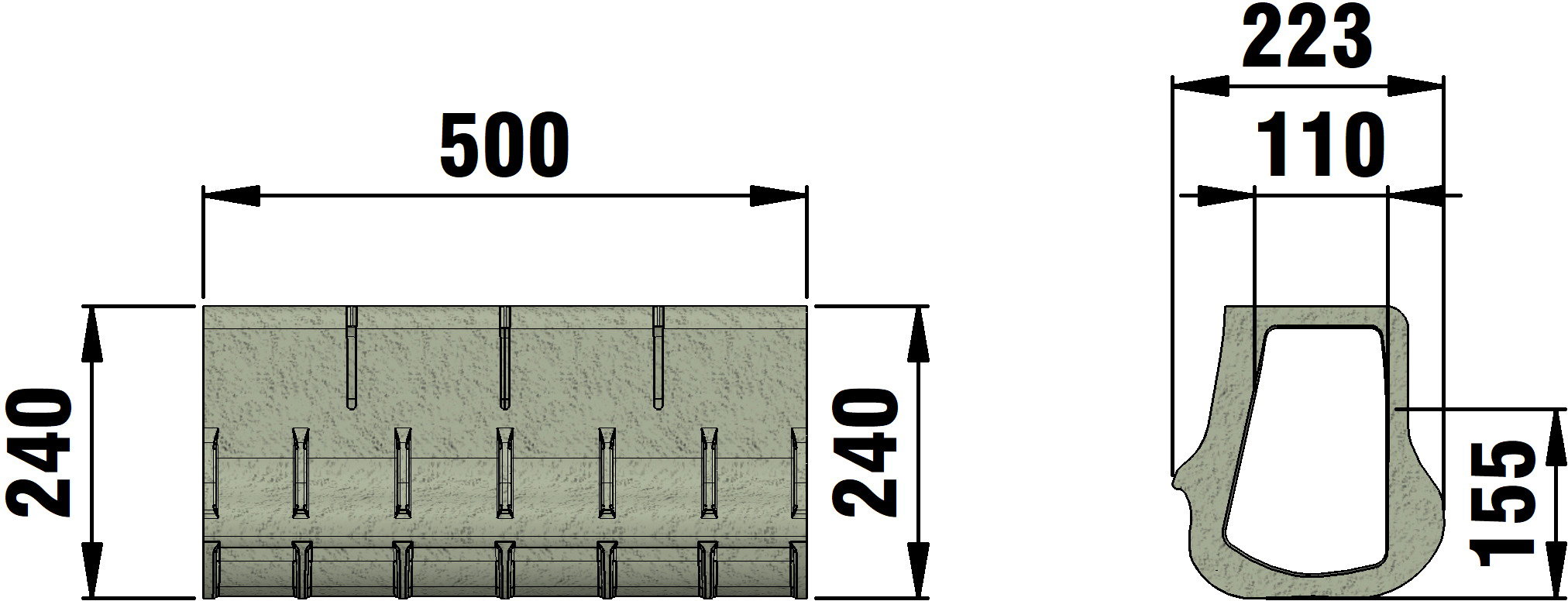

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
10562
Length
500 mm
Width
223 mm
Height
240 mm
Weight
5.50 kg
Height of angle housing
-
Intake cross-section
0.0 cm²/m
Nominal size
110
Internal channel cross-section
-
Fall
-
Type according to DIN EN 1433
M
Sales text
KERBFIX Flat Profile "Bullnose" Unit, cl. D 400, 0.5 m
Product description
KERBFIX - Flat "Bullnose" unit with integrated drainage, made of recycled plastic, grey, according to EN 1433, with 2 side openings as water inlets, load class A 15 - D 400, LxWxH 500x223x240 mm, item no. 10562
Packaging unit
-
national declaration of performance
Nation DoP
Tender Texts
Installation example
Asphalt class A 15 - D 400,
Concrete class A 15 - D 400,
