Article No. 33333
SERVICE CHANNELS RECYFIX STANDARD 100 made of polypropylene with polypropylene frame, class A 15
Type 01, 1.0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

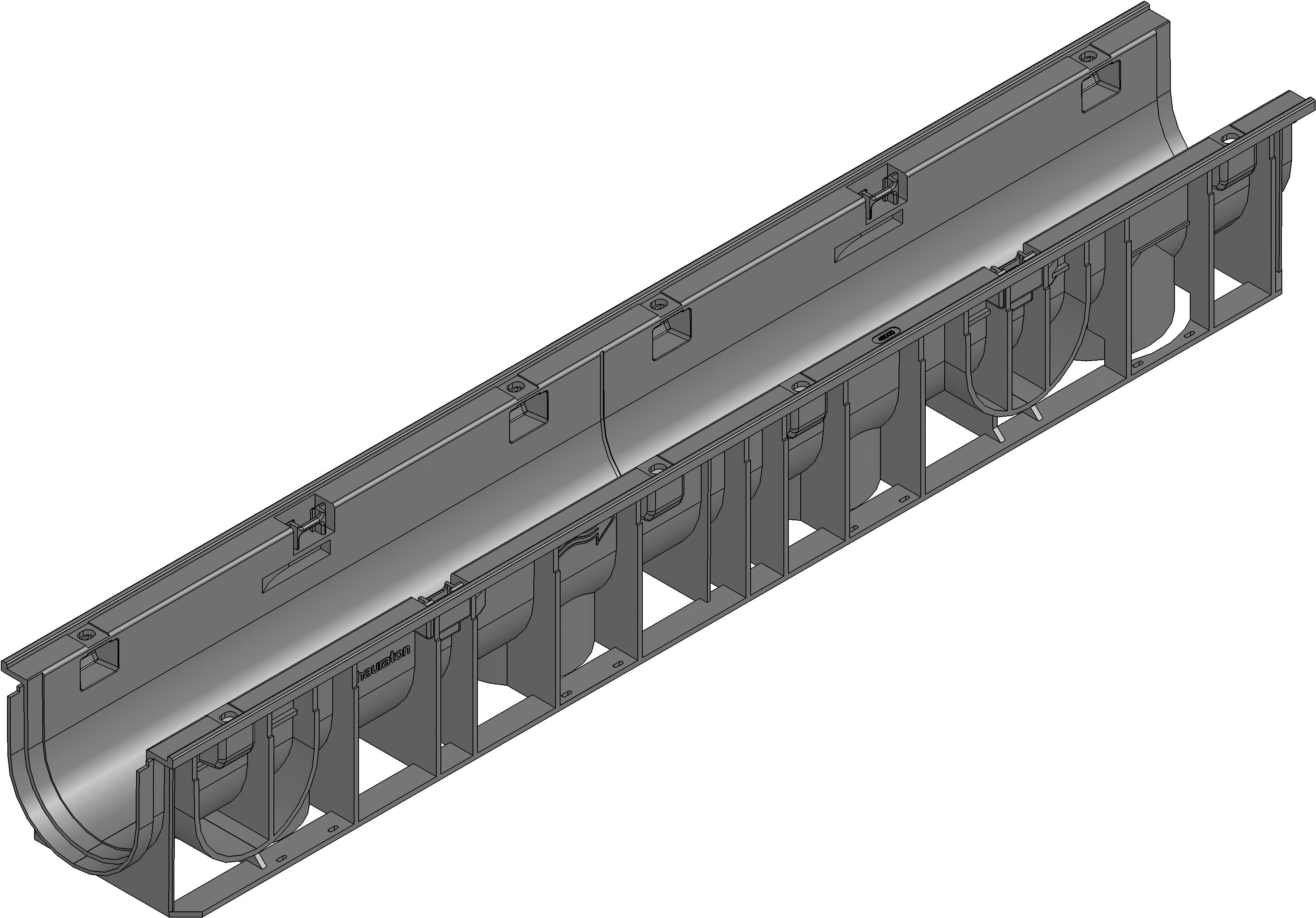

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
33333
Length
1000 mm
Width
150 mm
Height
134 mm
Weight
1.91 kg
Material
recycled polypropylene
Height of angle housing
4 mm
Nominal size
100
Internal channel cross-section
92 cm²
Fall
-
Fixing type
Loose blatant, Slotted grating, Locking handle
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Regulations
EN 1433, DIN 19580
Sales text
MEDIA CHANNEL RECYFIX STANDARD 100 Channel body type 01, 1 m
Product description
MEDIA CHANNEL RECYFIX STANDARD 100 type 01 - Channel body made of recycled polypropylene, with vertical connection possibility DN/OD 110, load class A 15 - C 250 according to EN 1433, LxWxH 1000x150x134 mm, item no. 33333
Packaging unit
-
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - C 250,
Asphalt class A 15 - D 400,
Concrete class A 15 - F 900,
Pavement class D 400,
industrial flooring class A 15 - C 250,
industrial flooring class D 400 - F 900,
