Article No. 41216
RECYFIX STANDARD 100, class B 125
Type 80 with mesh grating MS 30/10 mm, stainless steel, locked, 1.0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

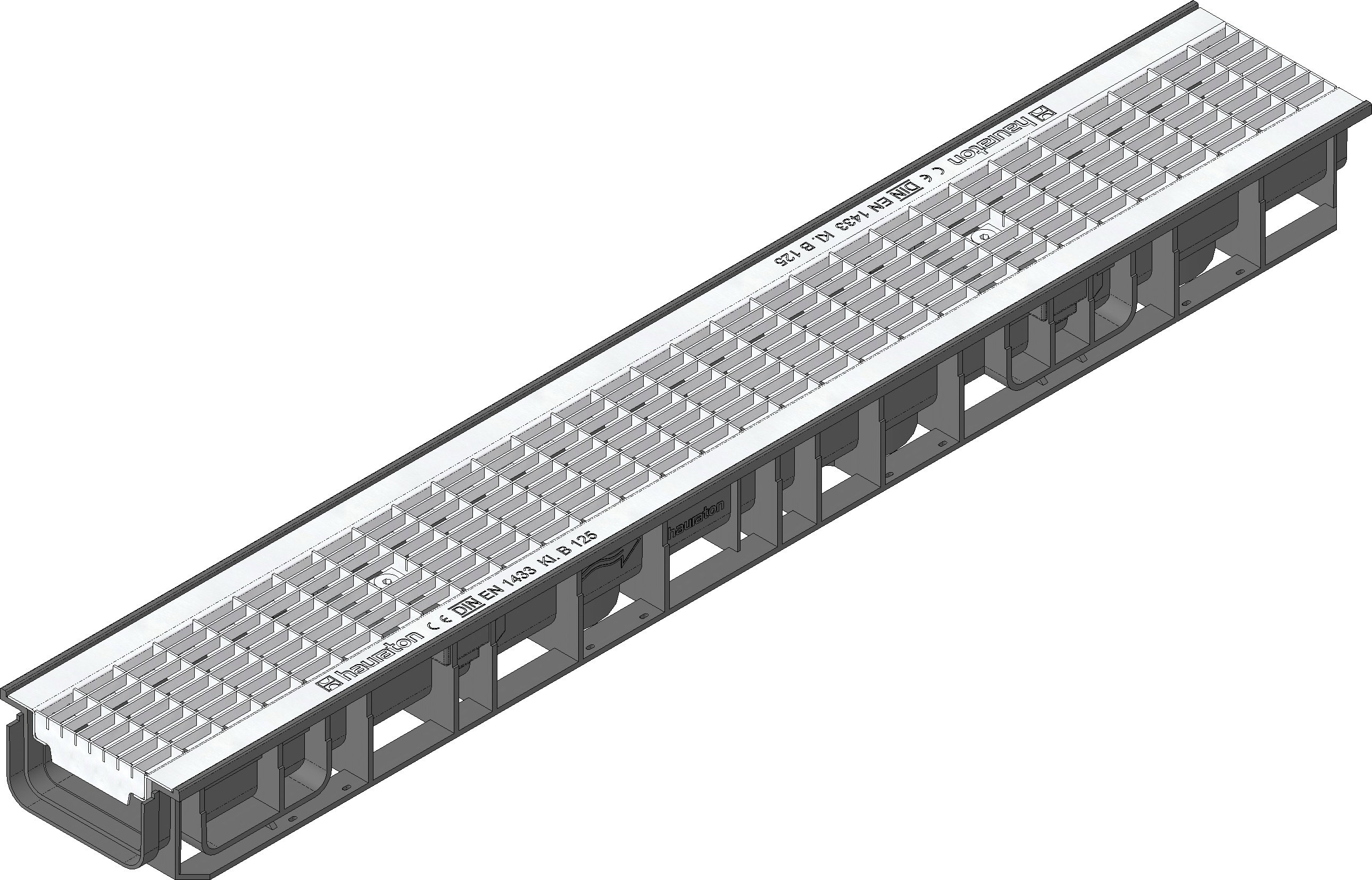

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
41216
Length
1000 mm
Width
150 mm
Height
80 mm
Einlegetiefe
2 mm
Weight
4.30 kg
Material
recycled polypropylene, RECYFIX Material (recycled PA), Stainless steel 1.4301
Intake cross-section
735.0 cm²/m
Nominal size
100
Internal channel cross-section
55 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 100 Channel type 80 with mesh grating MS 30/10 mm, stainless steel, cl. B 125, locked, 1 m
Product description
RECYFIX STANDARD 100 type 80 - Channel body made of recycled polypropylene, with vertical connection possibility DN/OD 75, with mesh grating MS 30/10 mm, made of stainless steel CNS 1.4301, overlying, with locking, load class A15 - B 125 according to EN 1433, LxWxH 1000x150x80 mm, item no. 41216
Packaging unit
88
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125,
Cemented floor class A 15 - C 250,
Pavement class C 250,
Asphalt class A 15 - B 125,
Asphalt class C 250,
Pavement class A 15 - B 125,
Concrete class C 250,
Pavement class C 250,
Installation instructions
