Article No. 48652
RECYFIX PRO 100
for NW 100, with integrated edge frames and silt bucket made of recycled PP, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

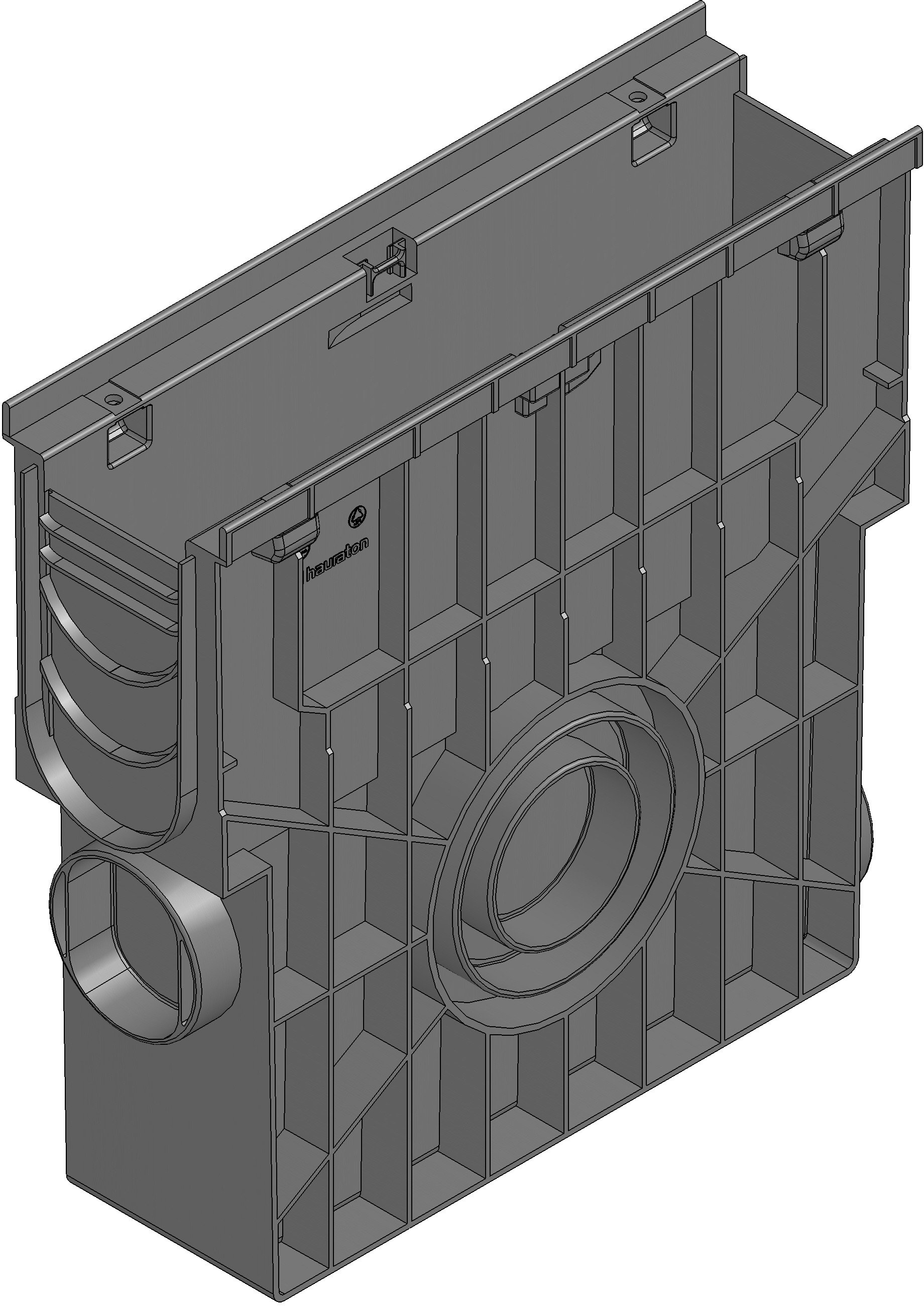

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
48652
Length
500 mm
Width
160 mm
Height
504 mm
Weight
4.38 kg
Material
recycled polypropylene
Nominal size
100
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with integrated edge frames, with silt bucket made of recycled PP, RECYFIX PRO 100, 0.5 m
Product description
RECYFIX PRO 100 - Sump unit made of recycled polypropylene, according to EN 1433, with integrated edge frames, 4-sided preformed pipe connection element (on the front sides DN/OD 110, on the sides DN/OD 110/160), with removable silt bucket made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX PRO 100, load class A 15 - C 250 according to EN 1433, in conjunction with slotted covers up to class D 400 according to EN 1433, LxWxH 500x160x504 mm, item no. 48652
Packaging unit
28
