Article No. 42735

RECYFIX PLUS 200, class B 125

Type 100 with mesh grating MS 30/30 mm, stainless steel, locked, 1.0 m

Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

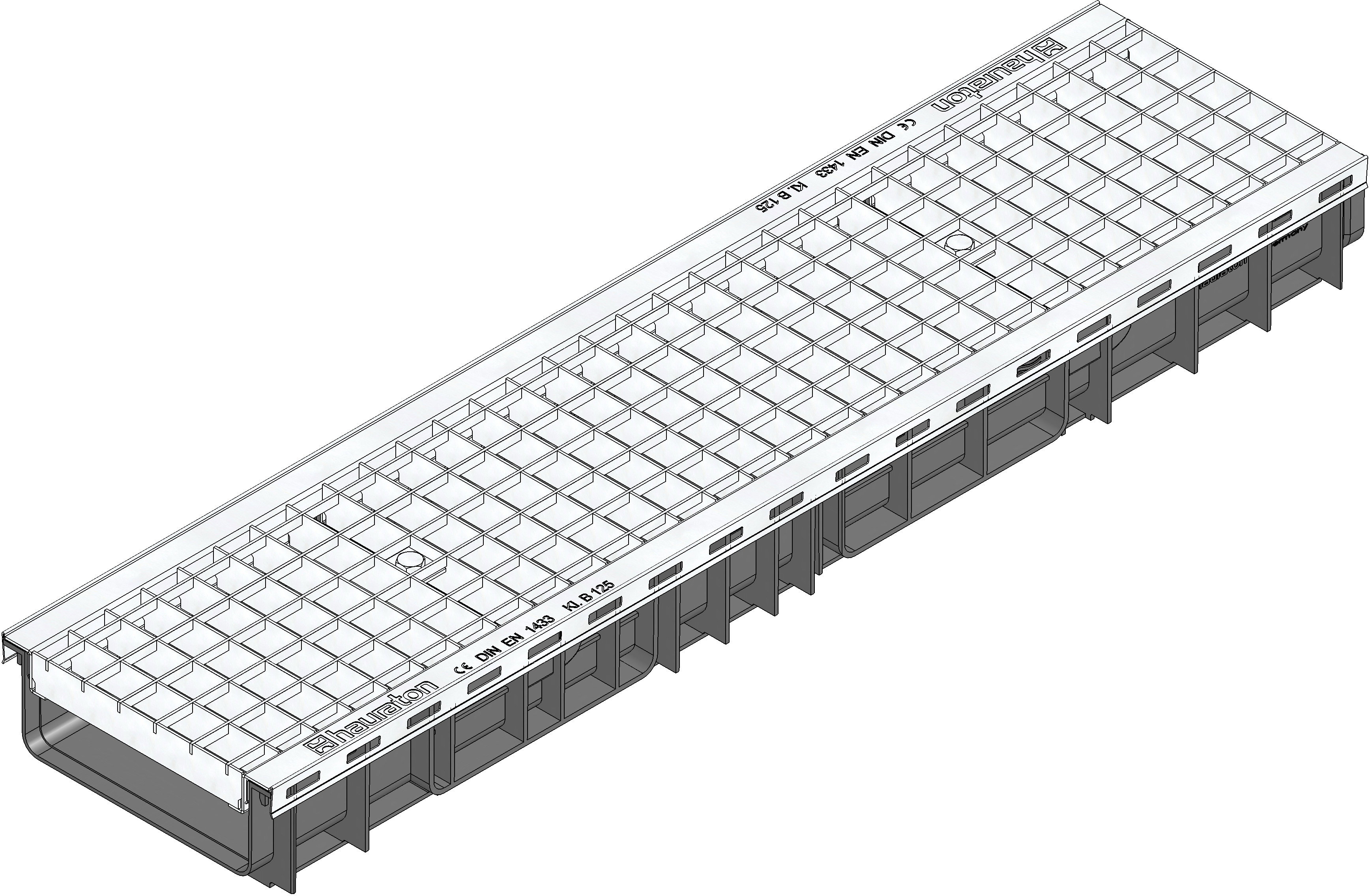

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Top view

Data Sheet

Technical information and metrics
Article No.
42735
Length
1000 mm
Width
247 mm
Height
100 mm
Einlegetiefe
2 mm
Weight
9.59 kg
Material
Galvanised steel, recycled polypropylene, Stainless steel 1.4301
Intake cross-section
1633.0 cm²/m
Nominal size
200
Internal channel cross-section
147 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material of angle housing
Stainless steel 1.4301
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PLUS 200 Channel type 100 with edge frames made of stainless steel and mesh grating MS 30/30 mm, stainless steel, cl. B 125, locked, 1 m
Product description
RECYFIX PLUS 200 type 100 - Channel body made of recycled polypropylene, with edge frames made of stainless steel CNS 1.4301, with vertical connection possibility DN/OD 75/110, with mesh grating MS 30/30 mm, made of stainless steel CNS 1.4301, with locking, load class A 15 - B 125 according to EN 1433, LxWxH 1000x247x100, item no. 42735
Packaging unit
36
