Article No. 42773

RECYFIX PLUS 200, class B 125

Type 020 with mesh grating MS 30/30 mm, stainless steel, locked, 1.0 m

Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

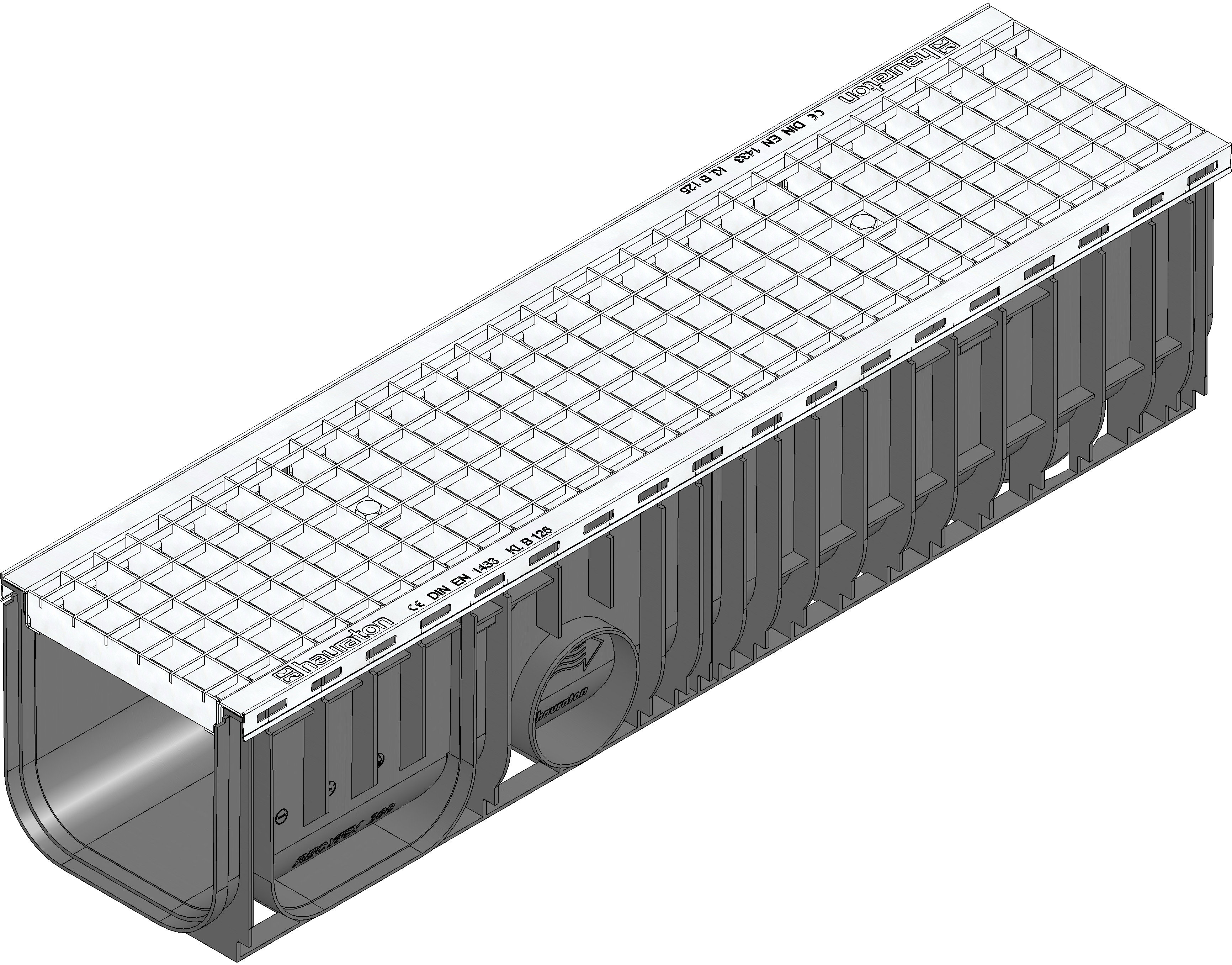

Product image

Top view

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
42773
Length
1000 mm
Width
247 mm
Height
236 mm
Einlegetiefe
2 mm
Weight
11.00 kg
Material
Galvanised steel, recycled polypropylene, Stainless steel (V2A), Stainless steel 1.4301
Intake cross-section
1633.0 cm²/m
Nominal size
200
Internal channel cross-section
397 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material of angle housing
Stainless steel 1.4301
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PLUS 200 Channel type 020 with edge frames made of stainless steel and mesh grating MS 30/30 mm, stainless steel, cl. B 125, locked, 1 m
Product description
RECYFIX PLUS 200 type 020 - Channel body made of recycled polypropylene, with edge frames made of stainless steel CNS 1.4301, with lateral (DN/OD 110) and vertical connection possibility (DN/OD 110/160), with mesh grating MS 30/30 mm, made of stainless steel CNS 1.4301, with locking, load class A 15 - B 125 according to EN 1433, LxWxH 1000x247x236 mm, item no. 42773
Packaging unit
16
