Article No. 40396
RECYFIX PLUS 100, class D 400
Type 010 with ductile iron grating, SW 80/6 mm, black, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

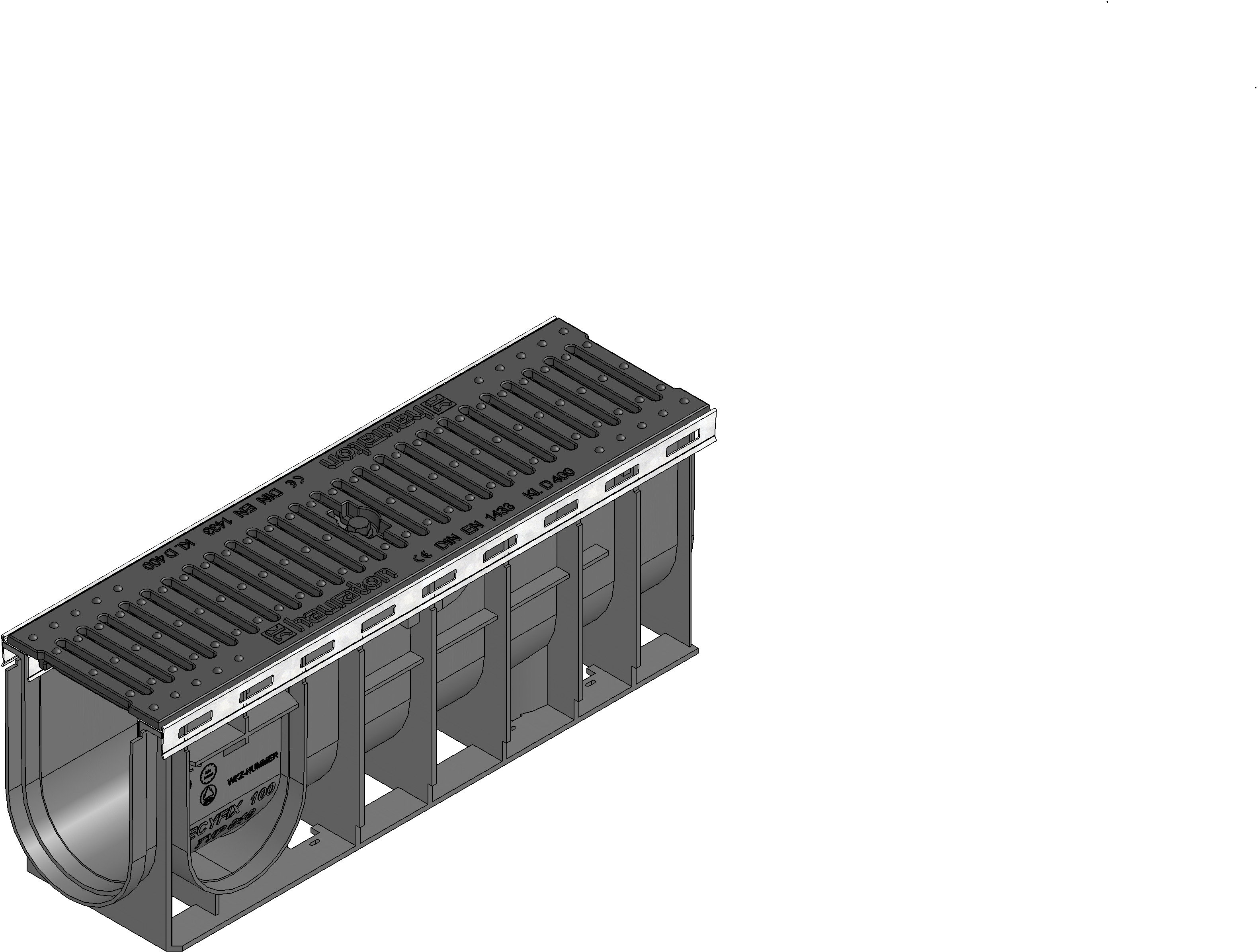

Product image

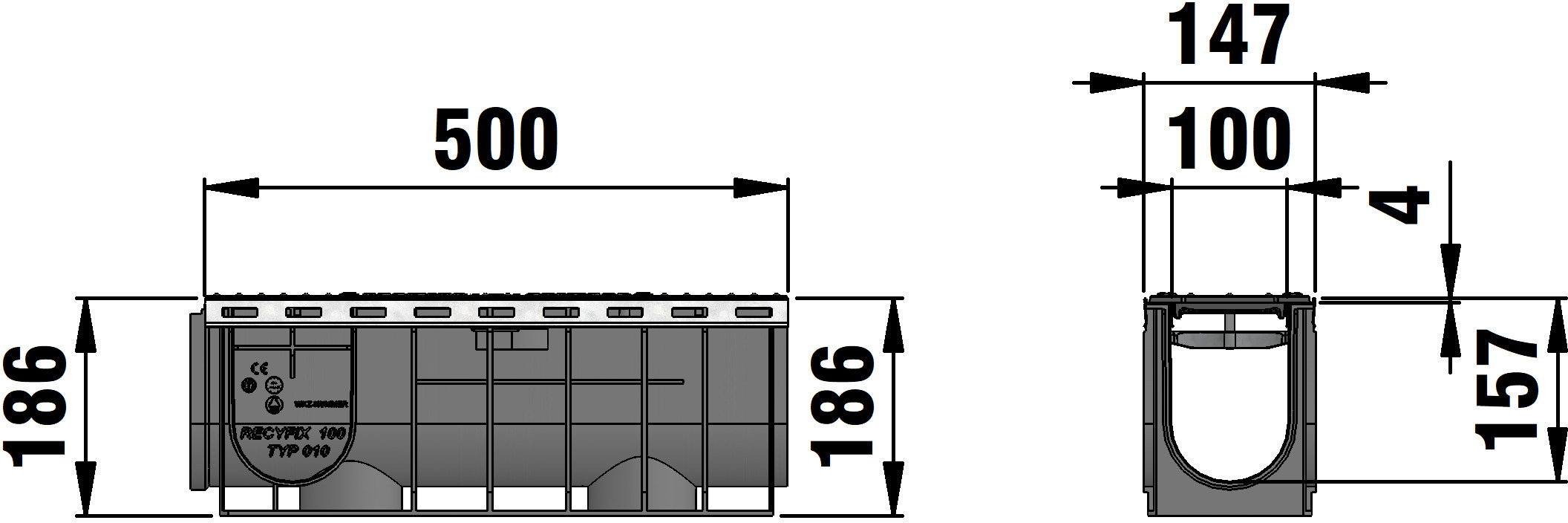

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
40396
Length
500 mm
Width
147 mm
Height
186 mm
Einlegetiefe
6 mm
Weight
5.09 kg
Material
Ductile iron GJS 500-7, recycled polypropylene, RECYFIX Material (recycled PA), Steel black galvanised, strip galvanized steel
Intake cross-section
254.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material of angle housing
strip galvanized steel
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PLUS 100 Channel type 010 with edge frames made of galvanised steel and ductile iron grating SW 80/6 mm, black, cl. D 400, locked, 0.5 m
Product description
RECYFIX PLUS 100 type 010 - Channel body made of recycled polypropylene, with edge frames made of galvanised steel, with ductile iron grating SW 80/6 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection and locking, load class A 15 - D 400 according to EN 1433, , LxWxH 500x147x186 mm, item no. 40396
Packaging unit
84
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125,
Pavement class A 15 - B 125,
Asphalt class A 15 - C 250,
Cemented floor class A 15 - C 250,
Concrete class C 250,
Pavement class C 250,
Pavement class C 250,
Asphalt class A 15 - B 125,
Asphalt class C 250,
Pavement class A 15 - B 125,
Concrete class C 250,
Pavement class C 250,
Installation instructions
