Article No. 41476
RECYFIX PLUS 100, class A 15
Type 010 with perforated grating "Elegance", galvanised, locked, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

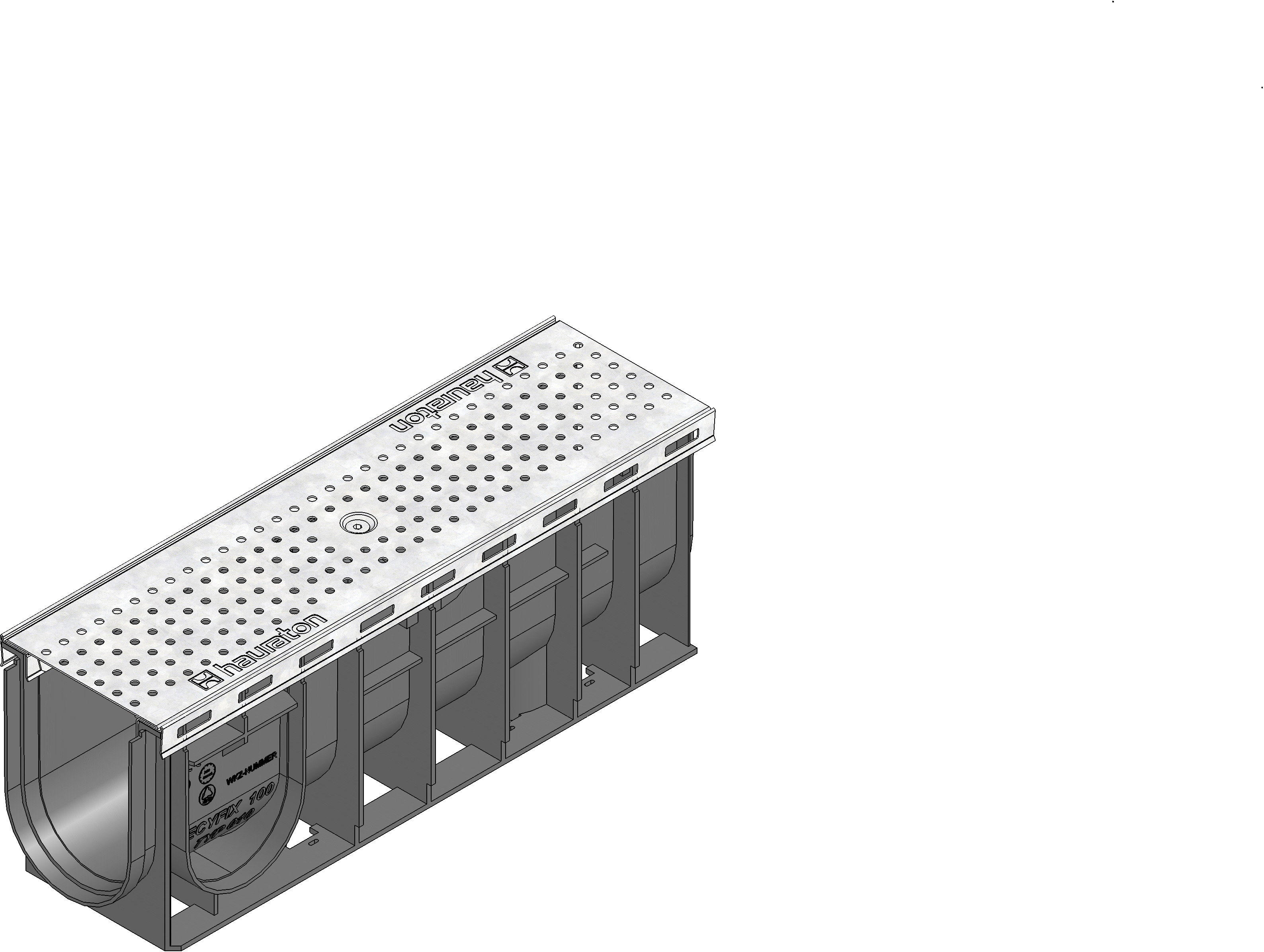

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
41476
Length
500 mm
Width
147 mm
Height
186 mm
Einlegetiefe
3 mm
Weight
2.72 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled polypropylene, RECYFIX Material (recycled PA), strip galvanized steel
Intake cross-section
100.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material of angle housing
strip galvanized steel
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PLUS 100 Channel type 010 with edge frames made of galvanised steel and perforated grating Ø 6 mm, galvanised, cl. A 15, locked, 0.5 m
Product description
RECYFIX PLUS 100 type 010 - Channel body made of recycled polypropylene, with edge frames made of galvanised steel, with perforated grating Ø 6 mm, made of galvanised steel, with locking, load class A 15 according to EN 1433, LxWxH 500x147x186 mm, item no. 41476
Packaging unit
84
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125,
Pavement class A 15 - B 125,
Asphalt class A 15 - C 250,
Cemented floor class A 15 - C 250,
Concrete class C 250,
Pavement class C 250,
Pavement class C 250,
Asphalt class A 15 - B 125,
Asphalt class C 250,
Pavement class A 15 - B 125,
Concrete class C 250,
Pavement class C 250,
Installation instructions
