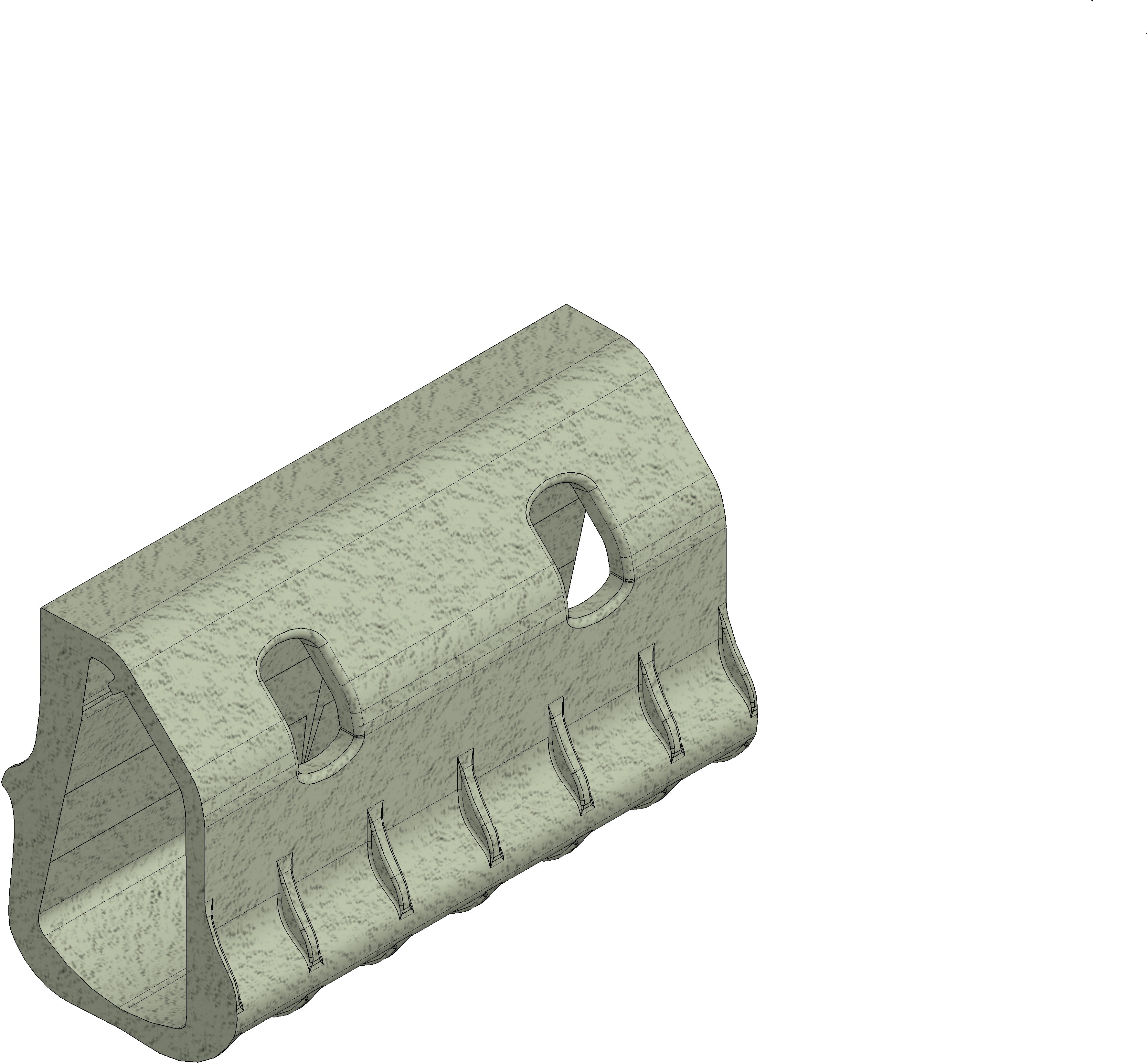

Product image

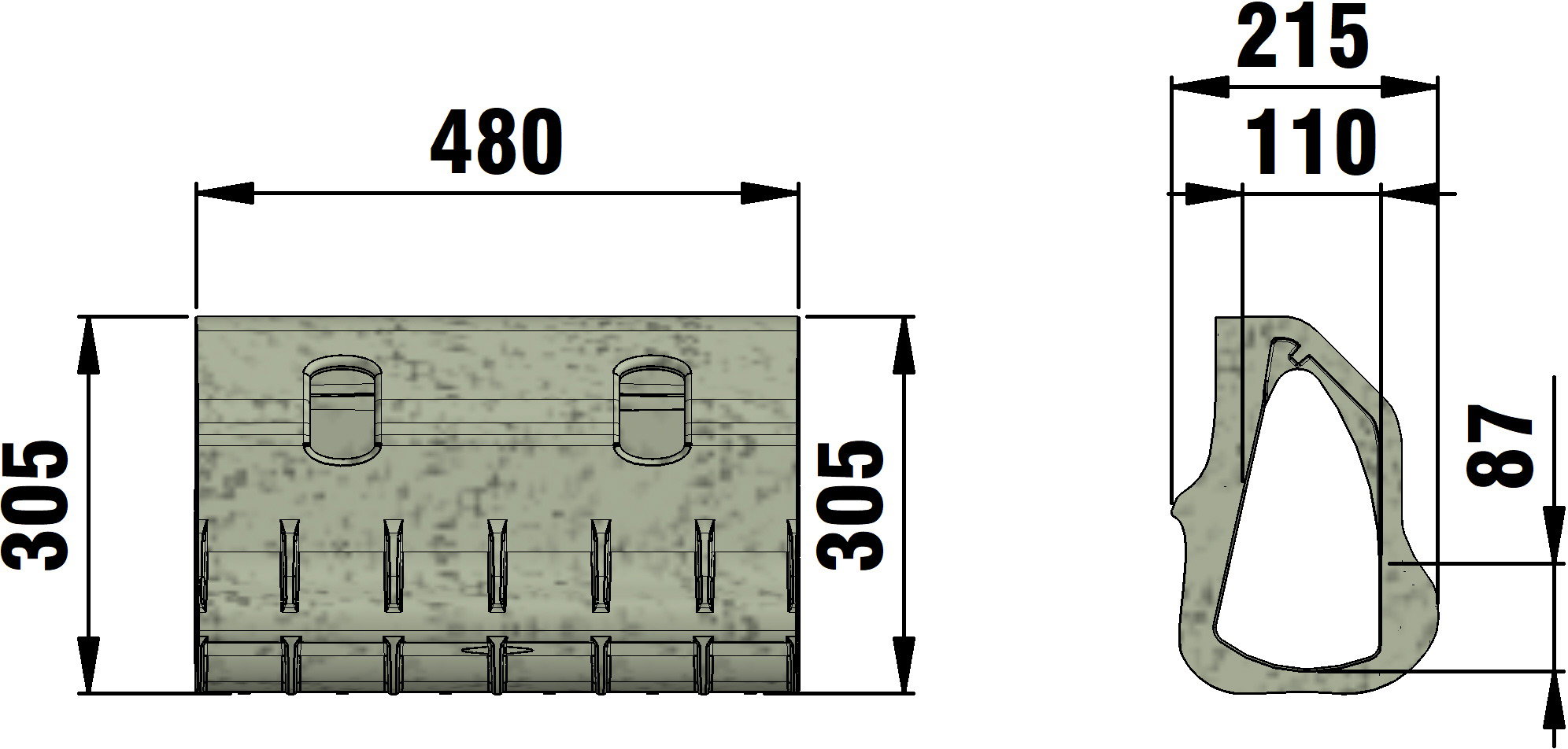

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
10561
Length
480 mm
Width
215 mm
Height
305 mm
Weight
7.00 kg
Material
reinforced Polypropylene
Height of angle housing
-
Intake cross-section
0.0 cm²/m
Nominal size
110
Internal channel cross-section
-
Fall
-
Type according to DIN EN 1433
M
Regulations
EN 1433
Sales text
KERBFIX FB Internal Radius Unit for radii from 27 to 13 m, 0.48 m
Product description
KERBFIX - Full Battered internal radius, for radii from 27 to 13 m, with integrated drainage, made of recycled PP, grey, according to EN 1433, with 2 side openings as water inlets, load class from A 15 - D 400, LxWxH 480x215x305 mm, item no. 10561
Packaging unit
-
national declaration of performance
Nation DoP
Tender Texts
Installation example
Asphalt class A 15 - D 400,
Concrete class A 15 - D 400,
