Article No. 32165
Inspection elements
Access unit with removable inner pan, type 180, neck height 130 mm, asymmetric, galvanised
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

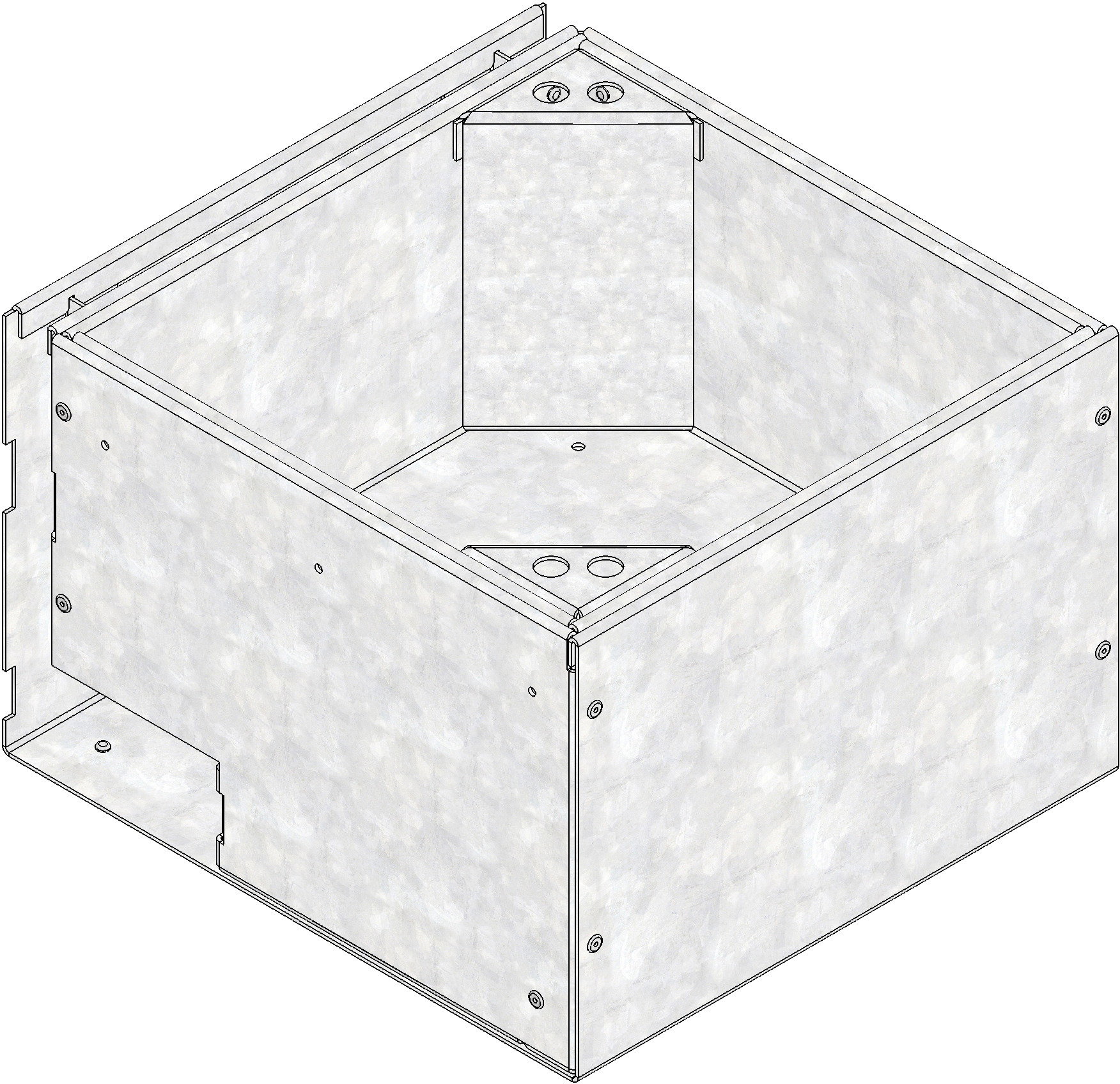

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
32165
Length
253 mm
Width
270 mm
Height
180 mm
Weight
6.17 kg
Material
PVC-U, strip galvanized steel
Nominal size
100
Sales text
Access unit with removable inner pan, SW 12 mm, neck height 130 mm, galvanised, asymmetric, cl. A 15, with PVC-screw socket DN/OD 100, grey and blind cover, galvanised, STEELFIX SLOT 100 type 180, 0.25x0.27 m
Product description
STEELFIX SLOT 100 type 180 - Access unit, made of galvanised steel, with removable inner pan for on-site infilling, with PVC-screw socket DN/OD 100, grey, and blind cover, made of galvanised steel, vertical connection possibility with screw socket DN/OD 100, LxWxH 253x270x180 mm, item no. 32165
Packaging unit
-
