Article No. 32163
Inspection elements
Access unit with removable inner pan, type 150, neck height 100 mm, asymmetric, galvanised
Questions?
Our experienced planning team will be happy to help you.
Get in touch

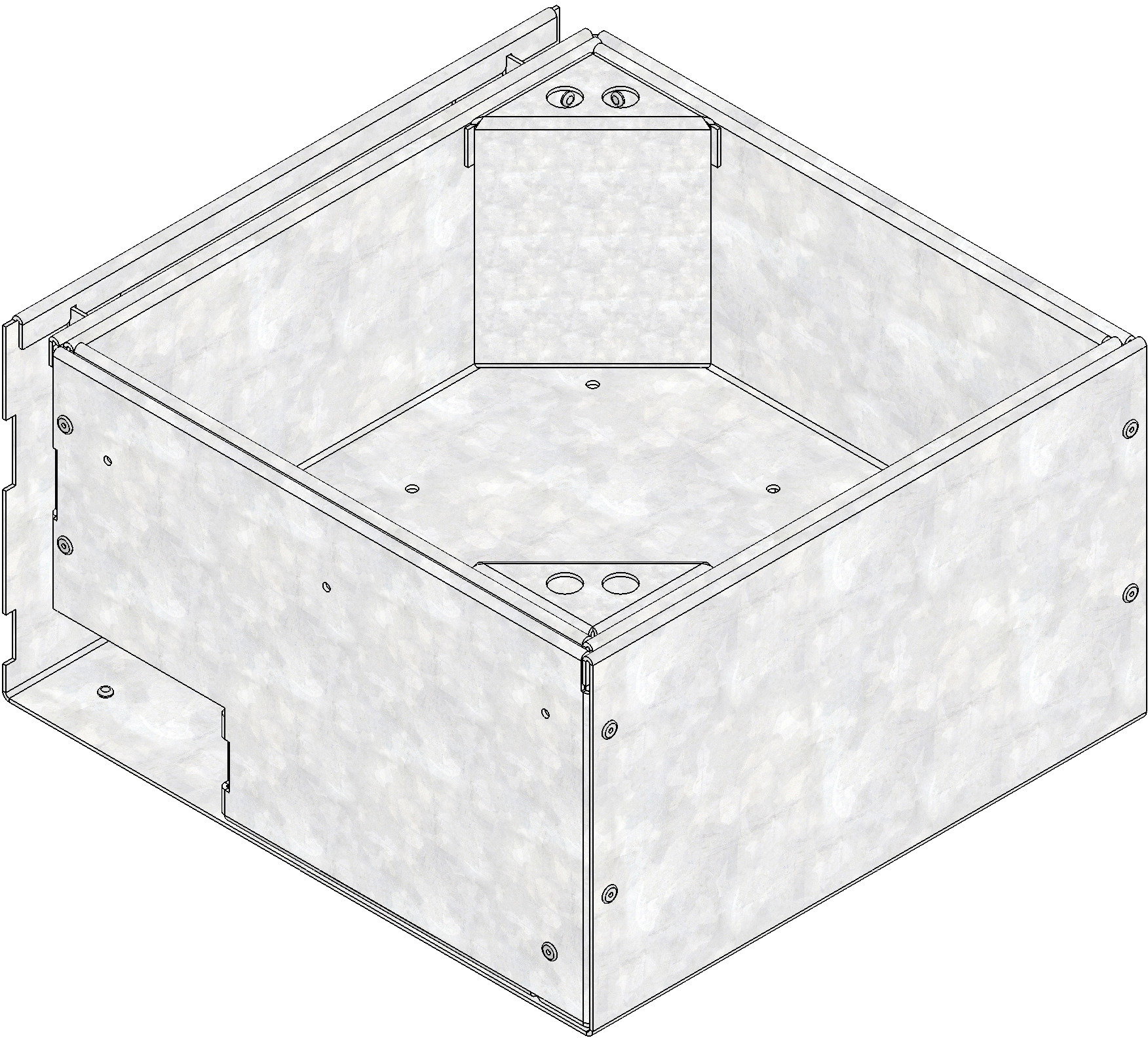

Product image
Technical drawing
Drawing
Technical information and metrics
Article No.
32163
Length
253 mm
Width
270 mm
Height
150 mm
Weight
5.38 kg
Material
PVC-U, strip galvanized steel
Nominal size
100
Sales text
Access unit with removable inner pan, SW 12 mm, neck height 100 mm, galvanised, asymmetric, cl. A 15, with PVC-screw socket DN/OD 100 grey and blind cover galvanised, STEELFIX SLOT 100 type 150, 0.25x0.27 m
Product description
STEELFIX SLOT 100 type 150 - Access unit, made of galvanised steel, with removable inner pan for on-site infilling, with PVC-screw socket DN/OD 100, grey, and blind cover, made of galvanised steel, vertical connection possibility with screw socket DN/OD 100, LxWxH 253x270x150 mm, item no. 32163
Packaging unit
-
