Article No. 10553
Full Battered
Full Battered Rodding Access/Outlet Unit
Questions?
Our experienced planning team will be happy to help you.
Get in touch

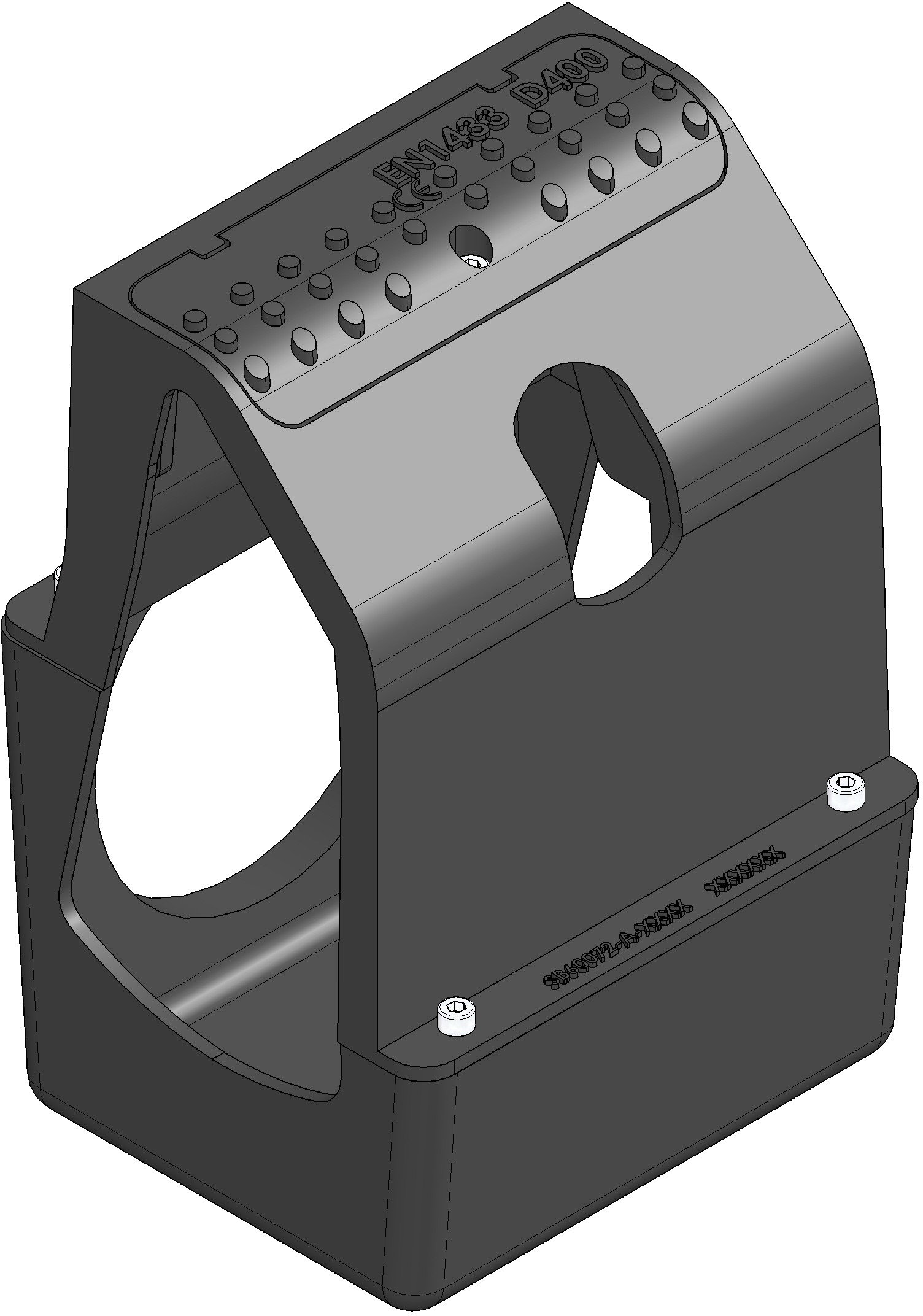

Product image

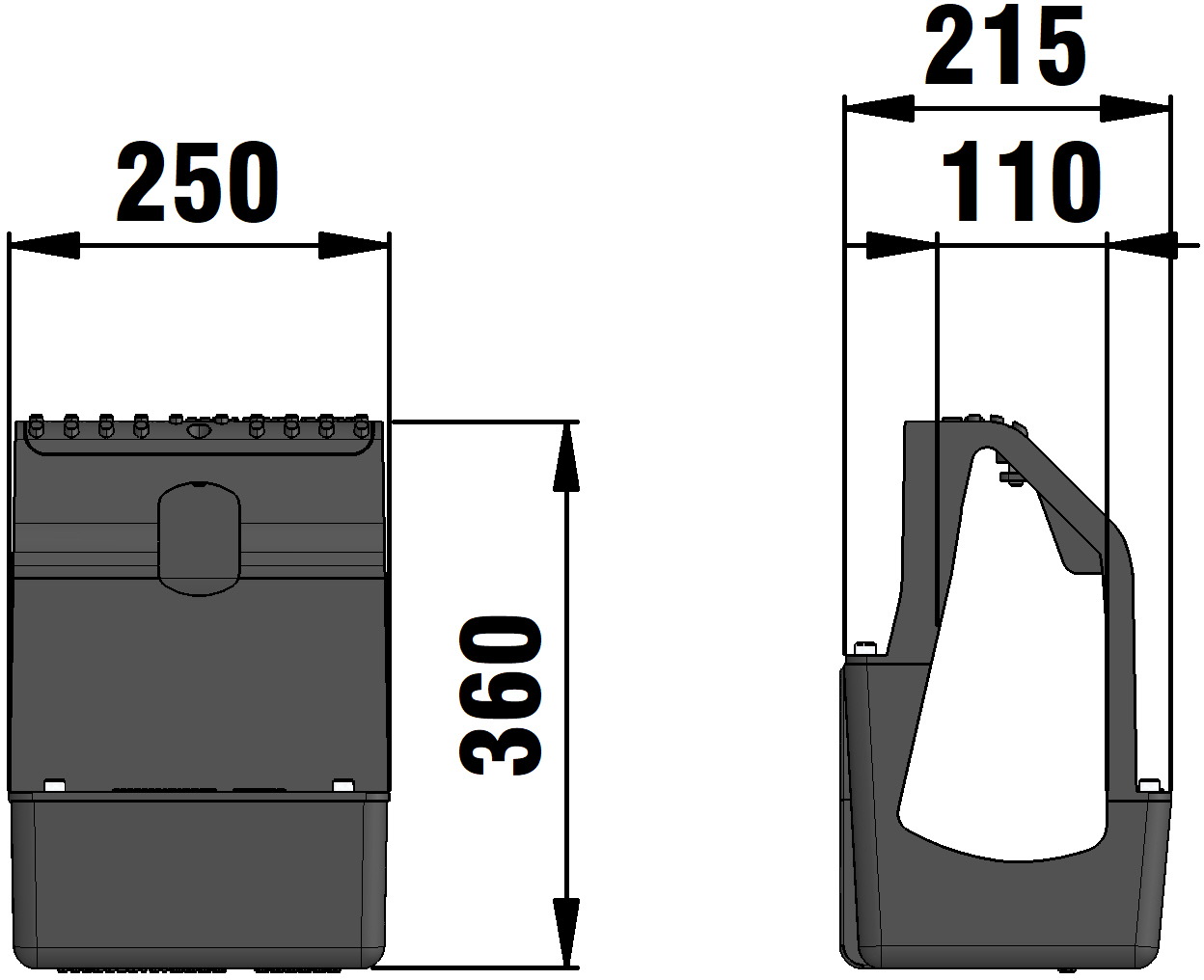

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10553
Length
250 mm
Width
215 mm
Height
360 mm
Weight
19.00 kg
Material
Ductile iron GJS 500-7
Nominal size
110
Sales text
KERBFIX Full Battered Rodding Access, cl. D 400, 0.25 m
Product description
KERBFIX - Half Battered Rodding Access Outlet Unit, made of ductile iron with ductile iron cover, according to EN 1433, with lateral pipe connection possibility 162 mm diameter, load class A 15 - D 400, LxWxH 250x215x360 mm, item no. 10553
Packaging unit
-
