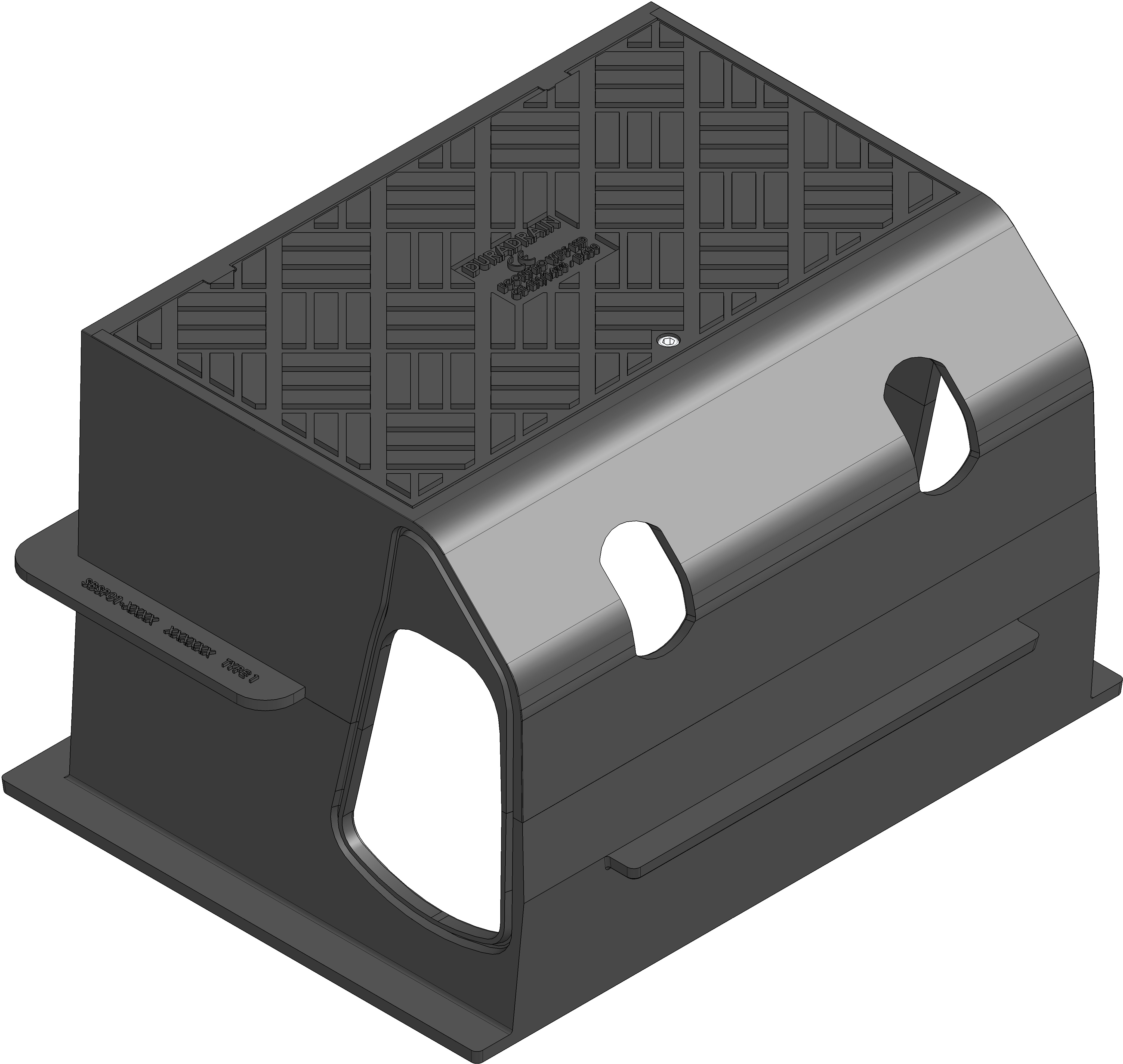

Product image

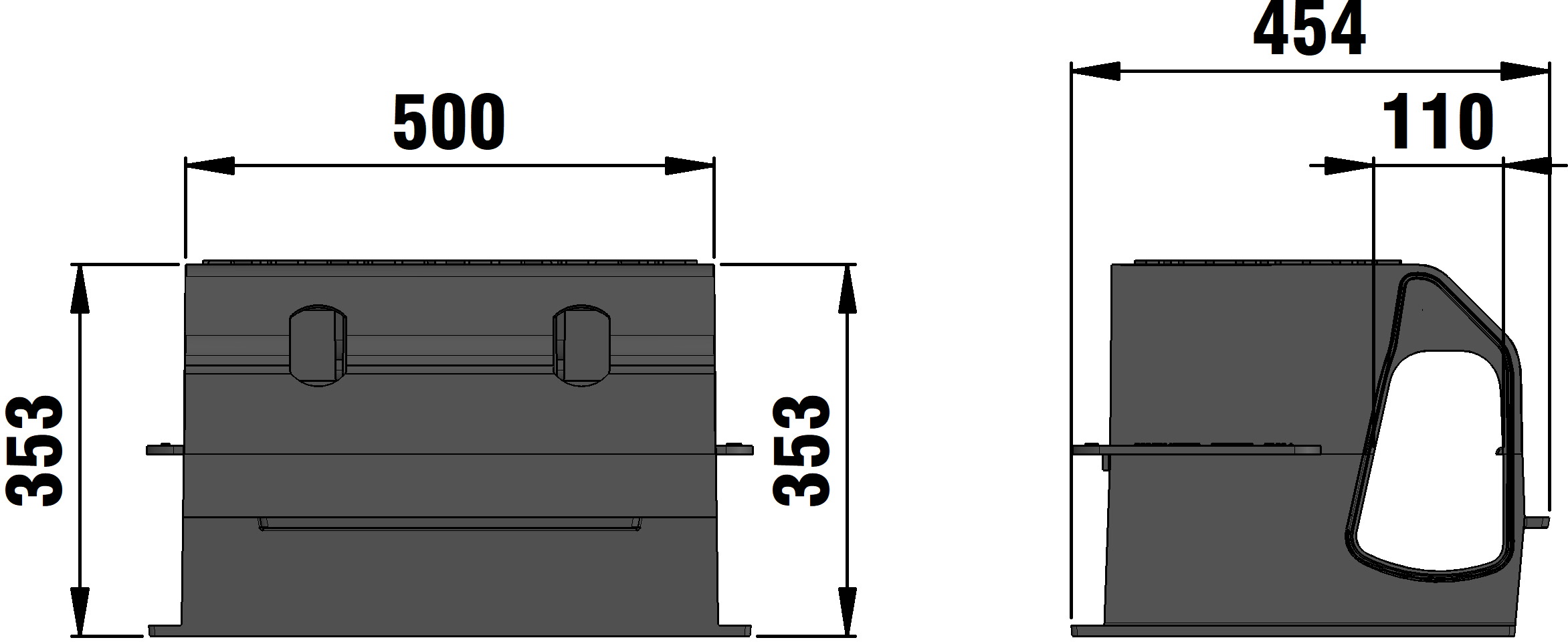

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10550
Length
500 mm
Width
454 mm
Height
353 mm
Weight
78.00 kg
Material
Ductile iron GJS 500-7
Nominal size
110
Sales text
KERBFIX Full Battered Gully Outfall, cl. D 400, 0.5 m
Product description
KERBFIX - Full Battered Gully Outfall, made of ductile iron with ductile iron cover, according to EN 1433, to sit over standard street gullies, free outfall with 2 side openings as water inlets, load class A 15 - D 400, LxWxH 500x454x353 mm, item no. 10550
Packaging unit
-
