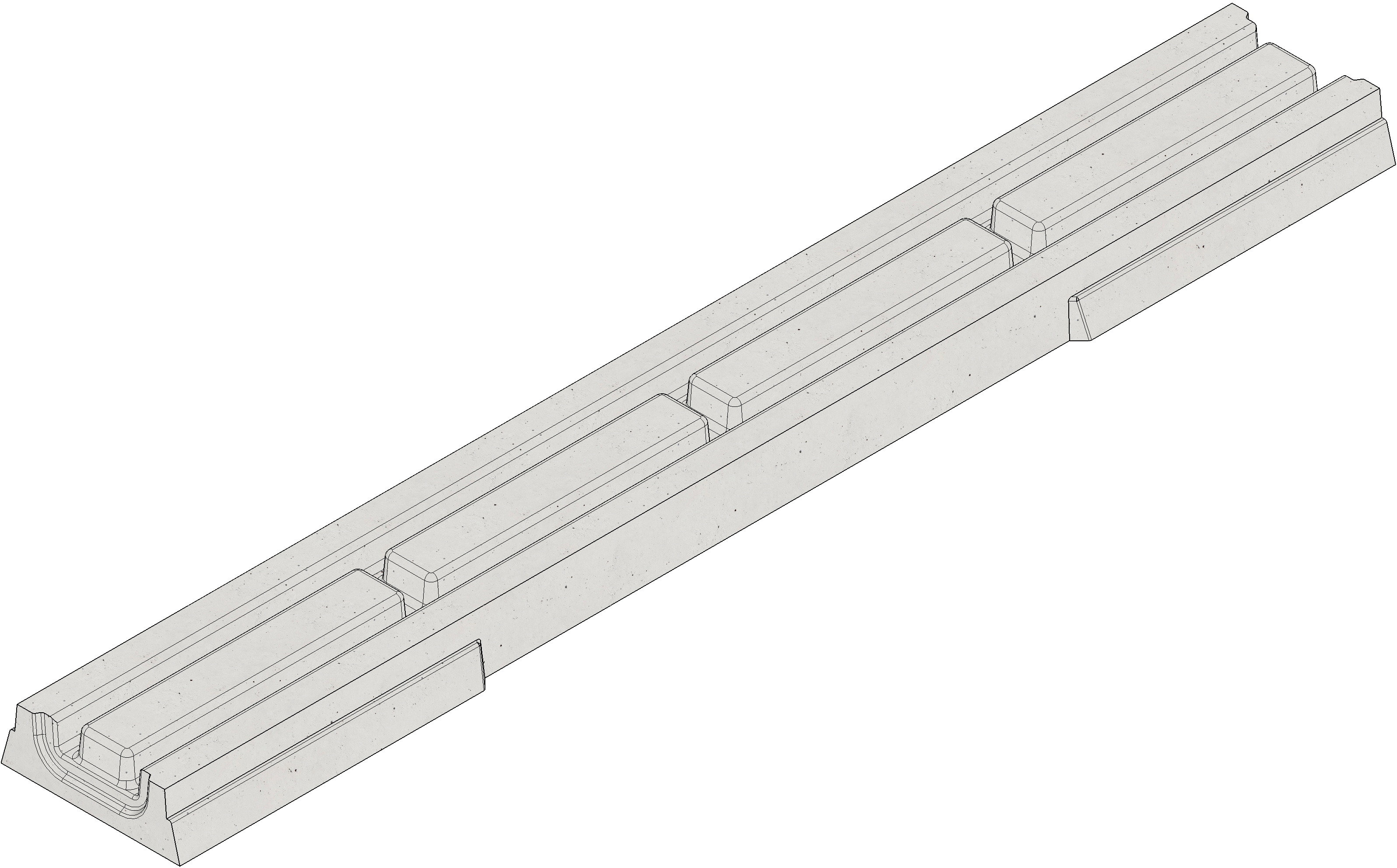

Product image

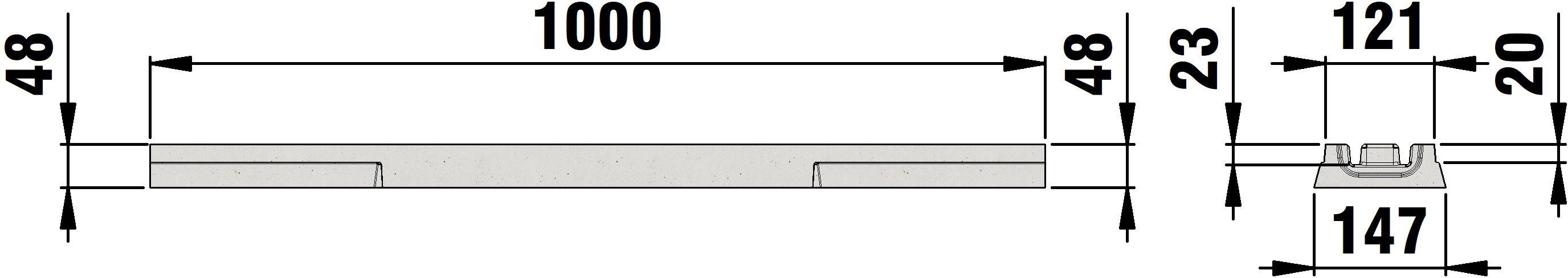

Technical drawing
Drawing (CAD)
Drawing

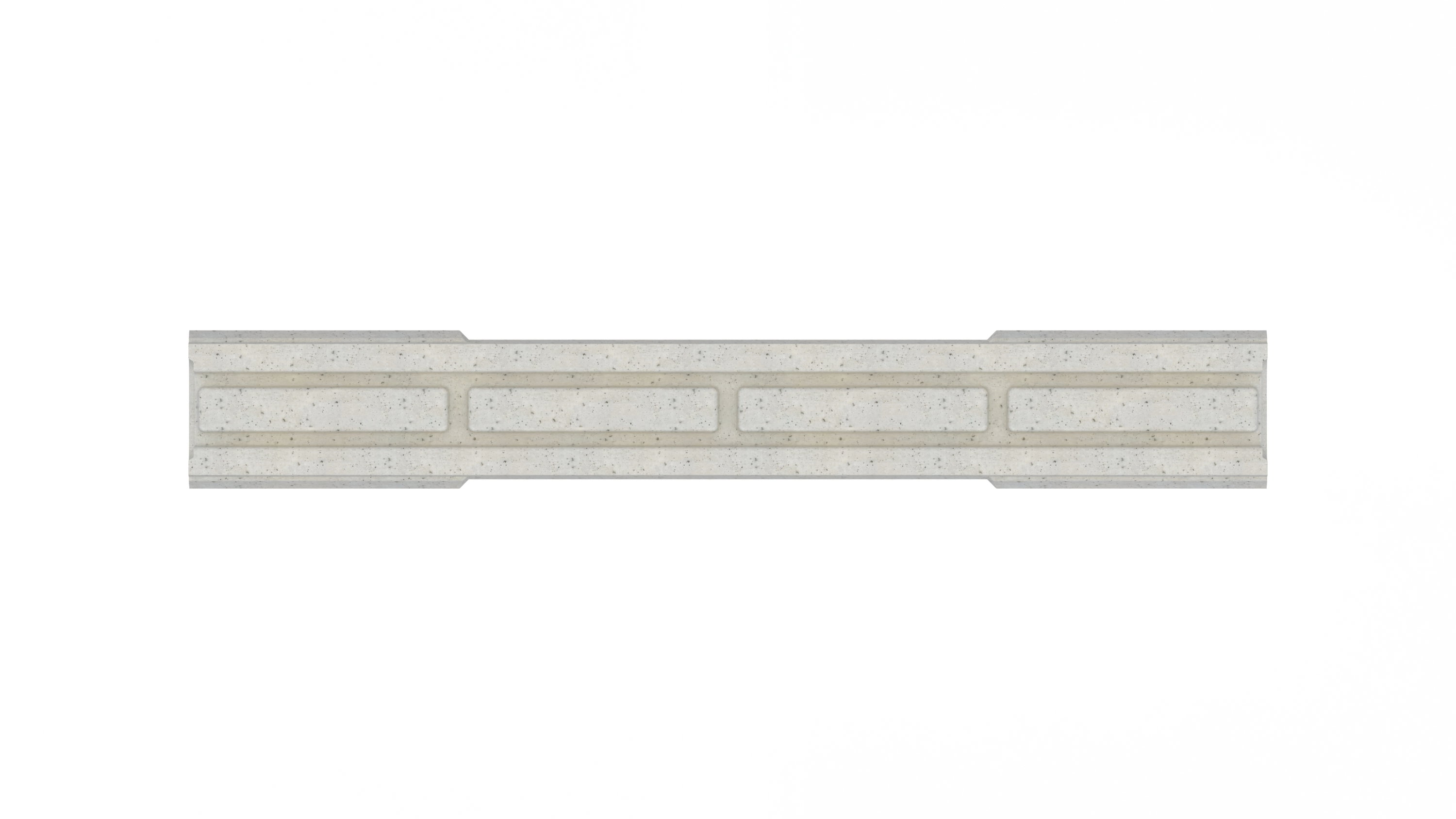

Top view
Data Sheet
Technical information and metrics
Article No.
10100
Length
1000 mm
Width
147 mm
Height
48 mm
Weight
12.82 kg
Material
fibre-reinforced concrete
Height of angle housing
-
Internal channel cross-section
-
Fall
-
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX PARK Evaporation Channel with longitudinal slots SW 14 and cross slots SW 19 mm, 1 m
Product description
FASERFIX PARK Evaporation channel made of fibre-reinforced concrete, with longitudinal slots SW 14 mm and cross slots SW 19 mm, load class A 15 - D 400 according to EN 1433 , CE compliant, with sealing groove, LxWxH 1000x147x48 mm, item no. 10100
Packaging unit
80
Declaration of Performance
Tender Texts

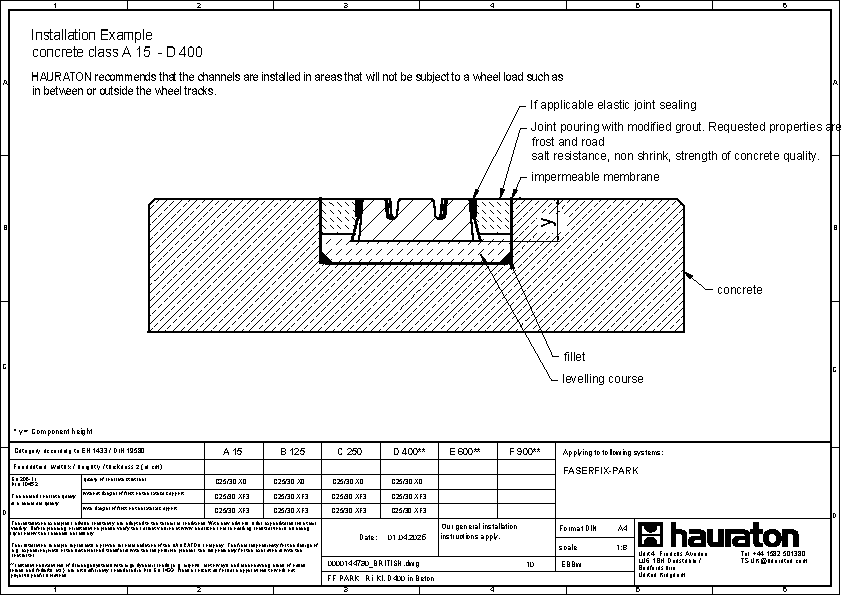

Installation example
Concrete class A 15 - D 400,
