Article No. 12509

FASERFIX KS 200 with gradient 0.5 %, up to load class F 900

Type 9, stainless steel, 1.0 m

Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

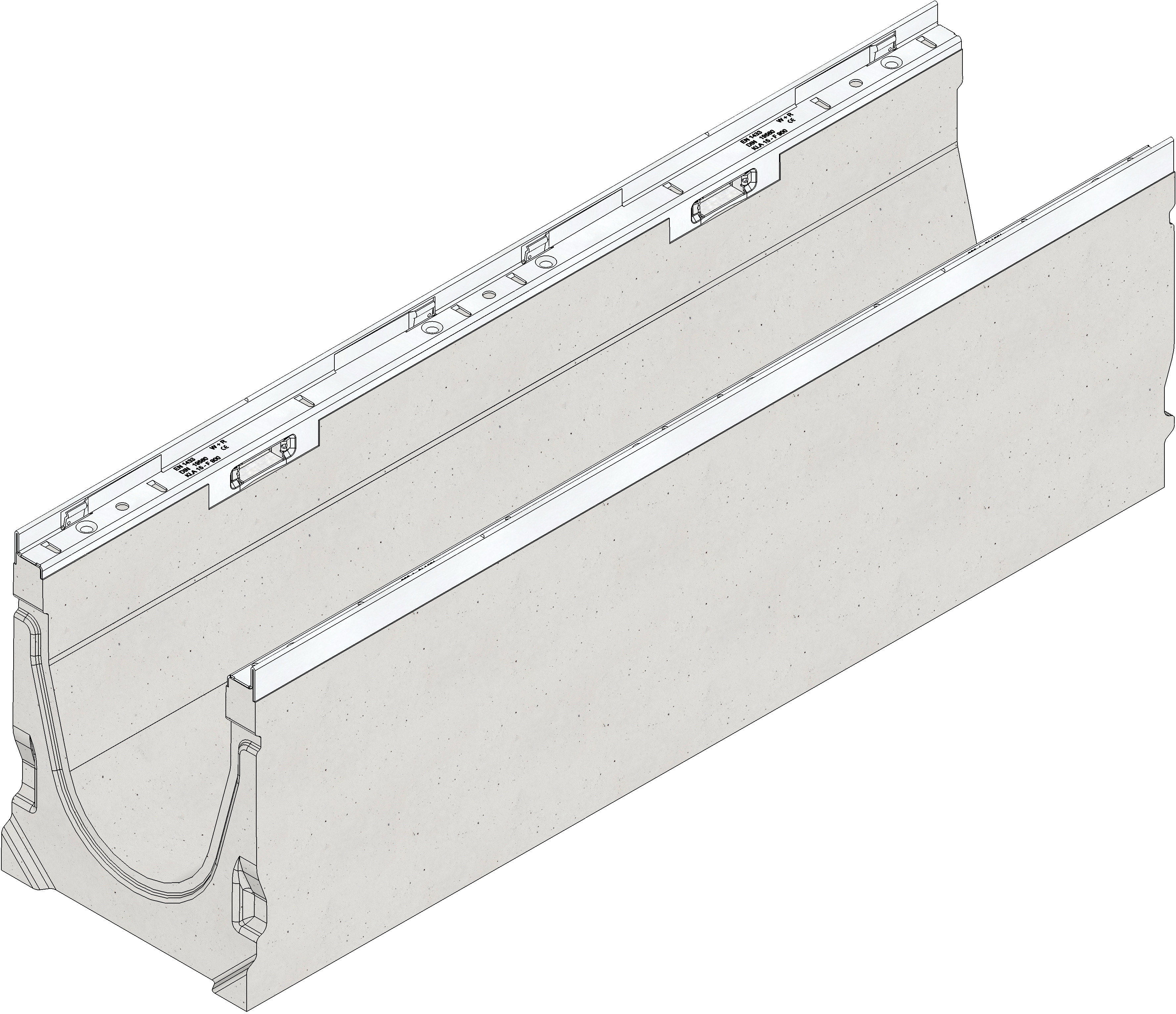

Product image

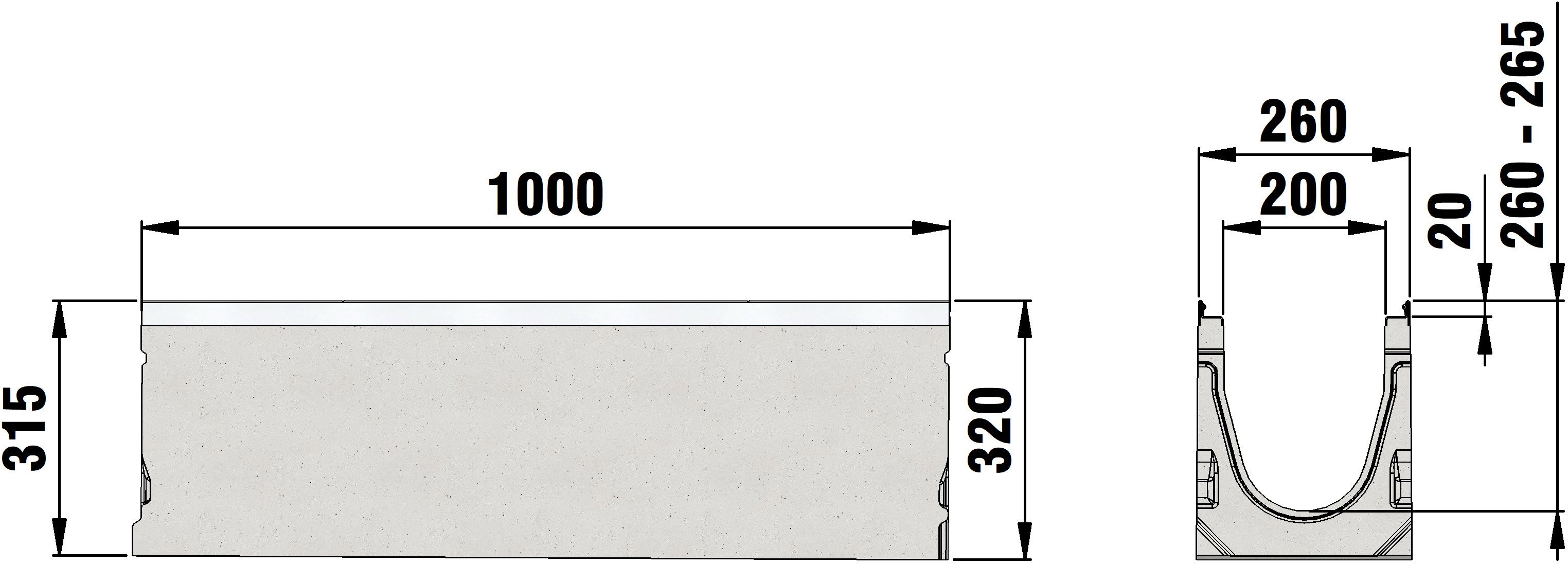

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
12509
Length
1000 mm
Width
260 mm
Height
315 - 320 mm
Weight
86.20 kg
Material
fibre-reinforced concrete, Stainless steel 1.4301
Height of angle housing
20 mm
Nominal size
200
Internal channel cross-section
404 cm²
Fall
0.5 %
Fixing type
Locking handle, SIDE-LOCK
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX KS 200 Channel body type 9 with edge frames made of stainless steel, 1 m
Product description
FASERFIX KS 200 type 1 - 9 - Channel body made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, sloping depth channel 0.5 %, with edge frames made of stainless steel CNS 1.4301 and boltless quick-locking system SIDE-LOCK for quick and easy installation of the grating, additional locking mechanism applicable, 8-fold locking, with sealing groove, LxWxH 1000x260x275-320 mm, item no. 12501 - 12509
Packaging unit
8
