Article No. 33223
FASERFIX KS 200
for NW 200, for Type 015 + 020, with edge frames made of stainless steel and silt bucket made of recycled PP, with PVC-U socket DN/ OD 200, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

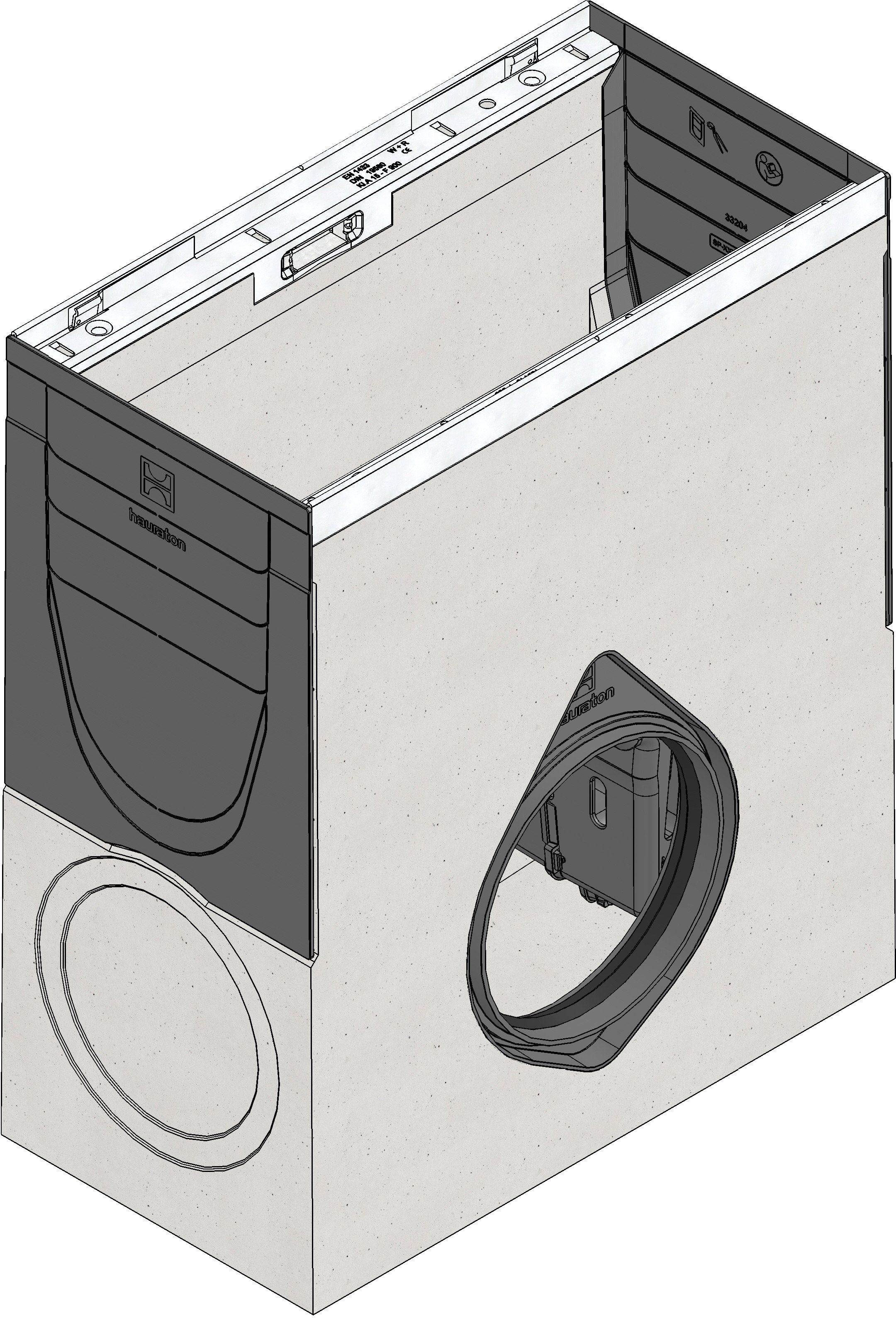

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
33223
Length
500 mm
Width
260 mm
Height
603 mm
Weight
67.80 kg
Material
fibre-reinforced concrete, recycled polypropylene, Stainless steel 1.4301
Nominal size
200
Sales text
Sump unit with edge frames made of stainless steel, lateral with integrated PVC-U socket DN/OD 200, with silt bucket made of recycled PP and 2 end caps made of recycled PP, for channels type 015 + 020, FASERFIX KS 200, 0.5 m
Product description
FASERFIX KS 200 type 020 - Sump unit made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with edge frames made of stainless steel CNS 1.4301 and boltless quick-locking system SIDE-LOCK, for quick and easy installation of the grating, 4-fold locking, on front sides connection possibility DN/OD 160 and DN/OD 200 and on the side with integrated PVC-U pipe connection DN/OD 200, with silt bucket made of recycled polypropylene and 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types 015 + 020, easy to assemble on site, LxWxH 500x260x603 mm, item no. 33223
Packaging unit
6
