Article No. 12072
FASERFIX KS 200, class E 600
Mesh grating MS 11/30 mm, galvanised, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

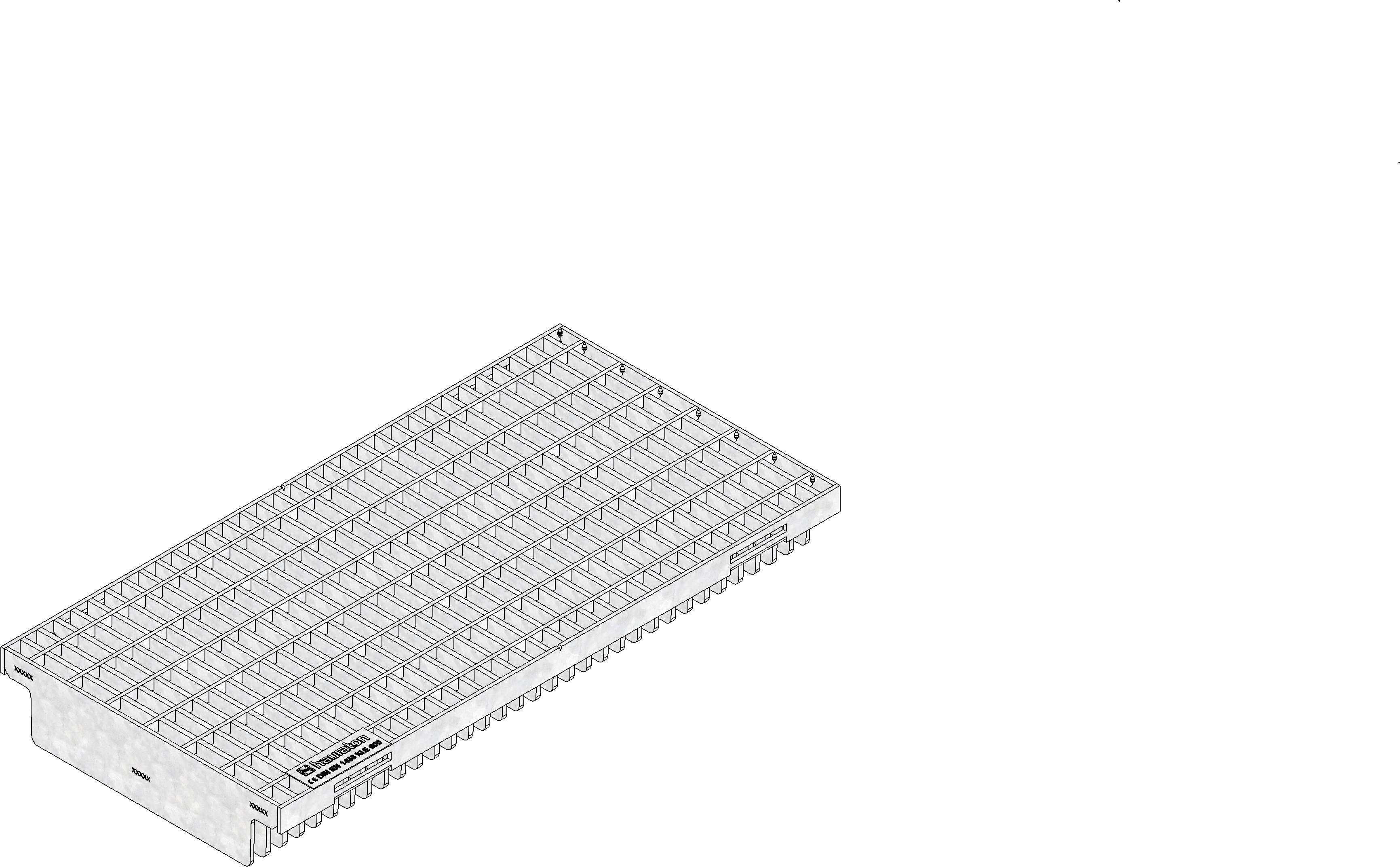

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
12072
Length
500 mm
Width
249 mm
Height
61 mm
Einlegetiefe
20 mm
Weight
14.60 kg
Material
hot-dip galvanised steel
Intake cross-section
1590.0 cm²/m
Nominal size
200
Inlet opening
30
Fixing type
SIDE-LOCK
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating MS 11/30 mm, galvanised, cl. E 600, FASERFIX KS 200, 0.5 m
Product description
FASERFIX KS 200 - Mesh grating MS 11/30 mm, galvanised, with longitudinal slide protection, load class A 15 - E 600 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 12072
Packaging unit
70
Declaration of Performance
