Article No. 8109
FASERFIX KS 100, class C 250
FIBRETEC design slotted grating SW 110/9 mm, in the colour Sun, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

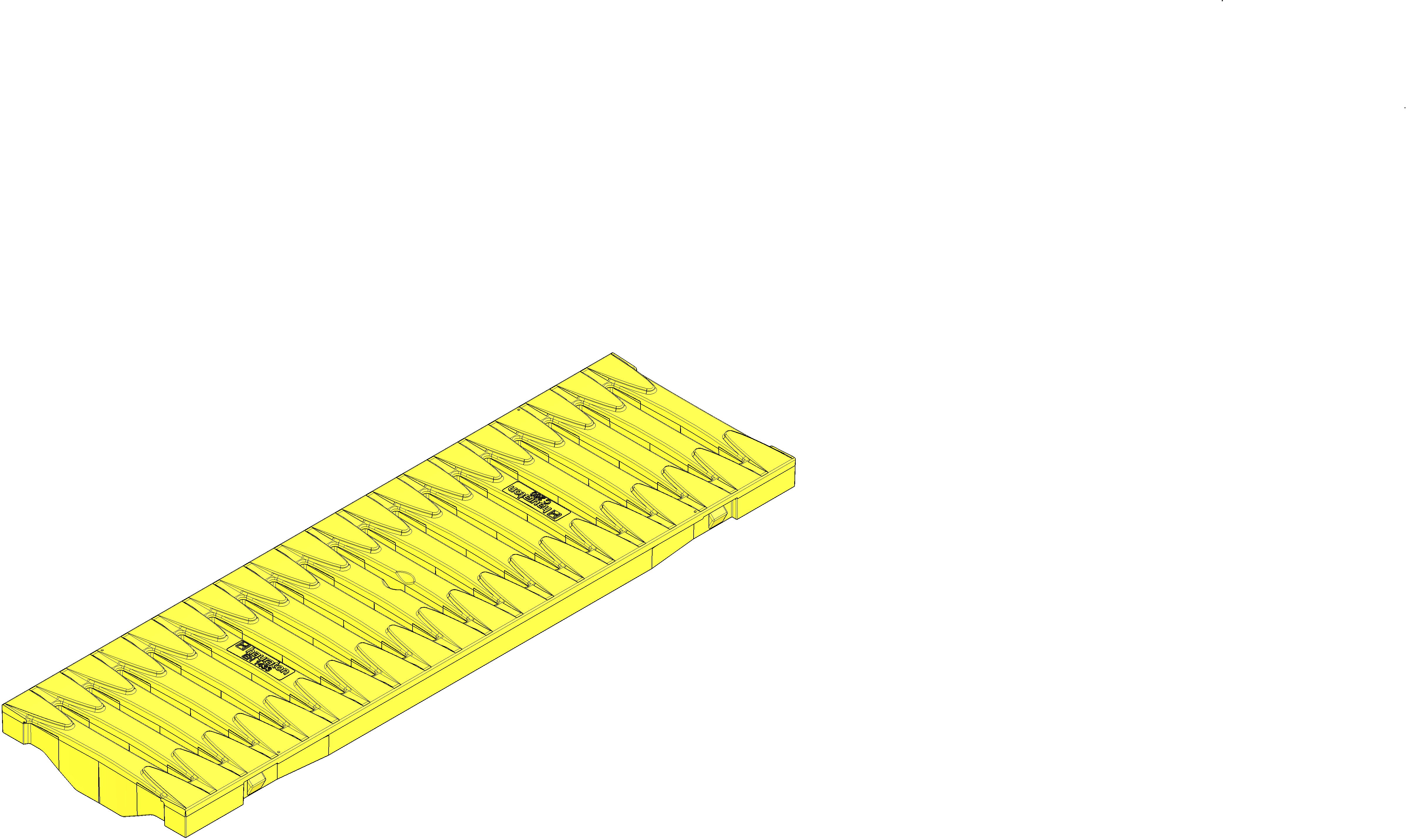

Product image
Technical drawing
Drawing (CAD)
Top view
Data Sheet
Technical information and metrics
Article No.
8109
Length
500 mm
Width
149 mm
Height
38 mm
Einlegetiefe
20 mm
Weight
1.05 kg
Material
reinforced Polyamide
Intake cross-section
372.0 cm²/m
Nominal size
100
Inlet opening
9
Fixing type
Locking handle, SIDE-LOCK
Material grating
reinforced Polyamide
Regulations
EN 1433, DIN 19580
Sales text
FIBRETEC Design slotted grating SW 110/9 mm, in the colour Sun, cl. C 250, FASERFIX KS 100, 0.5 m
Product description
FASERFIX KS 100 - FIBRETEC design slotted grating SW 110/9 mm, in the colour Sun, made of fibre-reinforced polyamide, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, installation length 500 mm, item no. 8109
Packaging unit
264
Declaration of Performance
