Article No. 8102
FASERFIX KS 100, class C 250
FIBRETEC design slotted grating SW 110/9 mm, in the colour Fern, 0.5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

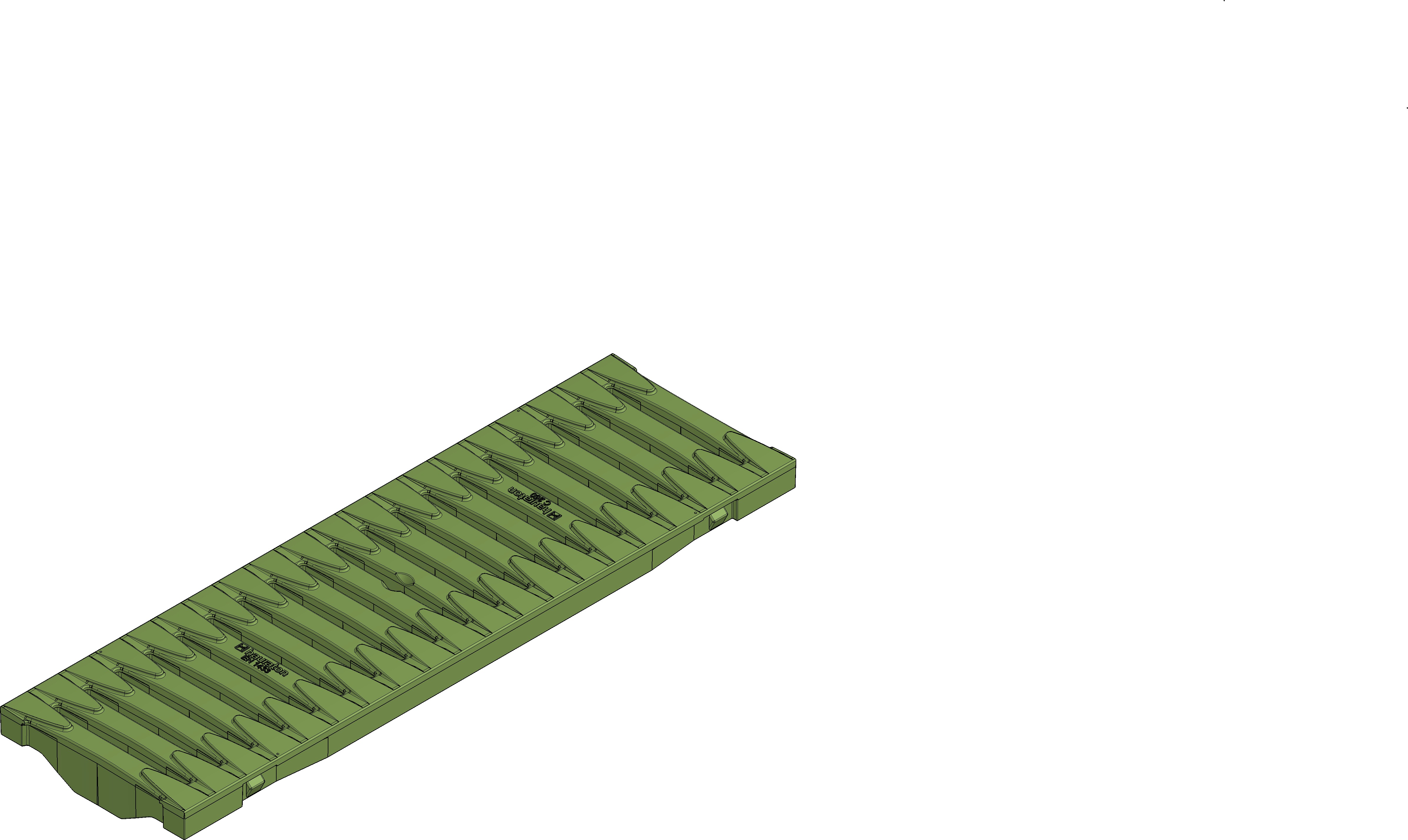

Product image
Top view
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
8102
Length
500 mm
Width
149 mm
Height
38 mm
Einlegetiefe
20 mm
Weight
1.05 kg
Material
reinforced Polyamide
Intake cross-section
372.0 cm²/m
Nominal size
100
Inlet opening
9
Fixing type
Loose blatant, Locking handle, SIDE-LOCK
Material grating
reinforced Polyamide
Regulations
EN 1433, DIN 19580
Sales text
FIBRETEC Design slotted grating SW 110/9 mm, in the colour Fern, cl. C 250, FASERFIX KS 100, 0.5 m
Product description
FASERFIX KS 100 - FIBRETEC design slotted grating SW 110/9 mm, in the colour Fern, made of fibre-reinforced polyamide, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, installation length 500 mm, item no. 8102
Packaging unit
264
Declaration of Performance
