Article No. 65473
Extension frame element 40 x 40
Frame for Gully-extension 40x40, type 150, stainless steel
Questions?
Our experienced planning team will be happy to help you.
Get in touch

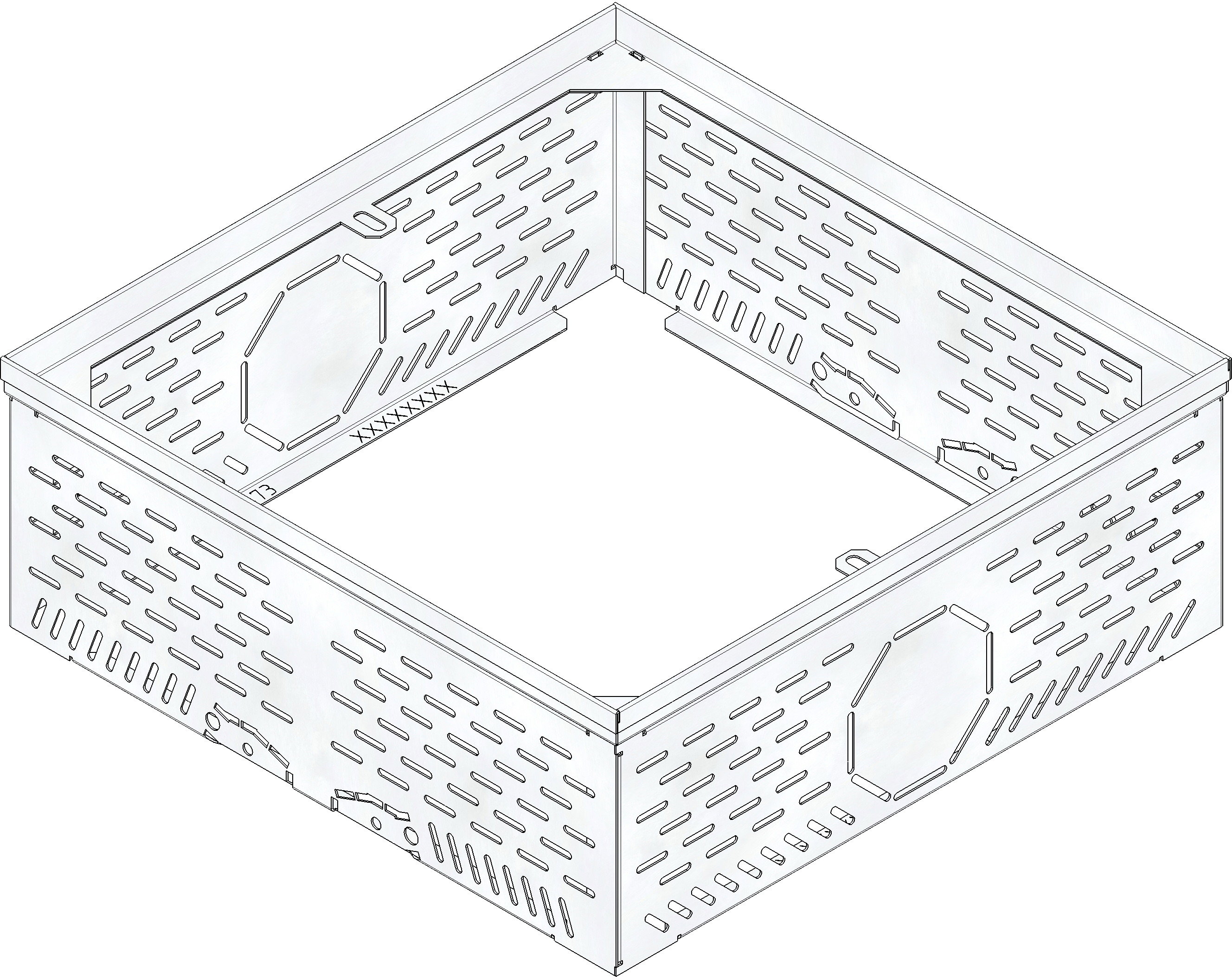

Product image

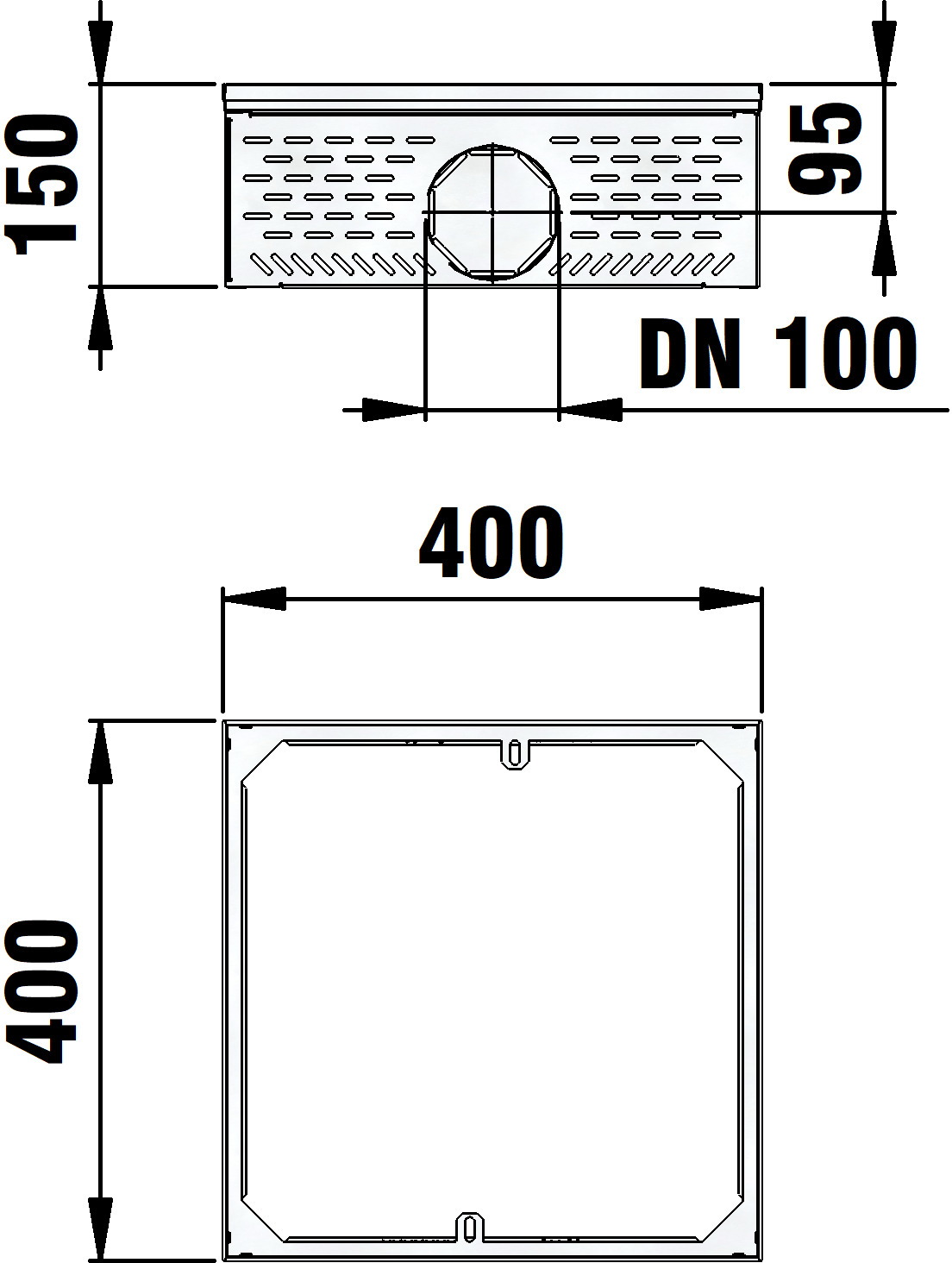

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
65473
Length
400 mm
Width
400 mm
Height
150 mm
Weight
2.14 kg
Material
Stainless steel 1.4301
Height of angle housing
-
Internal channel cross-section
-
Fall
-
Type according to DIN EN 1433
M
Channel material
Stainless steel 1.4301
Sales text
Extension frame element 40/40 type 150 as inspection shaft of installation height 150 mm, stainless steel, cl. A 15, DACHFIX POINT inspection shaft 40/40 type 150
Product description
DACHFIX POINT Gully 40/40 type 150, made of stainless steel CNS 1.4301, also for maintenance purposes above a flat roof drain, with connection possibility for cross-intersection channel, load class A 15, LxWxH 400x400x150 mm, item no. 65473
Packaging unit
30
Tender Texts
Installation instructions
